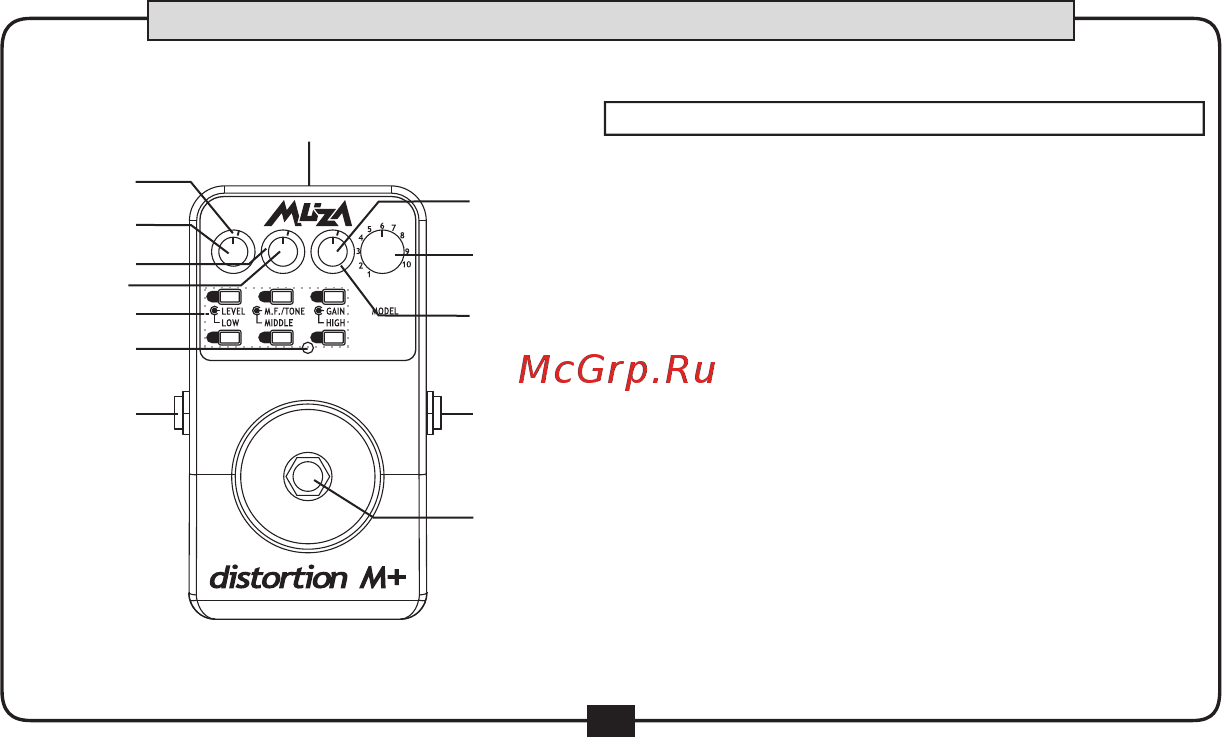

Knob/Jack Setting
1.INPUT Jack:
Connect your guitar to this jack. Connect a
guitar cable to this jack for power supply when
using a battery.
2.OUTPUT Jack:
Connect this output jack to your guitar amplifier.
3.POWER Jack
Plug the 9V power adaptor into this jack.
:
4.FOOTSWITCH
Press the switch to turn the effect on and off
for patch memory selection.
:
5.ON/OFF LED
Indicates the on/off status of the unit.
:
