www.timberk.com • electrical storage water heater

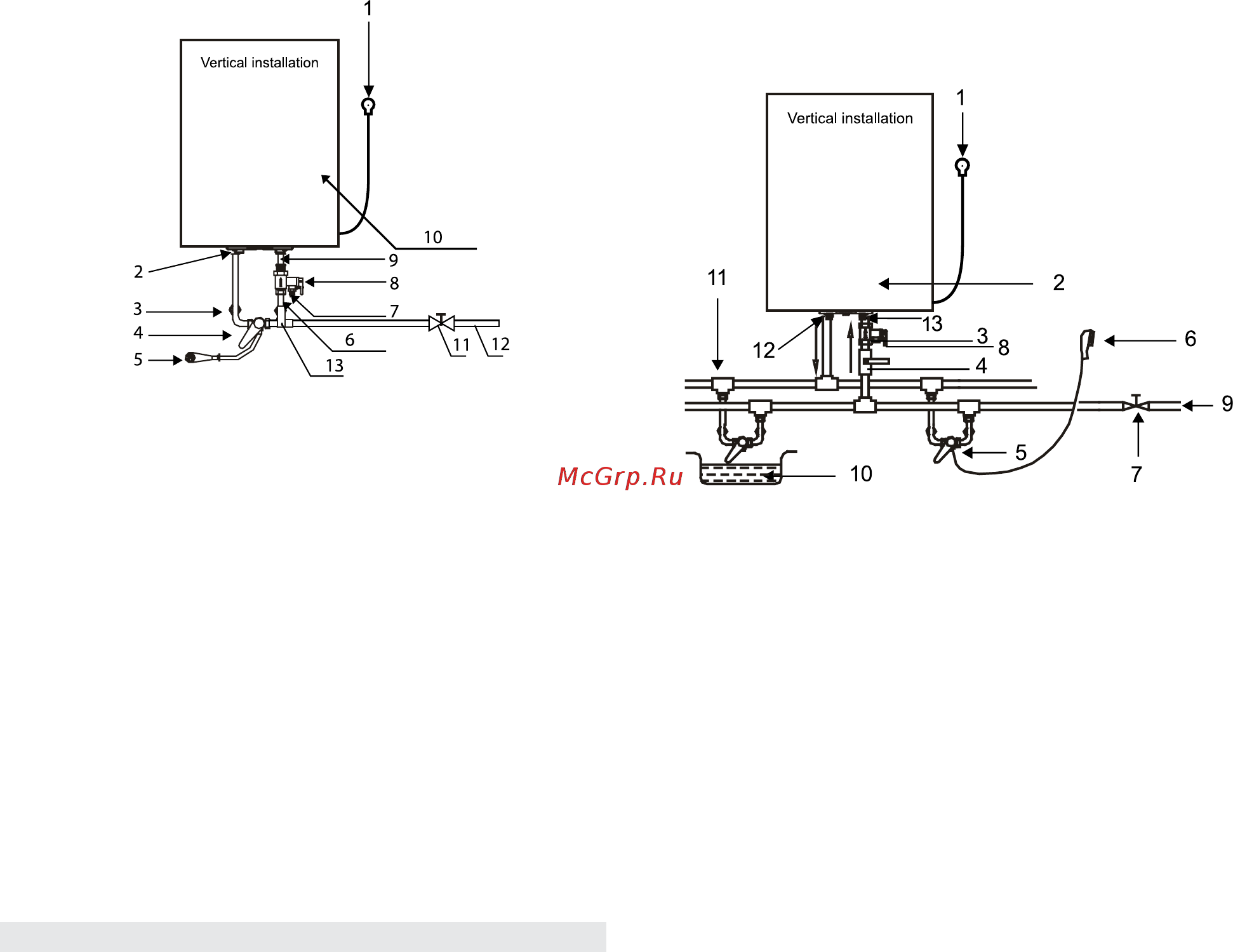

1.Power cord with a plug

2.Magnesium anode – water discharge nozzle

3.Water outlet

4.Hot water supply adjustment tap*

5.Mixer*

6.Shower header*

7.Cold water supply adjustment tap*

8.Pressure relieving opening

9.Check relief valve

10.Water inlet

11.Water heater

12.Water main shut-off valve*

13.Water main

14.T-bend*

*Does not included in the scope of delivery

Fig. 5

Water heater mounting methods

Fig. 6 shows the way to mount the water heater for several consumption

points (for SWH RED3 ... V).

1.Power cord with a plug

2.Water heater

3.Check relief valve

4.Cold water supply valve*

5.Mixer*

6.Shower header*

7.Water main shut-off valve*

8.Pressure relieving opening

9.Water main

10.Bath tub*

11.T-bend*

12.Water outlet

13.Water inlet

Fig. 6
