www.timberk.com • electrical storage water heater

Technical characteristics

Technical characteristics of water heaters are given below in Table 1.

Table 1

5. The water heater is equipped with an anode bar to protect the internal

tank from corrosion and decrease scale generation on the heating element.

6.Internal thickened urethane foam insulation allows to efficiently preserve

temperature of the heated water and minimize heat losses, reducing power

consumption of the water heater.

7. The water heater has simple structure and is convenient in service.

Description Units SWH RED3 50 V SWH RED3 80 V

SWH RED3

100 V

Power supply V/Hz 220~/50 220~/50 220~/50

Rated current A 6,8 6,8 6,8

Nominal power consumption W 1500 1500 1500

Tank capacity L 50 80 100

Rated pressure Mpa 0,75 0,75 0,75

Water protection – IPX4 IPX4 IPX4

Electrical protection class I I I

Heating time, at Δ 30 ºC min 40 68 80

Appliance dimensions (WxHxD) mm Ø390х645 Ø400×775 Ø440×925

Net weight kg 15,1 22,0 26,0

Factual year energy

consumption

kW•h 405,15 525,6 631,45

Constant daily heating loss kW•h / day 1,15 1,49 1,76

Capacity, l A B C D E F G

SWH RED3 50 V 50 100 112 250 160 84 580

Ø390

SWH RED3 80 V 80 100 137 300 173 84 710

Ø400

SWH RED3 100 V 100 100 137 450 173 84 860

Ø440

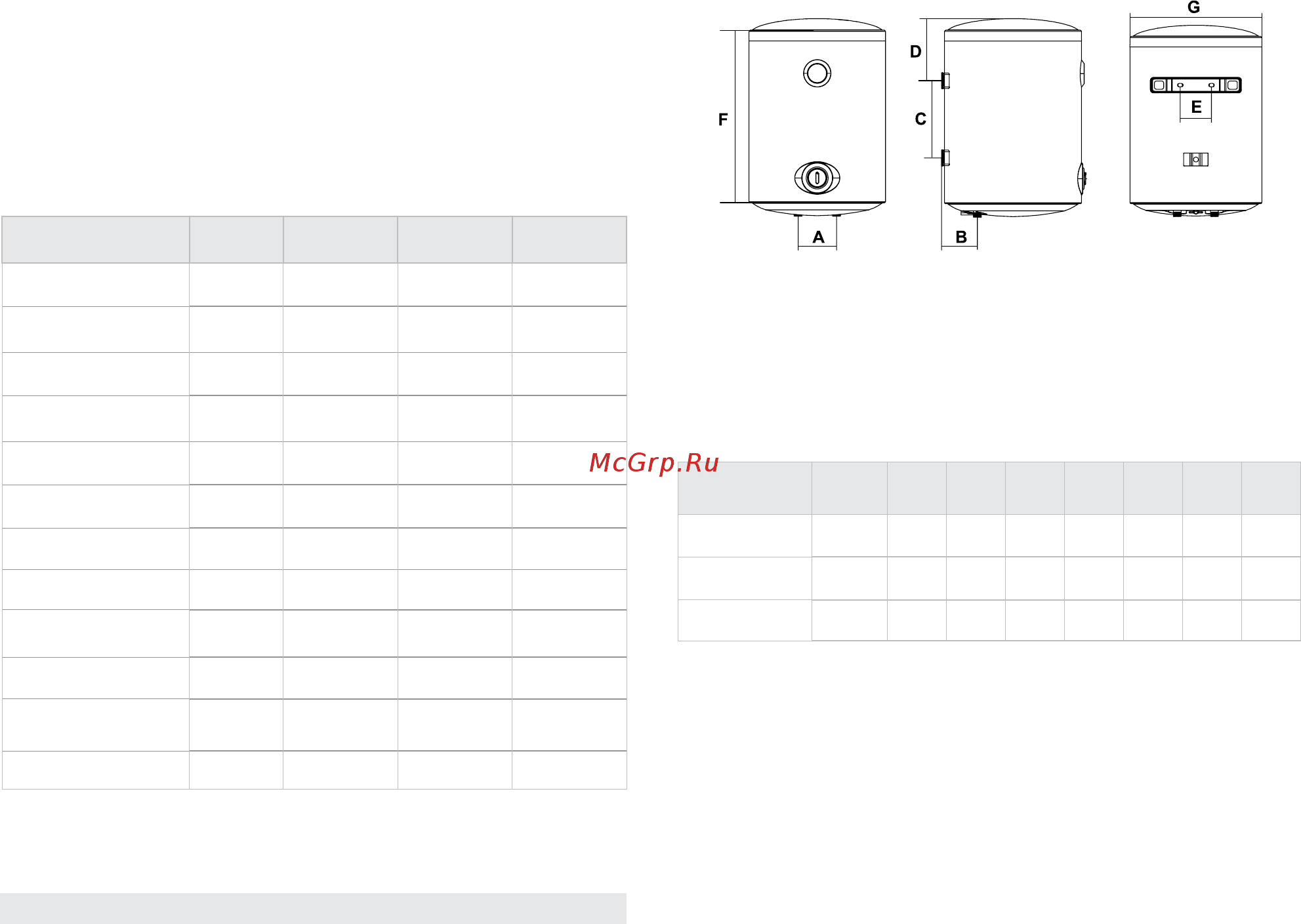

Dimensions

Dimensions of water heaters (mm) are made in accordance with fig. 1, fig.

2 and fig. 3.

Table 2

Fig. 1 Fig. 2 Fig. 3
