Water heater mounting

NOTE:

Please, use accessories, provided by the

manufacturer, to install the water heater. Electric

water heater must not be mounted on a wall prior

you make sure that the bracket is installed firmly and

securely. Otherwise the electric water heater may fall

down from the wall, which may cause its damage and

even serious accidents involving bodily injury. When

determining points for bolt holes, it is necessary to

provision some spare space between the lower part

of the water heater and the floor not less than 0.6

m, to make it convenient to perform maintenance if

necessary.

NOTE:

In places or on the wall, where there may be a water

contact, the power outlet installation height must be

not less than 1.8 m.

Connection to water main

1. The heater must be connected to water main with at least 0.1 MPa

pressure; maximum pressure is 0.75 MPa.

1. The electric water heater must be mounted on a solid wall. If wall strength

doesn’t allow to bear the double weight of the total water heater weight

fully filled with water, then it should be mounted on a special support.

2. After you chose the proper place to install the water heater, determine

points for holes for anchor hook bolts (to be determined in accordance

with the data sheet for the appliance you chose). Drill two holes of the

corresponding depth in the wall using a drill, dimensionally fit for anchor

bolts, enclosed with the water heater.

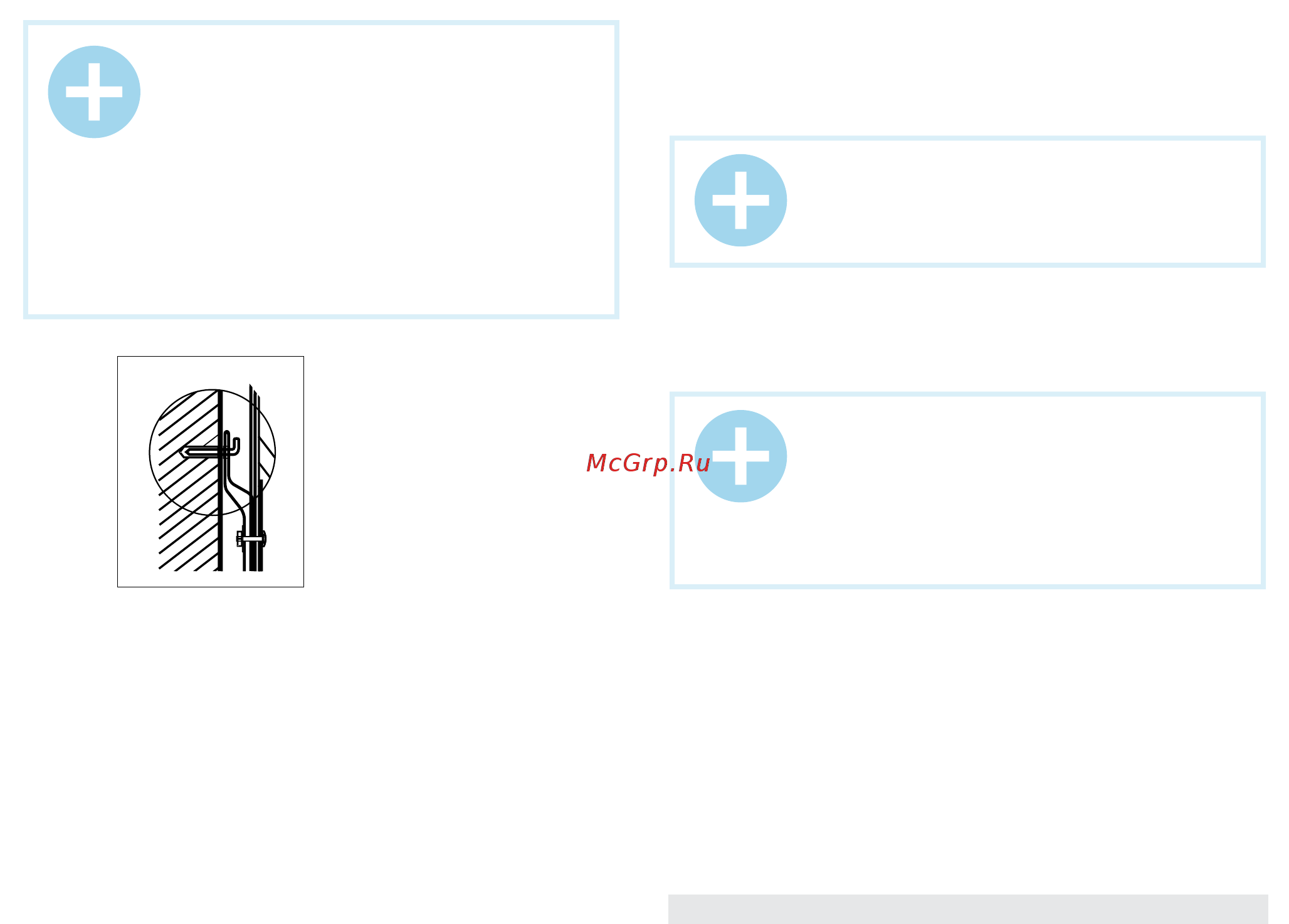

Fig. 7

Then insert bolts into the drilled holes, and, turning bolt hooks clockwise,

securely tighten bolt nuts, then hang the water heater on these anchor bolt

hooks (see Fig. 7).

3. Fix a power outlet to the wall. Requirements to the outlet are as follows:

220V/10A, single-phase, three-wired. It is recommended to place the

outlet on the right side above the water heater.

NOTE:

The water heater is an appliance, operating in such

a manner that pressure of water in the water heater

corresponds to the pressure of water in water main.

If pressure in the main exceeds 0.75 MPa, then it is

necessary to mount a pressure reducer before the water

heater so that pressure doesn’t exceed 0.75 MPa.

2. G1/2 diameter pipes are used to connect the water heater to the water

pipeline.

3. To prevent a leakage when connecting pipes, use rubber sealing gaskets

on the threaded pipe ends.

4. Screw a relief valve to the inlet nozzle, marked blue and embossed arrow

of the water flow direction, so that the water flow direction coincides with

direction of the arrow on the valve’s case.
