Timberk swh ms2 10 hu Инструкция по эксплуатации онлайн [6/32] 201180
![Timberk swh ms2 10 hu Инструкция по эксплуатации онлайн [6/32] 201180](/views2/1239625/page6/bg6.png)

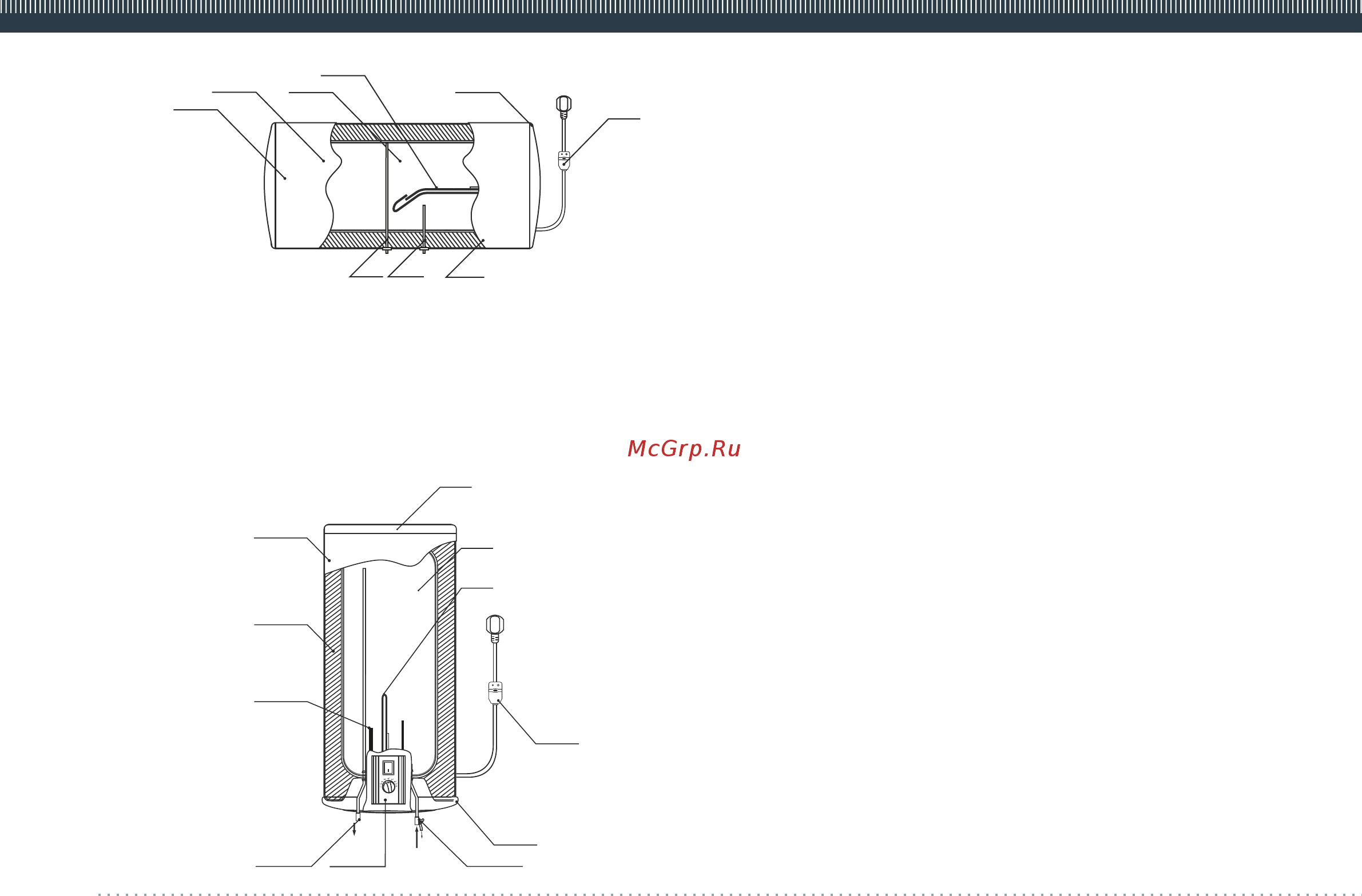

Fig. 6
1
2 3
5
6
78
9
4
S2 series (Fig.6)
1 left composite protective cover
2 external case
3 inner tank
4 heating element
5 right composite protective cover
6 power cable with GFCI
7 urethane foam heat insulation layer
8 inlet nozzle
9 hot water outlet nozzle
RS1/RS7 series (Fig.7)
1 upper composite protective cover
2 inner tank
3 heating element
4 power cable with GFCI
5 lower composite protective cover
6 inlet nozzle
7 control panel
8 hot water outlet nozzle
9 protective magnesium anode
10 urethane foam heat insulation layer
11 external case
Fig. 7
outlet
inlet
1
2
3
4
5
6
7
8
9
10
11
6. WATER HEATER INSTALLATION
Location
1. Electric water heater should be mounted on a firm wall.
2. The wall, where the electric water heater is to be mounted, must
withstand at least the double weight of the water heater, fully filled with
water; there must be no cracks and other damages on the wall. Otherwise
it is necessary to take measures to strengthen the mounting or mount the
water heater on a special support.
3. If a bathroom is too small, the water heater can be installed elsewhere,
unexposed to direct sunlight and unavailable for moisture. However, to
reduce heat losses in pipelines, the location, where a water heater is to be
installed, must be as close to the place, where hot water is used, as
possible.
5. SCOPE OF DELIVERY
1. Water heater 1 pc.
2. Anchor bolt 2 pcs.*
3. Securing plate 1 pc.**
4. Pressure safety valve 1 pc.
5. Discharge pipe 1 pc.
6. Operation manual 1 pc.
7. Guarantee card 1 pc.
8. Packing 1 pc.
* only for RS1/RS2/RS7 series
** only for MS2 series
6
www.timberk. electrical storage water heatercom
