www.timberk.com • electrical storage water heater

Capacity, l A B C D E F G H

SWH FSM1/ SWH

FSQ1 series

30 ? ? 280 235.9 432.9 13.5

72.3 -

50 ? ? 450 235.9 432.9 13.5

72.3 -

80 ? ? 500 273.2 492.2 13.5

103.2 -

100 ? ? 650 273.2 492.2 13.5

103.2 -

Capacity, l A B C D E F G H

SWH FSM2/ SWH

FSQ2 series

30 ? 253,9 280 235.9 432.9 451,5 13.5 117,95

50 ? 253,9 280 235.9 432.9 451,5 13.5 117,95

80 ? 291,2 500 273.2 492.2 508 13.5 136,6

100 ? 291,2 650 273.2 492.2 508 13.5 136,6

Dimensions

IMPORTANT!

Technical characteristics of the water heater you

purchased as of the date of manufacture correspond to

data, specified in the table. Technical characteristics and

scope of delivery can be revised without any prior notice.

5. WATER HEATER DESCRIPTION

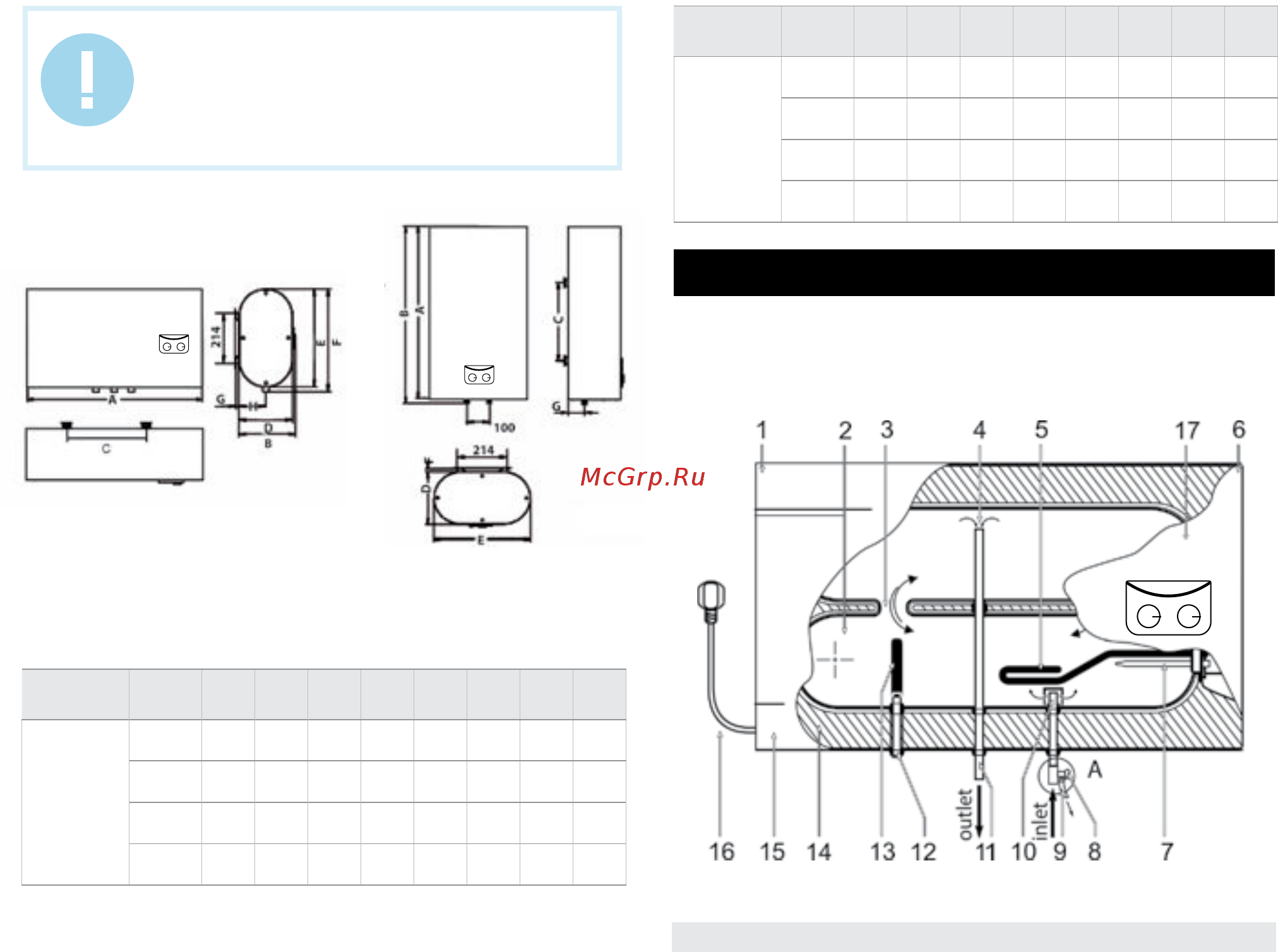

Fig.3 shows the design of the horizontal-type water heater.

Example is FSM/FSQ.

FSM2/FSQ2 series

Fig. 3

Dimensions of water heaters (mm) are made in accordance with fig. 1, fig.

2 and fig. 3.

Table 3

Fig. 1 Fig. 2

Series FSM1/FSQ1

Series FSM2/FSQ2
