7. WATER HEATER INSTALLATION

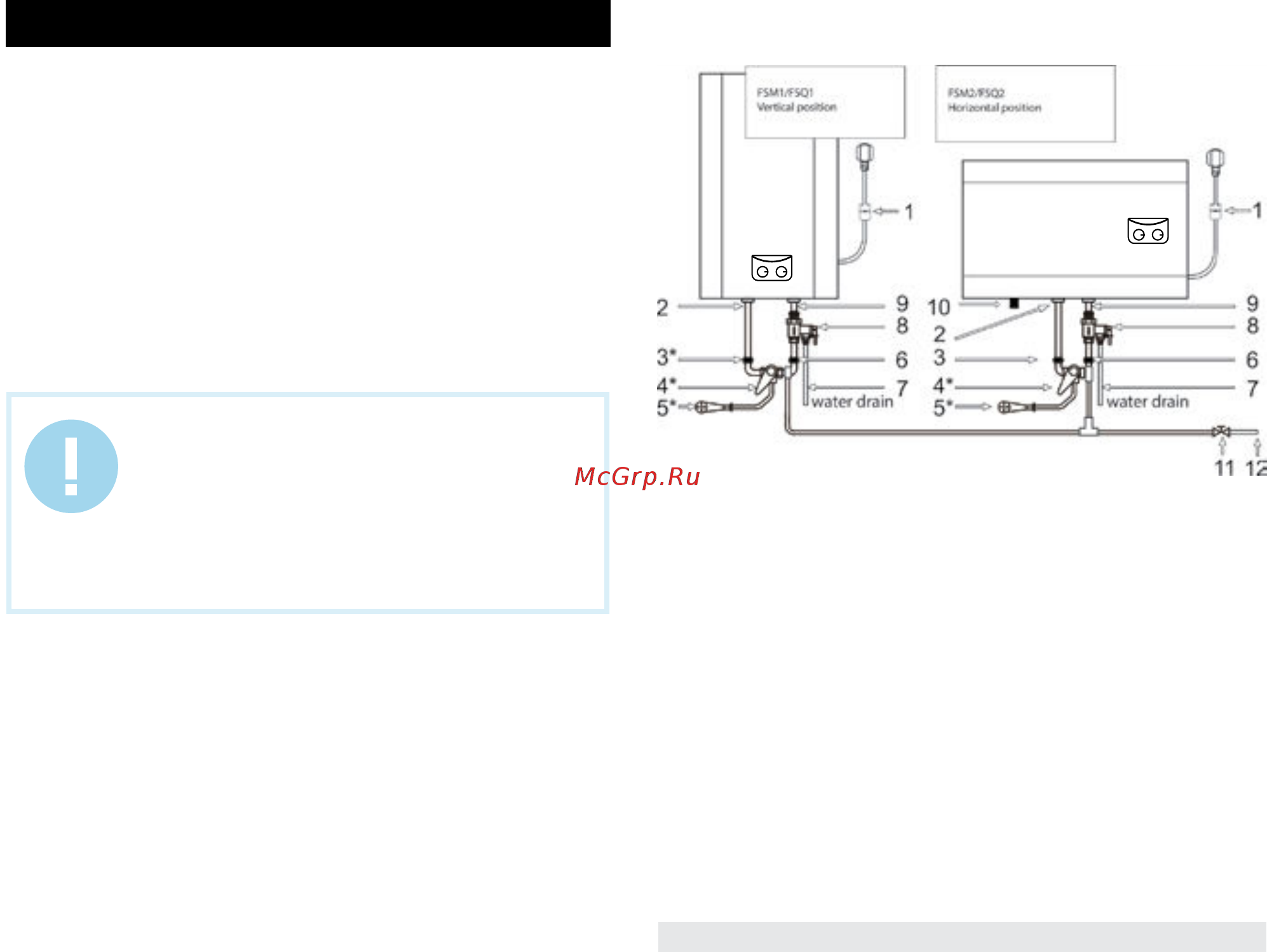

1. Power cord with GFCI**

2. Water outlet

3. Hot water supply adjustment cock*

4. Mixer*

5. Shower header*

6. Cold water supply adjustment cock*

7. Discharge pipe

8. Composite pressure-relief valve

9. Water inlet

10. Magnesium anode – water discharge nozzle

11. Water main shut-off valve

12. Water main

* not included in the delivery set

** Depending on the product batch, GFCI can be located not within the power cable electric

plug.

Water heater mounting methods

Fig.5 shows the way to mount the water heater for one consumption point.

Location

1. Electric water heater should be mounted on a firm wall. If the wall is not

robust enough to hold the weight equal to the doubled weight of the total

water heater weight, fully filled with water, then it should be mounted on a

special support.

2. The wall, where the electric water heater is to be mounted, must withstand

at least the double weight of the water heater, fully filled with water; there

must be no cracks and other damages on the wall. Otherwise it is necessary

to take measures to strengthen the mounting or mount the water heater on

a special support.

3. If a bathroom is too small, the water heater can be installed elsewhere,

unexposed to direct sunlight and unavailable for moisture. However, to

reduce heat losses in pipelines, the location, where a water heater is to be

installed, must be as close to the place, where hot water is used, as possible.

IMPORTANT!

The water heater must be mounted on a vertical wall

only the position, specified in Fig.3-4 (FSM1/FSQ1 line

– vertically, FSM2/FSQ2 – horizontally). Mounting of the

appliance in any other position or vertical or horizontal

tilting will inevitably result in failure of the water heater,

emergency situation and is considered a non-guarantee

case by the manufacturer.

Fig. 5
