www.timberk.com • electrical storage water heaterwww.timberk.com • electrical storage water heater
5
4
Technical characteristics
Technical characteristics of water heaters are given below in Table 1, 2.
Table 1
Table 2
insulation that allows to efficiently retain accumulated heat and save energy.
5. Temperature controller: accurate and reliable water temperature control.
6. Internal tanks and all internal components are made out of SUS 304 stain-
less steel with walls 1.2 mm thick.
7. The water heater is equipped with an anode bar to protect the internal
tank from corrosion and decrease scale generation on the heating element.
Description Units
SWH FSM5 30 V/
SWH FSM6 30 H
SWH FSM5 50 V/
SWH FSM6 50 H
SWH FSM5 80 V/
SWH FSM6 80 H
SWH FSM5 100 V/
SWH FSM6 100 H
Rated voltage V/Hz ~220-230/50 ~220-230/50 ~220-230/50 ~220-230/50
Rated current A 8.7 8.7 8.7 8.7
Rated power W 2000 2000 2000 2000
Stage power W 800/1200/2000 800/1200/2000 800/1200/2000 800/1200/2000
Tank capacity L 30 50 80 100
Rated
pressure
Mpa 0,7 0,7 0,7 0,7
Water
protection
class
– IPX4 IPX4 IPX4 IPX4
Heating time,
at Δ 30 ºC
min 28 46 73 80
Appliance
dimensions
mm 550x435x238 855x435x238 991x493x270 1190x493x270
Weight kg 9,8 13,4 18,9 23,4
Description Units
SWH FSM3 30 V/
SWH FSM4 30 H
SWH FSM3 50 V/
SWH FSM4 50 H
SWH FSM3 80 V/
SWH FSM4 80 H
SWH FSM3 100 V/
SWH FSM4 100 H
Rated voltage V/Hz ~220-230/50 ~220-230/50 ~220-230/50 ~220-230/50
Rated current A 8.7 8.7 8.7 8.7
Rated power W 2000 2000 2000 2000
Stage power W 800/1200/2000 800/1200/2000 800/1200/2000 800/1200/2000
Tank capacity L 30 50 80 100
Rated
pressure
Mpa 0,7 0,7 0,7 0,7
Water
protection
class
– IPX4 IPX4 IPX4 IPX4
Heating time,
at Δ 30 ºC
min 28 46 73 80
Appliance
dimensions
mm 550x435x238 855x435x238 991x493x270 1190x493x270
Weight kg 9,8 13,4 18,9 23,4
Factual year
energy
consumption
kW•h 335,8 452,6 481,8 518,3
Constant daily
heating loss
kW•h /
day
0,98 1,23 1,33 1,45
Capacity, l A B C D E F G H
SWH FSM5/
SWH FSM3 series
30 550 570 240 238 435 20
73 -
50 855 875 500 238 435 20
73 -
80 991 1011 450 270 493 20
91,5 -
100 1190 1210 550 270 493 20
91,5 -
Capacity, l A B C D E F G H
SWH FSM6/
SWH FSM4 series
30 550 266 240 238 435 450 20 73
50 855 266 500 238 435 450 20 73
80 991 298 450 270 493 510 20 91,5
100 1190 298 550 270 493 510 20 91,5
Dimensions
Description Units
SWH FSM5 30 V/
SWH FSM6 30 H
SWH FSM5 50 V/
SWH FSM6 50 H
SWH FSM5 80 V/
SWH FSM6 80 H
SWH FSM5 100 V/
SWH FSM6 100 H
Factual year
energy
consumption
kW•h 335,8 452,6 481,8 518,3
Constant daily
heating loss
kW•h /
day
0,98 1,23 1,33 1,45
IMPORTANT!
Technical characteristics of the water heater you
purchased as of the date of manufacture correspond to
data, specified in the table. Technical characteristics and
scope of delivery can be revised without any prior notice.
5. WATER HEATER DESCRIPTION

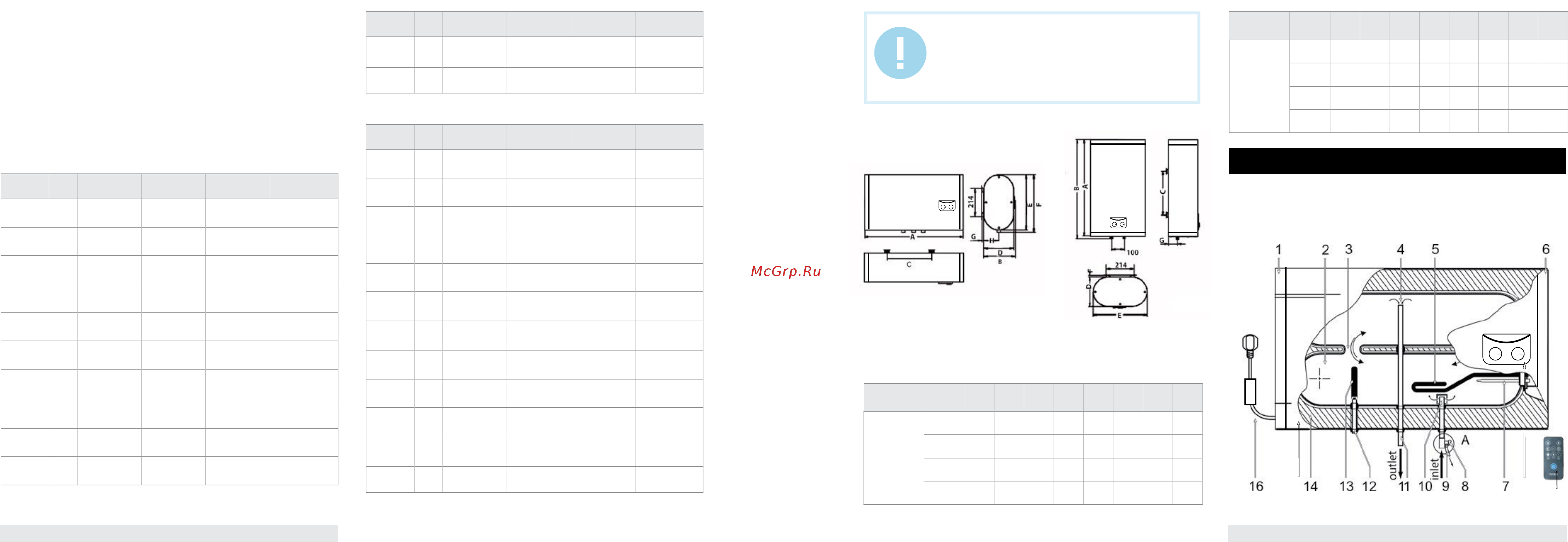

Fig.3 shows the design of the horizontal-type water heater.
Example is FSM6/FSM4.
FSM6/FSM4 series
Fig. 3
Dimensions of water heaters (mm) are made in accordance with fig. 1, fig.
2 and fig. 3.
Table 3
Fig. 1 Fig. 2
Series FSM5/FSM3
Series FSM6/FSM4
15
18
17
