www.timberk.com  electric instant water heater

5. PACKAGE CONTENTS

1. Water heater  1 pc.

2. Mounting fittings  1 pc.

3. Operational Manual  1 pc.

4. Warranty card  1 pc.

5. Packing  1 pc.

6. INSTALLATION OF WATER HEATER

Location

1. Water heater can be installed in any place provided that the indoor

temperature is not lower than 0°.

2. Water heater is installed at the flat wall surface in strict parallel to the

floor with outlet nozzles in downward direction; it shall be installed

at a place where water and splashes cannot get onto its housing.

3. When water heater location is being defined, free access to it shall be

assured, not less than 0.3 m from the top, bottom and sides. It will

provide for the maximum convenient servicing and regulation of

water heater if required.

4. Water heater shall be installed in such a way that a distance from the

bottom part of the device to the floor does not exceed 1.6 m.

Mounting of Water Heater

WATERMASTER I Series. Water Heater Models: WHE 3.5 XTR H1, WHE 4.5

XTR 1, WHE 5.5 XTR H1

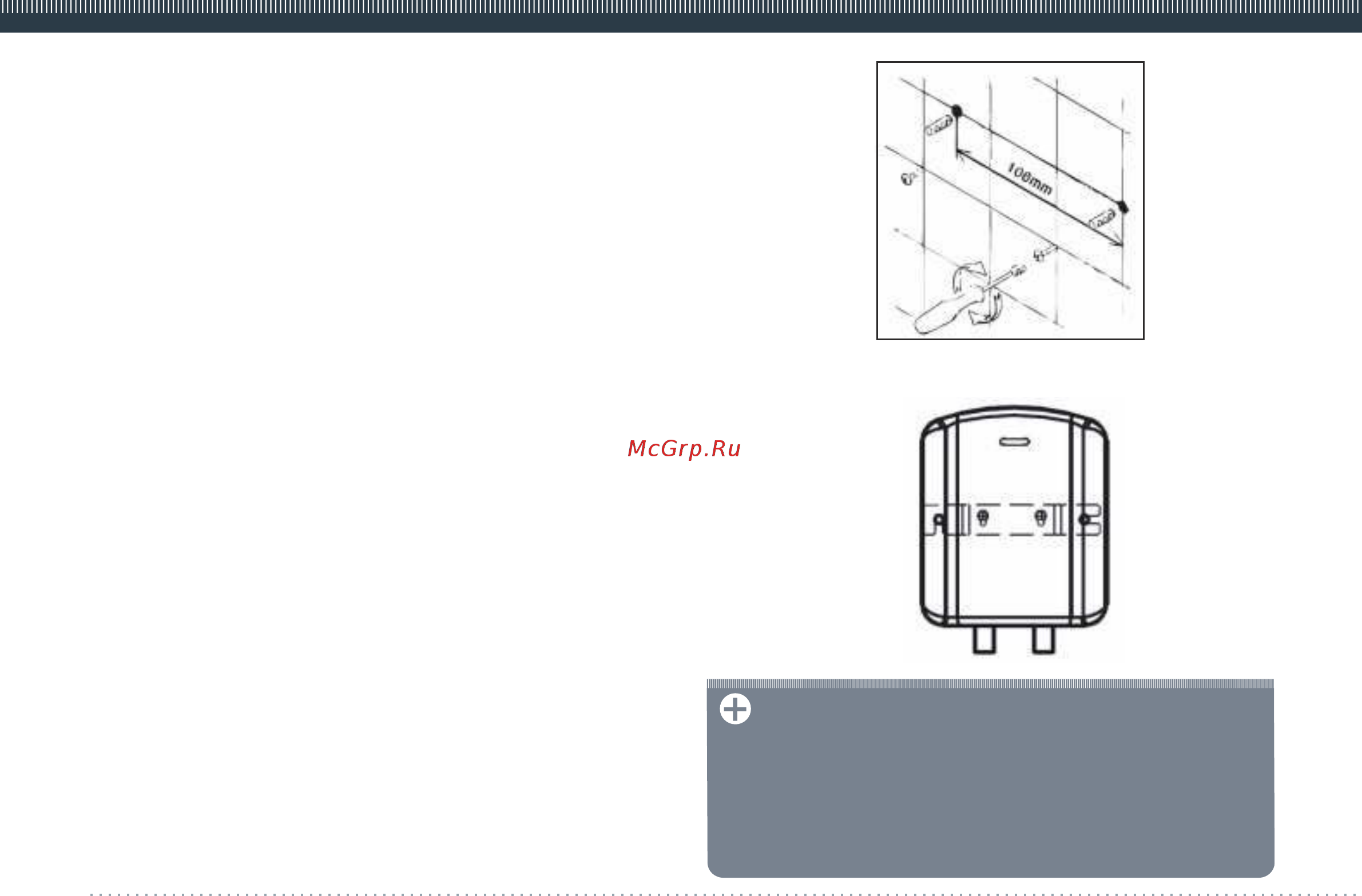

As shown in Figure 7, identify the points for openings and drill 2

openings of the corresponding depth in the wall, insert dowels, screw

up the screws, and make sure that there is a certain distance between

the screw head and the wall, then hang the water heater on the screws

(see Fig.8) and check the reliability of fixing.

Fig. 7

Fig. 8

NOTE:

Water heater installation at the place of its operation and electric

power connections shall be performed by the specialized organiza-

tion, a representative of the manufacturer's maintenance service or

experts licensed for execution of electric equipment assembling with

safety regulations observed.

In the event of violation of water heater operation manual, water

heater is not subject to warranty servicing, and the manufacturer

cannot be held liable.
