ENGLISH

www.timberk.com  e instant water heaterlectric

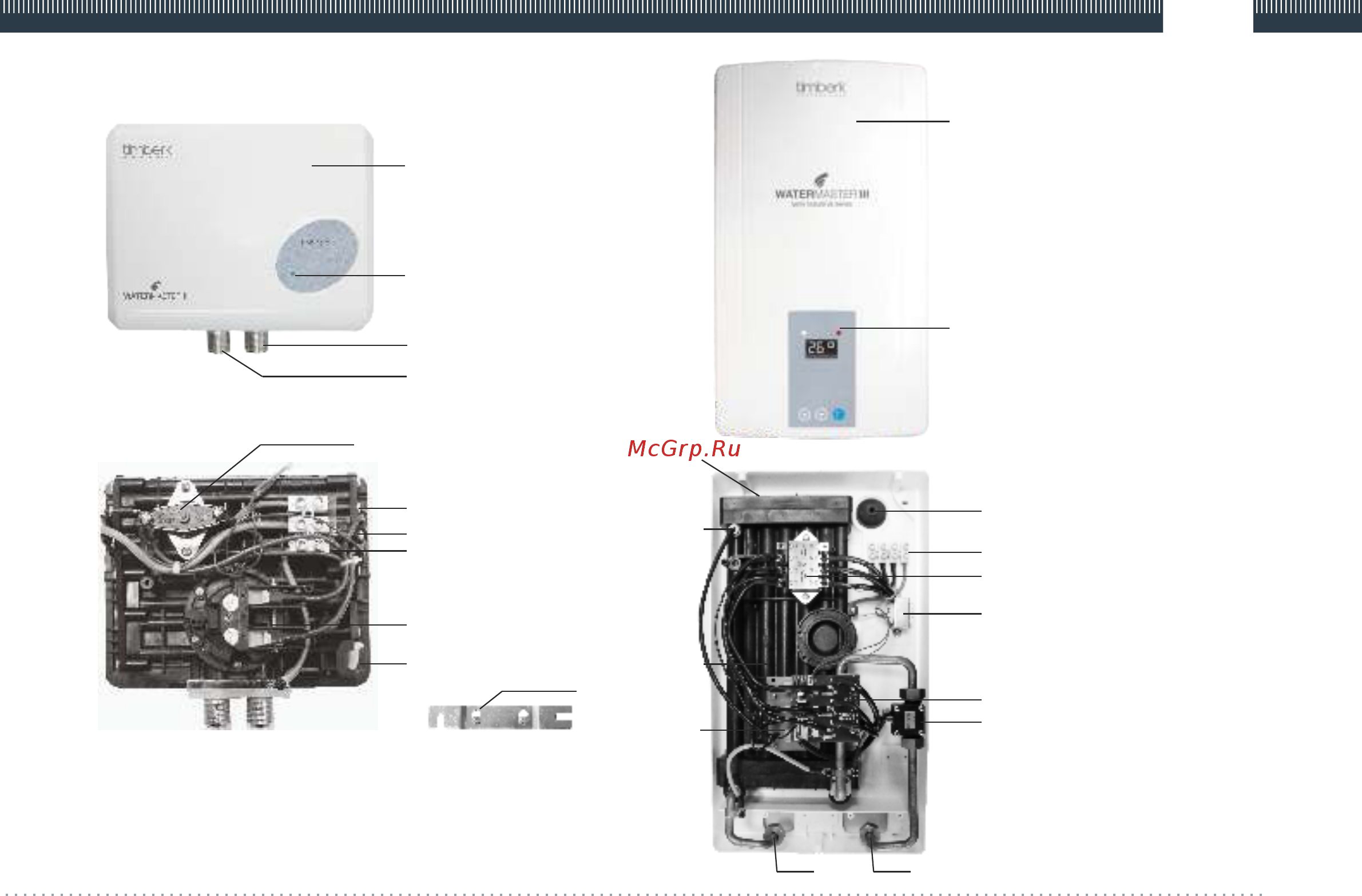

The design of WATERMASTER II Series water heater is given in Figure 3, 4.

Fig. 3

1. Front panel

2. Indicating lamp

3. Inlet nozzle

4. Outlet nozzle

5. Temperature switch

6. Spiral heating element

7. Heating flask

8. Junction block

9. Hydraulic flow sensor

10. Inlet opening for electric

cable

11. Wall mounting bracket

The design of WATERMASTER III Series water heater is given in Figure 5, 6.

Fig. 5

1. Front panel

2. Control panel

3. Inlet nozzle

4. Outlet nozzle

5. Electronic flow sensor

6. Power board 1

7. Power board 2

8. Temperature switch and

pressure sensor

9. Spiral heating element

10. Heating flask

11. Junction block

12. Electronic temperature

sensor

13. Inlet opening for

electric cable

14. Transformer

Fig. 4

Fig. 6
