Intended Use / Unpacking Your Tool / Before Use

INTENDED USE

UNPACKING YOUR TOOL

SuperJaws is a portable work holder which clamps a variety of

workpieces for a multitude of different applications.

• Carefully unpack and inspect your tool. Familiarise yourself with

all its features and functions

• Ensure that all parts of the tool are present and in good

condition. If any parts are missing or damaged, have such parts

replaced before attempting to use this tool

BEFORE USE

SETTING UP

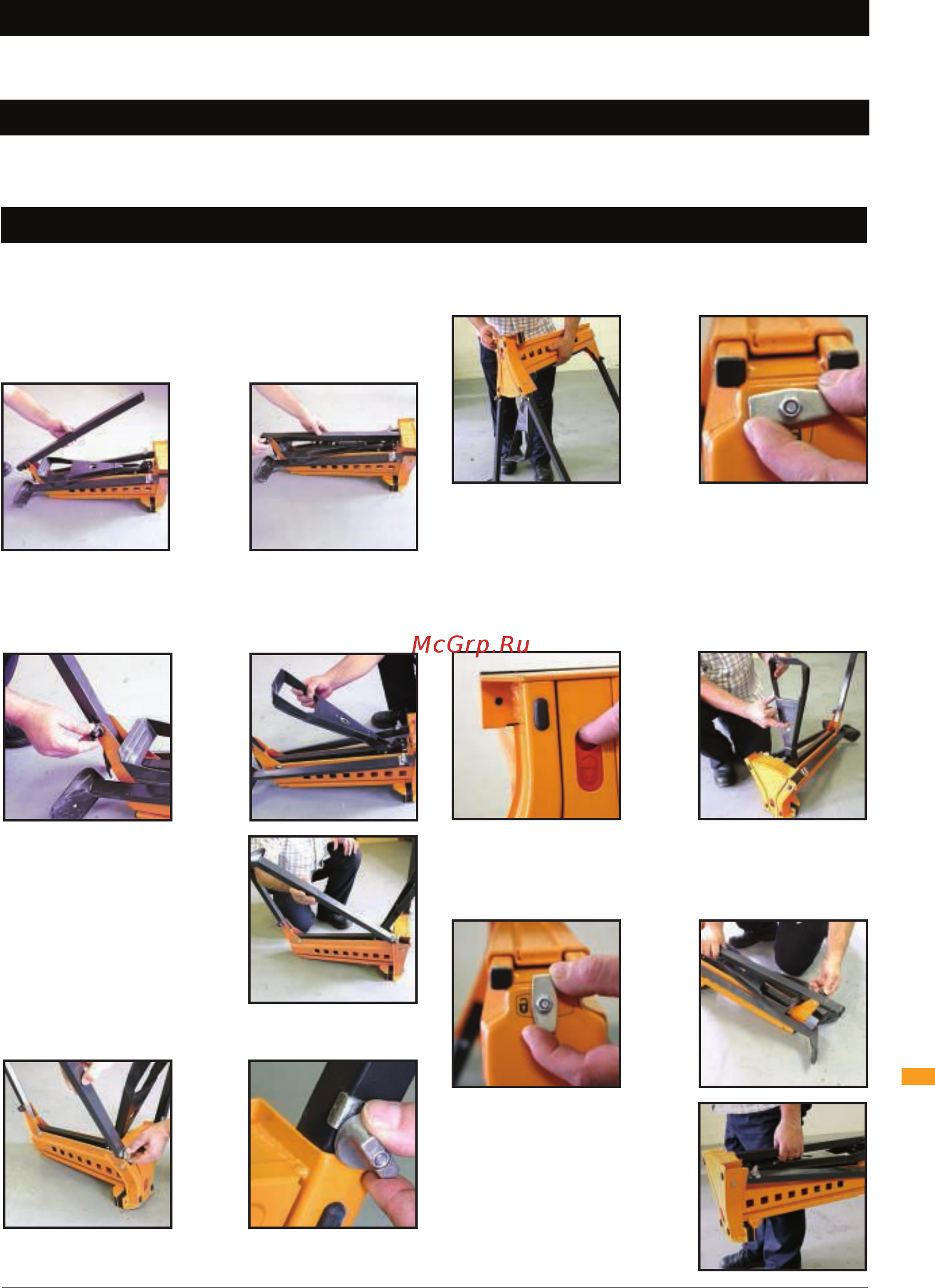

1. With SuperJaws placed upside down on the ground, loosen the

Rear Leg Locking Knob (5) and slide the Rear Leg (6) from its

storage position

• Pivot the Rear Leg just clear of the front face

• Slide it all the way forward then lift and slide it fully into its

housing at the rear, then tighten the knob

2. Raise the Foot Pedal (8) until it ‘clicks’ into position

3. Pivot the Front Legs (9) out as far

as they will go, then turn the Front

Leg Locking Knobs (11) clockwise;

until the rounded section of the

knob tightens onto the leg housing,

as shown

• Several turns may be necessary

on initial set-up, until the clamps

tighten into place. A half turn is all

that is required to release the legs

when folding

4. Turn the SuperJaws upright and recheck all legs are locked

ﬁrmly in position

5. Rotate the Moving Jaw Locking Tab (3) to the horizontal

position. SuperJaws is now ready for use

FOLDING

• Folding is the reverse procedure of the steps described above.

Ensure that:

• The Lock / Release Switch (13) is in the ‘unlock’ position

• The Foot Pedal Locking Latch (10) is used to release and fold

the Foot Pedal (8)

• The Moving Jaw Locking Tab (3) is in the ‘vertical’ position to

prevent the jaw from sliding out

• The Rear Leg (6) is engaged fully into its housing, and the Rear

Leg Locking Knob (5) is tightened ﬁrmly

•

• When in its folded position, the

Rear Leg becomes a carrying

handle, for easy transportation
