Echo SRM-22GES Деталировка онлайн

Содержание

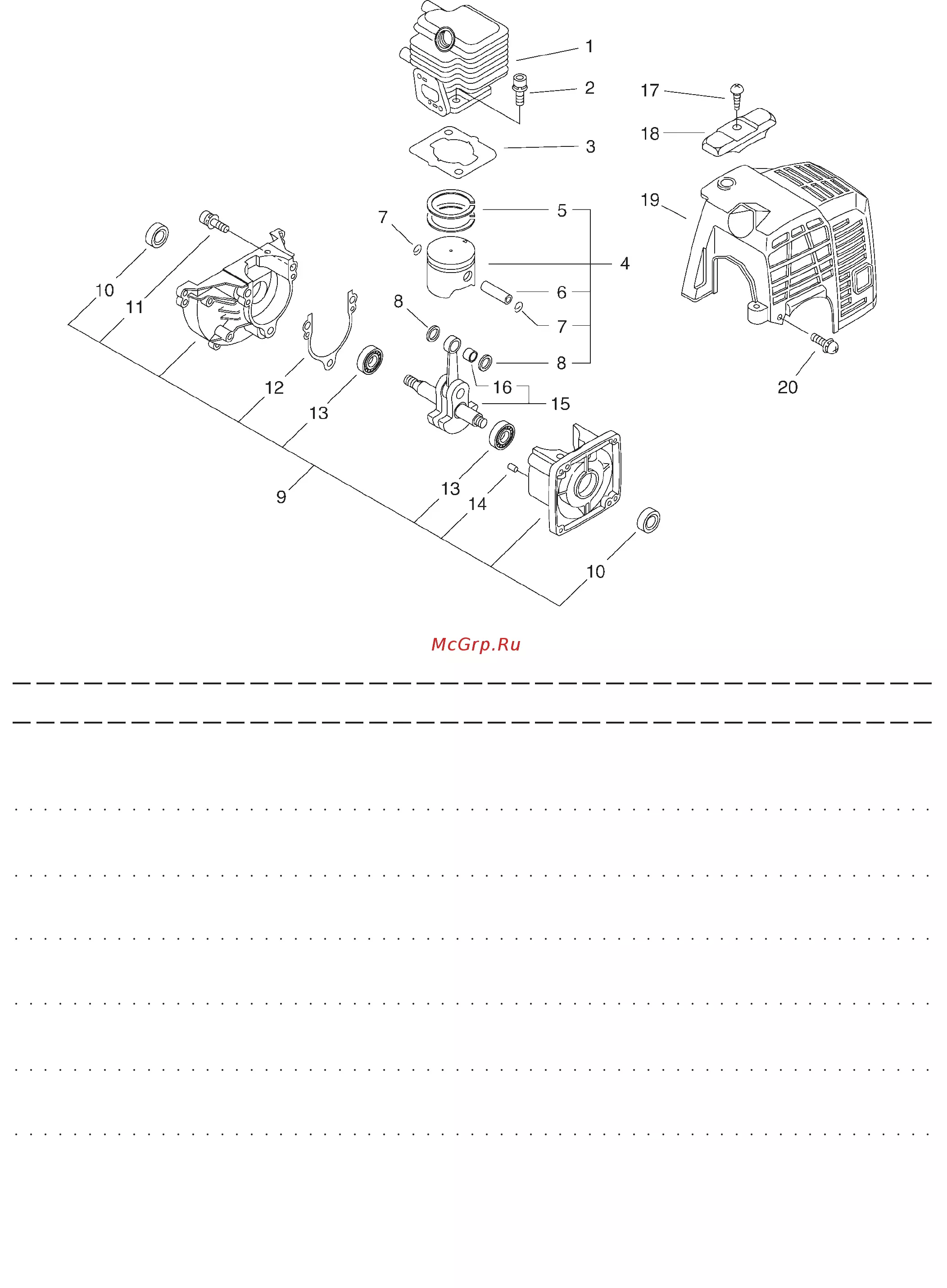

• Srm 22ges 1 cylinder crankcase piston p.2
• A130 000021 1 cylinder 2 900162 05022 2 bolt h s 5 22 3 101010 44332 1 gasket cyl base 4 p021 009950 1 piston kit 5 a101 000000 2 ring piston 6 100013 11520 1 pin piston 7 100015 04630 2 circlip piston pin 8 v306 000150 2 washer circular 8 9 100204 52132 1 crankcase kit 10 100212 42031 2 oilseal 11 900162 05028 3 bolt h s 5 28 12 100242 42030 1 gasket crankcase 13 94035 36201 2 bearing ball 14 100215 03930 2 pin dowel 15 a011 000002 1 crankshaft asm 16 v553 000010 1 bearing needle 8 17 900253 05020 1 screw 5 20 18 a162 000060 1 guard top 19 a160 000630 1 cover cylinder 20 900238 04016 2 screw 4 16 p.2
• Key lv part number q ty description remarks p.2
• Srm 22ges 2 magneto clutch fan cover p.3
• 159010 10230 1 plug spark bpmr 7a 2 159011 03432 1 coil spark plug 3 159012 03433 1 cap spark plug 4 156112 40630 1 grommet 5 156601 52130 1 coil ignition 6 900162 04022 2 bolt h s 4 22 7 162010 52830 1 lead ground 8 660316 55630 1 clip 9 v315 000030 1 washer circular 30 10 610922 55931 1 holder main pipe 11 91118 05028 1 bolt 12 x547 000570 1 label echo 13 a172 000340 1 cover fan 14 91363 04016 4 screw 15 175313 20430 1 ring felt 16 175005 44331 1 drum clutch 17 175000 56830 1 clutch assy 18 a409 000000 1 rotor magneto p.3
• Key lv part number q ty description remarks p.3
• Srm 22ges 3 starter p.4
• Key lv part number q ty description remarks p.4
• A052 000180 1 pulley asm starter 2 p022 002100 2 e ring 3 p022 006510 2 spring return 4 p022 006850 2 pawl starter 5 a051 000740 1 starter recoil 6 177236 61830 1 screw 7 p022 008280 1 plate cam 8 p022 008270 1 spring damper 9 p022 008260 1 rope 10 p022 006830 1 drum 11 177220 42030 1 spring rewind 12 177246 11120 1 clip starter rope 13 177228 27030 1 grip starter 14 177227 42030 1 guide rope 15 900238 04016 2 screw 4 16 16 x502 000330 1 label echo 17 x530 000210 1 label eye catcher p.4
• Srm 22ges 4 air cleaner carburetor muffler p.5
• V103 000240 1 gasket intake 2 900500 00005 2 nut 5 3 130017 44330 1 insulator 4 900238 05020 2 screw 5 20 5 v103 000250 1 gasket intake 6 a021 000550 1 carburetor diaphragm 7 900720 00015 1 o ring 15 8 a027 000010 1 cleaner asm air 9 130327 44330 2 sleeve 10 130310 44330 1 filter air 11 900242 05064 2 screw 5 64 12 900105 05055 2 bolt h s 5 55 13 900600 00005 2 washer 5 14 a300 000350 1 muffler exhaust 15 v104 000160 2 gasket exhaust 16 a320 000251 1 cover muffler p.5
• Key lv part number q ty description remarks p.5
• Srm 22ges 5 fuel tank p.6
• Key lv part number q ty description remarks p.6
• 131300 56430 1 valve check 2 130111 00530 1 clip 3 v471 001200 1 pipe 4 v471 001190 1 pipe 5 132717 50430 1 pipe 3 6 70 6 132115 46730 1 grommet fuel 7 132013 09820 1 clip 8 131205 07320 1 strainer fuel 9 131004 55830 1 cap assy fuel tank 10 131016 55830 1 gasket fuel cap 11 a350 000031 1 tank fuel 12 900243 05016 2 screw 5 16 p.6
• Srm 22ges 6 handle p.7
• 351102 47530 1 grip assy f handle 2 900246 03025 4 screw 3 25 3 900220 05030 1 screw 5 30 4 900500 00005 1 nut 5 5 178012 05960 1 lockout throttle 6 178013 35631 1 spring thr lock 7 178010 05960 1 control throttle 8 a440 000880 1 switch on off 9 890617 43130 1 label caution 10 610206 44730 1 housing assy d shft 11 610013 44730 1 shaft flexible 12 v475 001500 1 tube 13 v430 001980 1 cable bowden 14 351311 02330 1 grip handle 15 c400 000211 1 handle front 16 351301 22333 1 bracket asy handle 17 91118 05025 6 bolt 18 351313 22332 1 bracket handle u 19 351312 22331 1 bracket handle c 20 351314 22332 1 bracket handle l 21 301200 46830 1 hook lifting 22 224924 52130 2 clip 23 159112 09961 1 clip 24 890152 04930 1 label caution 25 301001 44731 1 harness shoulder p.7
• Key lv part number q ty description remarks p.7
• Srm 22ges 7 gear case shield blade tools p.8
• Key lv part number q ty description remarks p.8
• P021 013350 1 case gear 2 900706 00012 1 circlip 12 3 900702 00022 1 circlip 22 4 900858 06900 1 bearing ball 6900z 5 900855 06900 1 bearing ball 6900 6 610300 44830 1 gear set 7 900600 00005 2 washer 5 8 900100 05035 2 bolt 5 35 9 610434 50031 1 bolt 8 8 10 900242 05010 1 screw 5 10 11 900706 00010 1 circlip 10 12 900800 00609 1 bearing ball 609 13 610360 08931 1 shaft p t o 14 900810 06201 1 bearing ball 6201 15 900702 00032 1 circlip 32 16 610315 07130 1 spacer 17 610413 07130 1 oilseal 18 610313 07132 1 plate adapter u 19 610314 04131 1 plate adapter l 20 900511 00010 1 nut 10 l h 21 900300 20022 1 pin split 2 22 22 610239 04130 2 washer shim 23 900605 00005 2 washer spring 5 24 900500 00005 2 nut 5 p.8
• Srm 22ges 7 gear case shield blade tools p.9
• Key lv part number q ty description remarks p.9
• 699000 23432 1 shield asy 26 699015 23431 1 bracket shield bl 24 900500 00005 2 nut 5 23 900605 00005 2 washer spring 5 27 c550 000200 1 shield blade 28 900242 05010 3 screw 5 10 29 900220 05008 2 screw 5 8 30 890186 23760 1 label caution 31 x405 000011 1 saw bush cutter 32 p021 007470 1 scabbard blade 33 p021 002861 1 goggles 34 895410 02830 1 wrench w s driver 35 895112 00330 1 spanner 8 10 36 897518 01131 1 locking tool 37 895610 00130 1 l wrench 4mm 38 898502 01130 1 pin 2 22 w pouch 39 898510 39130 1 bag tool 40 x698 000040 1 tool case p.9
• Srm 22ges 8 carburettor p.10
• Key lv part number q ty description remarks p.10
• A021 000550 1 carburetor diaphragm 1 123172 45130 1 swivel 2 123114 44330 2 screw 3 p003 000840 1 valve asy throttle 4 123173 07930 1 clip 5 123183 40630 1 o ring 6 123184 44330 1 jet 37 7 123125 40630 1 gasket pump 8 123112 40630 1 diaphragm pump 9 123179 05560 1 body assy pump 10 123126 10631 1 screen inlet 11 123137 19830 1 valve inlet needle 12 123122 05560 1 spring meter lever 13 123123 03930 1 lever metering 14 123138 03930 1 pin metering lever 15 123139 05560 1 screw m lever pin 16 123140 05560 1 gasket m diaphragm 17 p003 000090 1 metering diaphragm 18 123180 05560 1 body air purge 19 123181 40630 1 pump primer 20 123142 05560 1 cover primer pump 21 123110 05560 4 screw pump cover p.10
• Parts number key no parts number key no parts number key no p.11
• Parts number key no parts number key no parts number key no p.12
• No 4 018 640452 p.13
