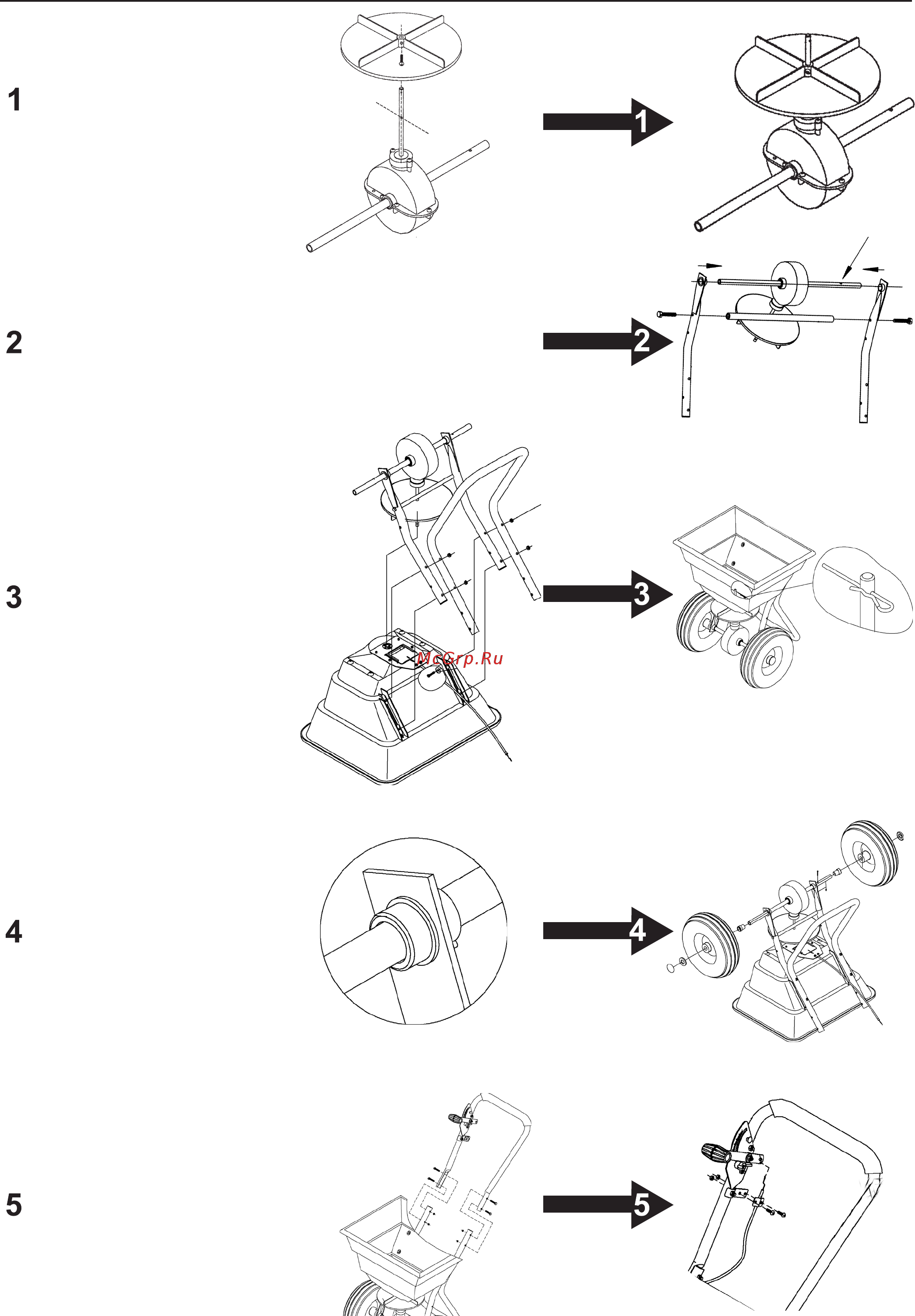

Assembly

Install impeller (O) on the gearbox

(M), secure with screw (D) in the

bottom hole.

Insert the lower handle (Q) on each

side of the gearbox axis, mount

xing-rod (P) on the lower

handle(Q) fasten with bolt (B).

Ensure that the gear is turned

correctly (see label on the gear)

A: Insert the rotor axis of the

gearbox (M) through the bottom of

the hopper (N) x the R-pin (K) to

the gearbox (M) from the inside of

the hopper (N)

B: Insert bolt (A) through the

inside of the hopper (N) continue

through the support-leg (S), x

with washer (H) insert the bolt (A)

further through the handle (Q)

fasten with nut (E)

Insert the bushing (I) onto the

wheel axis of the gearbox (M)

lock the bushing (I) in the

handlebar (Q)

Install the right wheel(L) and

tighten with bolt(C) and nut(F)

secure the wheel from the outside

with hubcap (J).

Install the left wheel(L) plus

washer(G) on the outside of the

wheel, secure the wheel with the

hubcap(J).

Attach the handlebar (R) at the

support-leg(S), secure with bolt(B)

and nut(E)

Attach the cable from the

hopper(N) onto the dispenser le-

ver on the handle(R) fasten cable

onto the bracket below the lever.
