Extra devices connection

Line in

This unit has an extra group of audio input terminals. You can

input the analogue stereo audio signals from extra devices such

as DVD, VCD, CD, VCR player, etc.

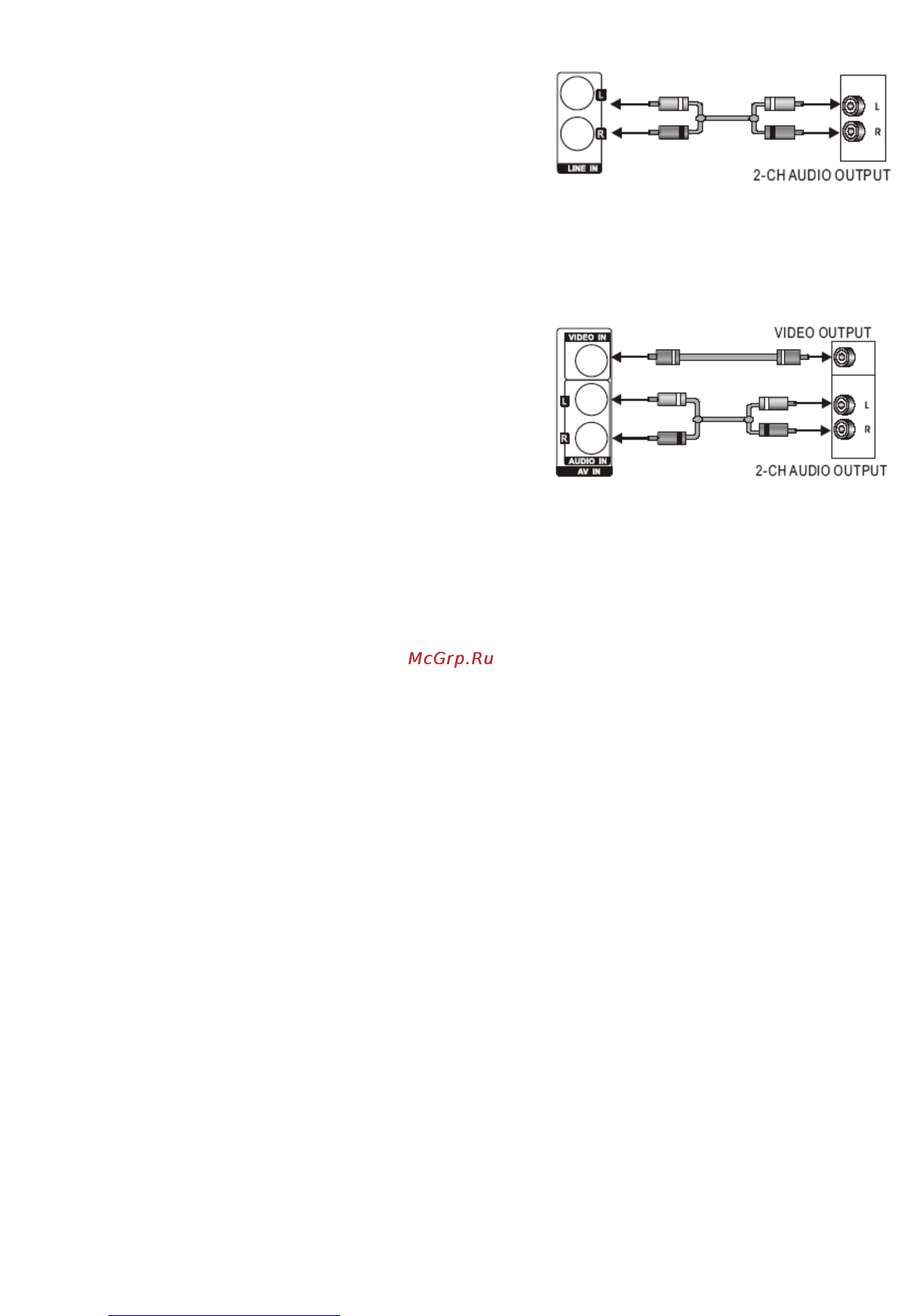

Use the audio cable (red for right, white for left) to connect the

stereo audio output terminals of an extra device to the stereo

input terminals (LINE IN) of this unit.

Its corresponding signal source is LINE IN, which can be

available by pressing SOURCE SELECT button on the RC or

SOURCE on the front panel.

AV in

This unit has an extra group of video and audio input terminals.

You can input the analogue stereo audio signals and video

signals from extra devices such as VCD, VCR, DVD player, etc.

Use the audio cable (red for right, white for left) to connect the

stereo audio output terminals of an external device to the stereo

input terminals of this unit (L/R AUDIO IN).

Use the cable with yellow plug of an AV cable to connect the

composite video input of this unit (VIDEO IN) to the video

output of an external device.

Its corresponding signal source is AV IN, which can be

available by pressing SOURCE SELECT button on the RC or

SOURCE on the front panel.
