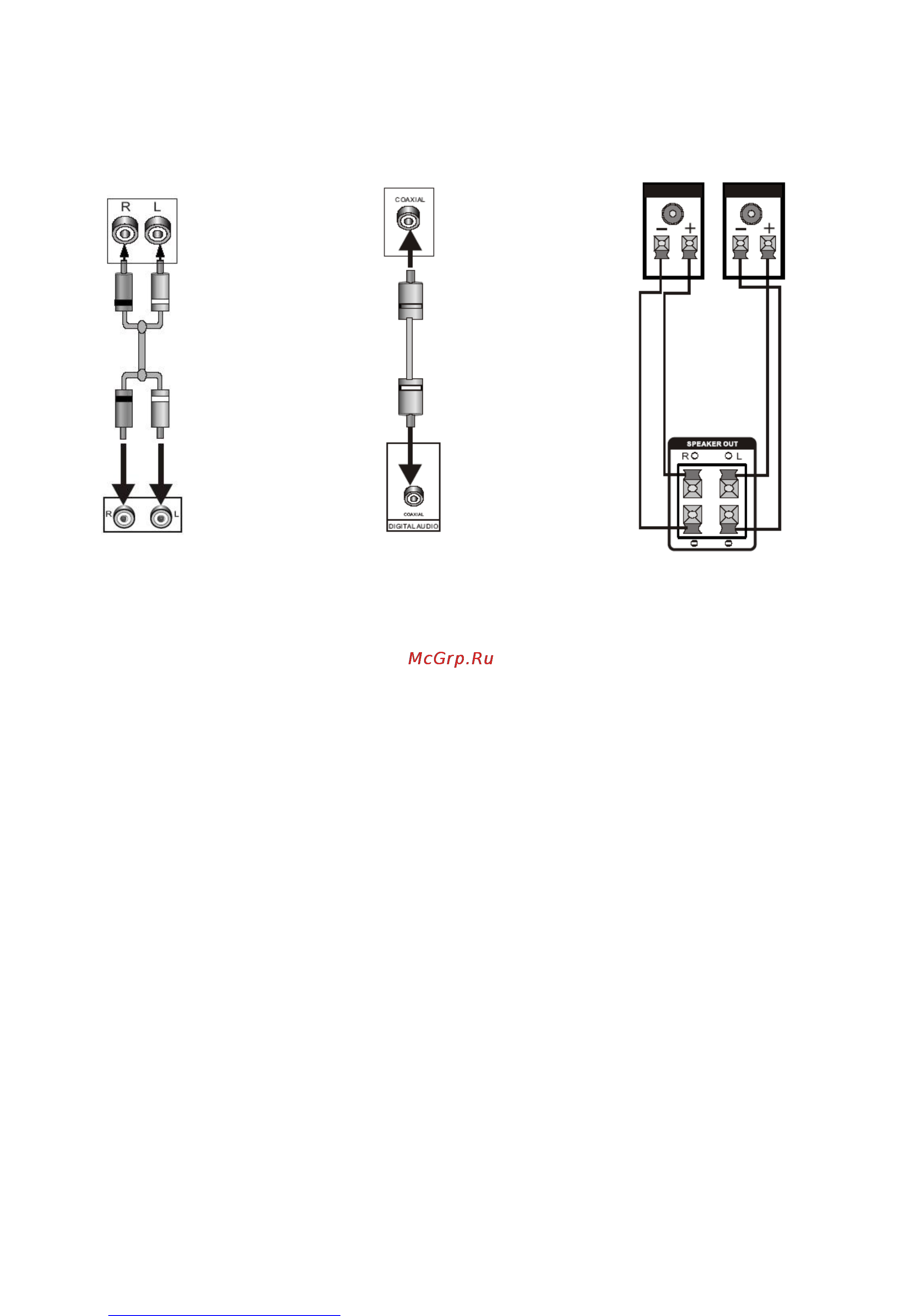

Audio system connection

Audio output of the unit includes the analog audio and the digital audio. The analog audio is two channel

Audio, the digital audio is coaxial, and the sound effect is much better when the coaxial output is used.

TV/Monitor/Amplifier audio input

2 CH audio Coaxial audio Speaker

input input

2 CH audio Coaxial audio

output output Speaker output

DVD player audio output

Stereo audio

 Use a pair of audio cable (red for right/white for left) to connect the audio input of the TV or power

amplifier to the audio output of this unit.

Coaxial audio

 Use the specified coaxial cable to connect the coaxial output of this unit to the coaxial input of power

Amplifier

Speaker output

 Use the specified cable in the accessories to connect this unit to the input of sound boxes.

Note: The physical connection should accord to the audio output setup of this unit. Please refer to Audio

Setup in System Setup.
