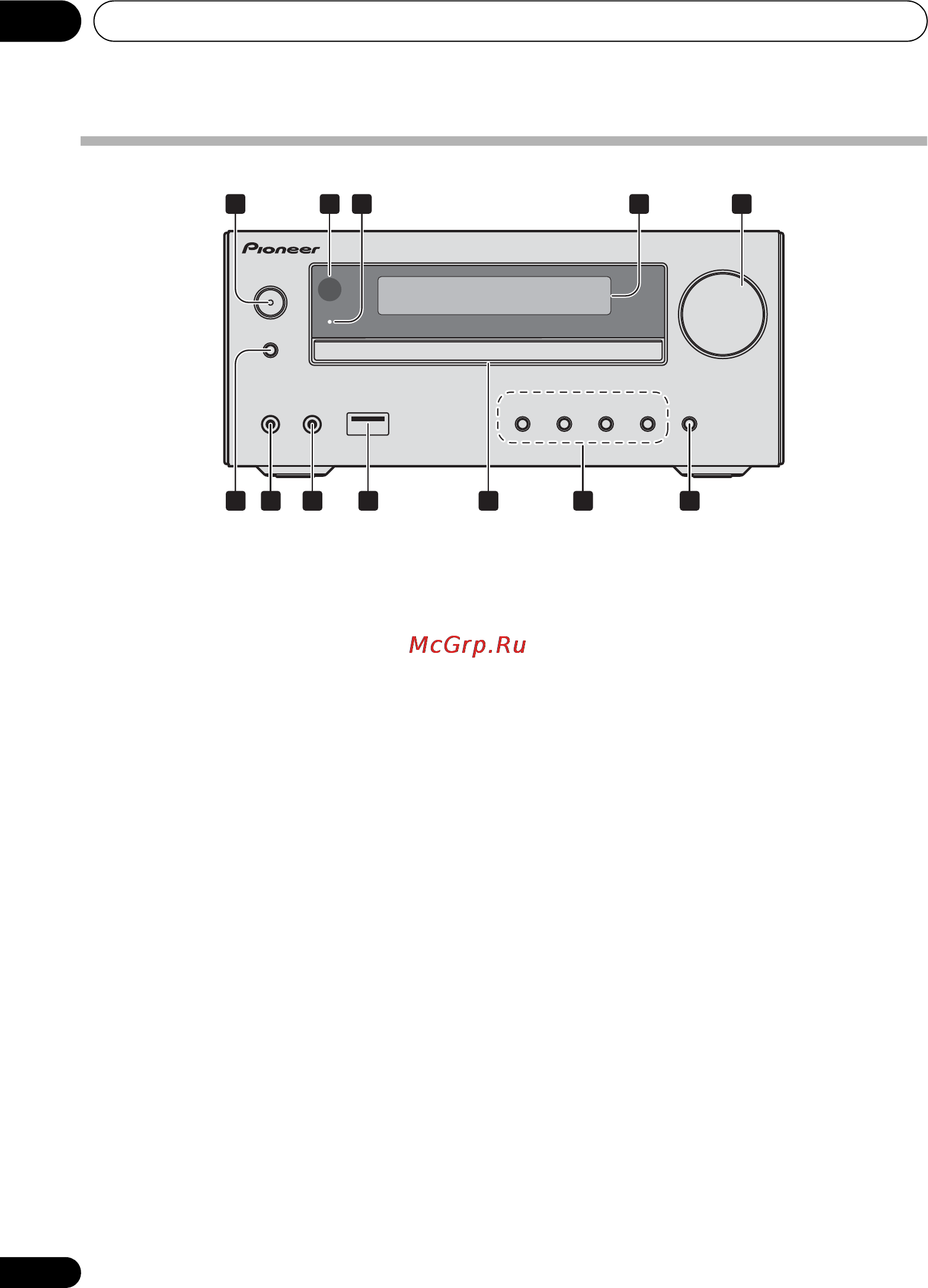

Part names and functions02

Front panel

1  STANDBY/ON button

Switches the receiver between standby and on (page 12).

2 Remote sensor

Receives the signals from the remote control.

3 TIMER

indicator

Lights when the unit power is off but when the timer setting is

activated.

4 Character display

See Display on page 9.

5 Volume control

Use to set the listening volume (page 12).

6 INPUT button

Selects the input source.

7 Headphone socket

Use to connect headphones. When the headphones are

connected, there is no sound output from the speakers

(page 14).

8 AUDIO IN socket

Use to connect an auxiliary component using a stereo

minijack cable (page 26).

9 USB terminal (X-HM21)

Use to connect your USB mass storage device or Apple iPod/

iPhone/iPad as an audio source (page 21).

USB terminal (X-HM11)

Use to connect your USB mass storage device as an audio

source (page 21).

10 Disc tray

Place the disc, label side up (page 17).

11 Playback control buttons

Select the desired track or file to be played back. Stop current

playback. Stop playback or resume playback from the point

where it was paused.

12 Disc tray open/close button

Use to open or close the disc tray (page 17).

 STANDBY/ON

INPUT

VOLUME

PHONES AUDIO IN

  

TIMER

X-HM21

7 86 9 11 1210

2 51 3 4
