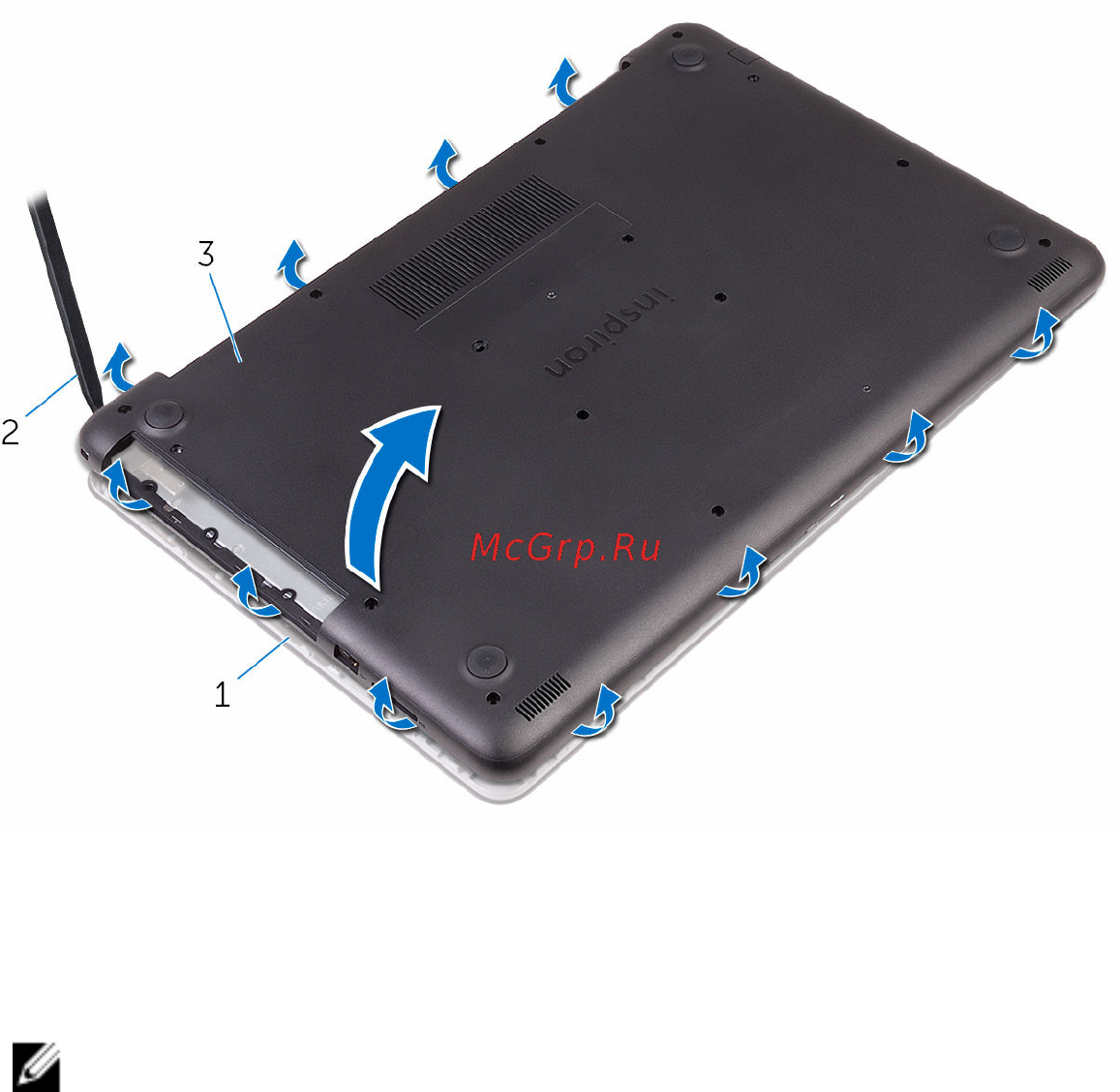

3 Lift the base cover off the palm rest and keyboard assembly at an angle.

1 palm rest and keyboard

assembly

2 plastic scribe

3 base cover

NOTE: Follow step 4 and 5 only if you want to further remove any

component from the computer.
