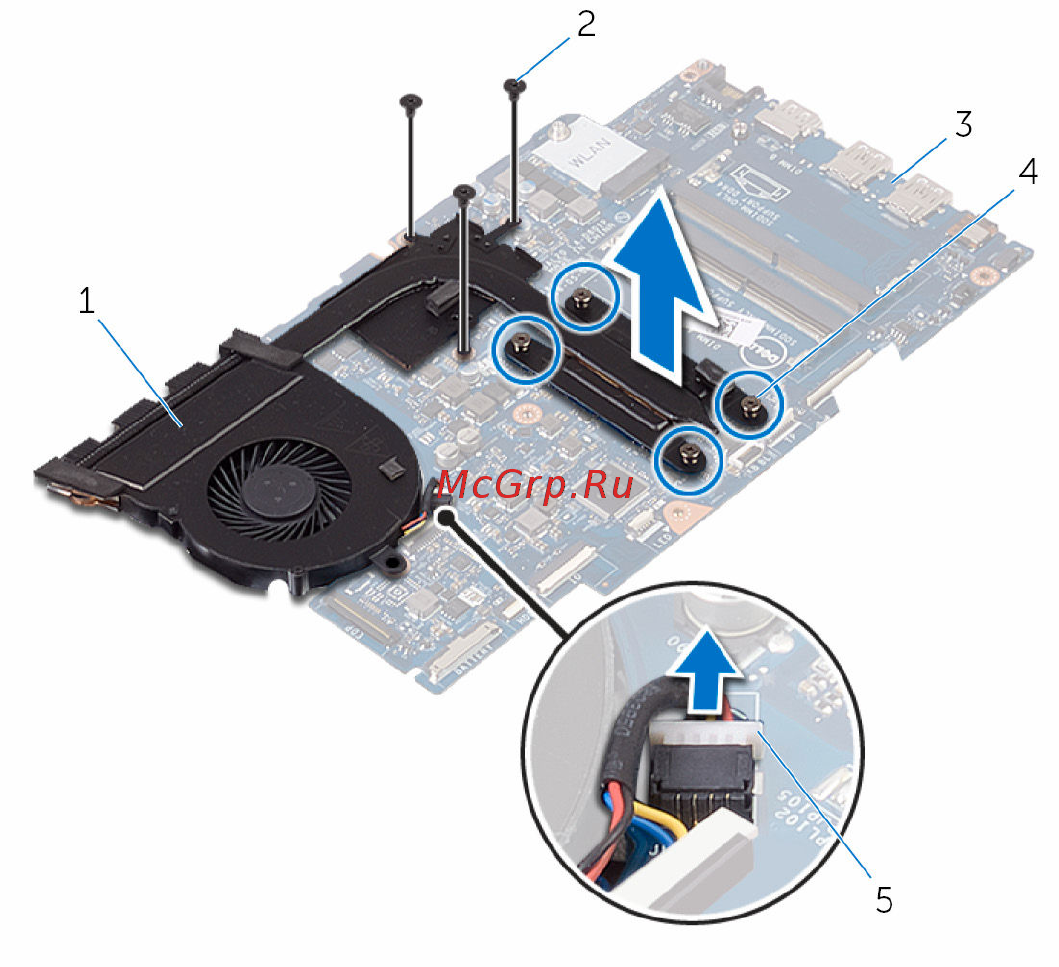

4 Lift the heat-sink assembly off the system board.
1 heat-sink assembly 2 M2x3 screws (3)
3 system board 4 captive screws (4)
5 fan cable
63
