10 | About Your Monitor

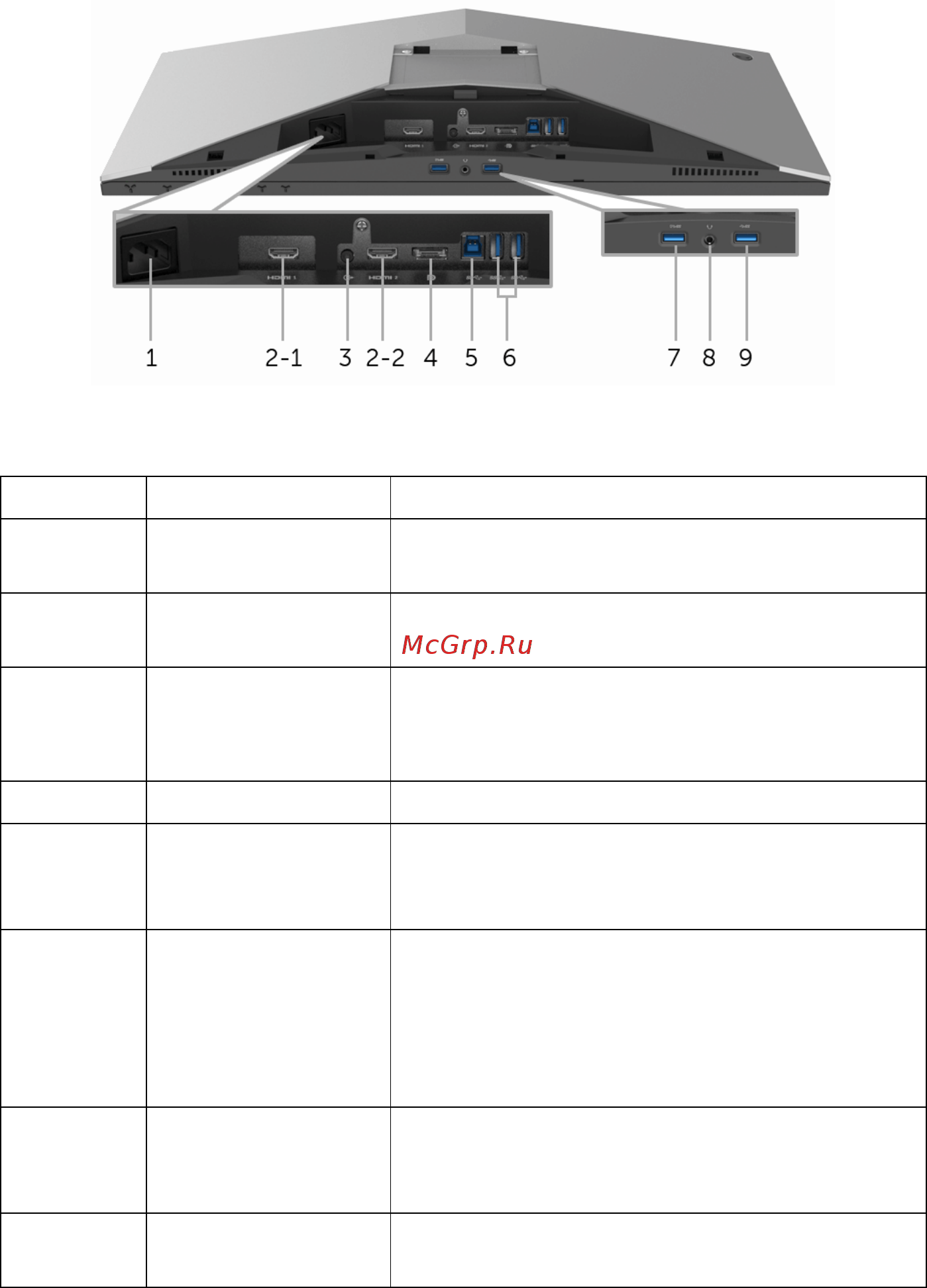

Rear and Bottom View
Rear and bottom view without monitor stand
Label Description Use
1 Power cable
co
nnector
Connect
the power cable (shipped with your
monitor).
2
(1, 2)
HDMI port Connect your computer with HDMI cable
(shipp
ed with your monitor).
3 Line-out port Connect your speakers.
NOTE: This port does not support
headp
hones.
4 DisplayPort Connect your computer with DP cable.
5 USB upstream port Connect the USB cable (shipped with your
moni
tor) to thi
s port and your computer to
enable the USB ports on your monitor.
6, 9 USB 3.0 port Connect your USB device.
NOTE: To use this
port, you must connect the
USB cable (shipped with your monitor) to the
USB-upstream port on the monitor and to
your computer.
7 USB downstream
port with Power
Charging
Connect to charge your
USB device.
8 Headphone-out
jack
Connect the headphones.
