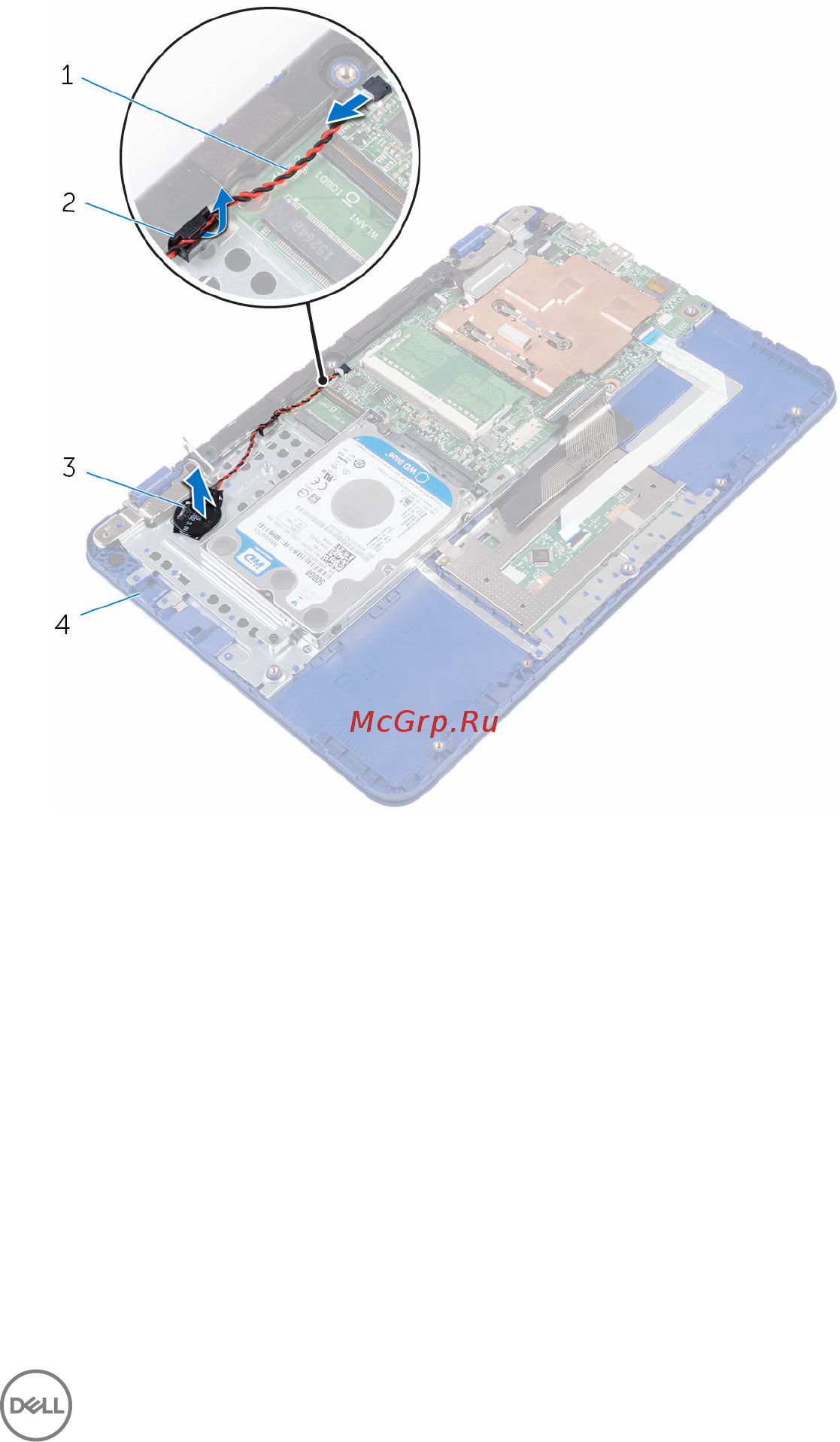

3 Carefully peel off and lift the coin-cell battery from the palm rest and keyboard
assembly.
1 coin-cell battery cable
2 routing guide
3 coin-cell battery 4 palm rest and keyboard
assembly
49
