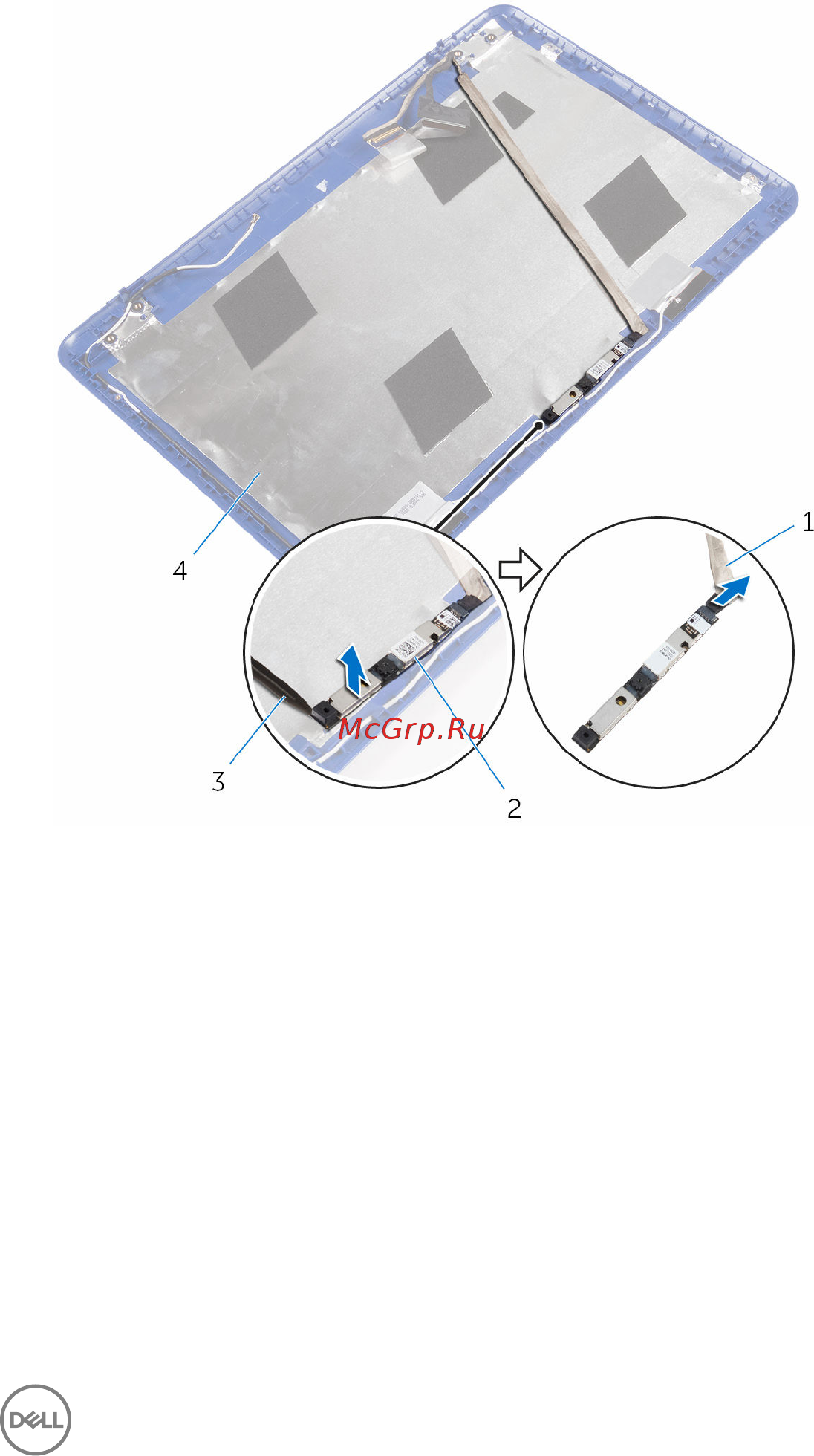

2 Disconnect the camera cable from the camera.
1 camera cable
2 camera
3 plastic scribe 4 display back-cover and
antenna assembly
81
