ISO Connection table

FunctionLocation

Connector A Connector B

1 - Rear right (+) - Blue

2 - Rear right (-) - Blue/White

3 - Front right (+) - Grey

4 Battery +12V/Yellow Front right (-) - Grey/White

5 Auto Antenna/Orange Front left (+) - Green

6 - Front left (-) - Green/White

7 Ignition/Red Rear left (+) - Brown

8 Ground/Black Rear left (-) - Brown/White

Note: Power antenna wire is intended for power supply of the antenna and for remote control of an

additional amplifier.

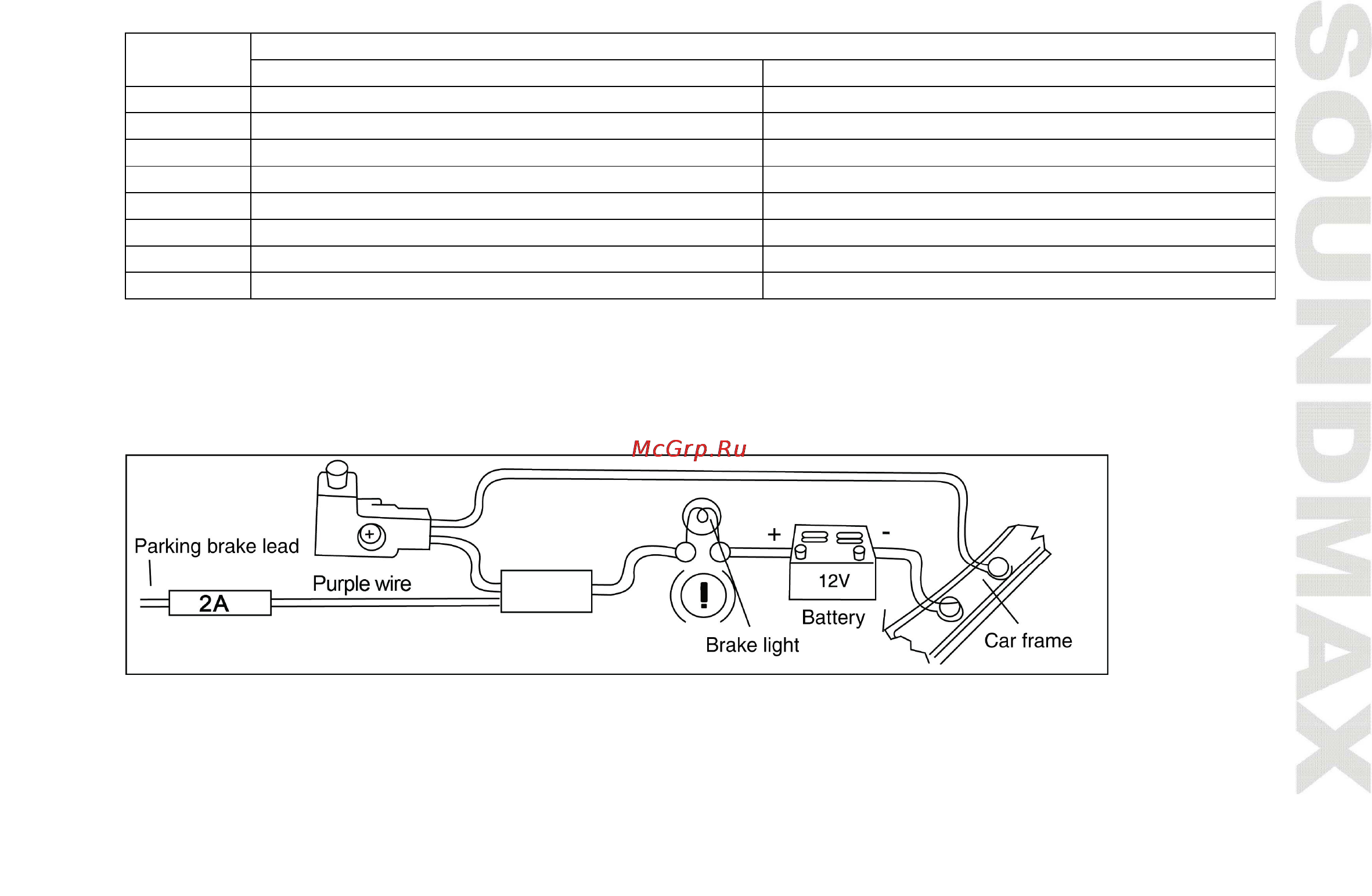

Parking wire connection

If parking cable is connected to hand brake switch, the video display of the monitor will be controlled by

driving status, system setup and input video sources. When the car is moving ahead, if the video disc is

played, the screen shows “Warning! Please stop watch video player”, and blank screen. The warning screen

will prevent the driver from watching images.
