7
RQT7448
Getting started
When there is no 21-pin Scart terminal on the television (➡ page 8)
∫ RGB
This refers to the three primary colours of light, red (R), green (G), and blue (B) and also the method of producing video that uses them. By
dividing the video signal into the three colours for transmission, noise is reduced for even higher quality images.

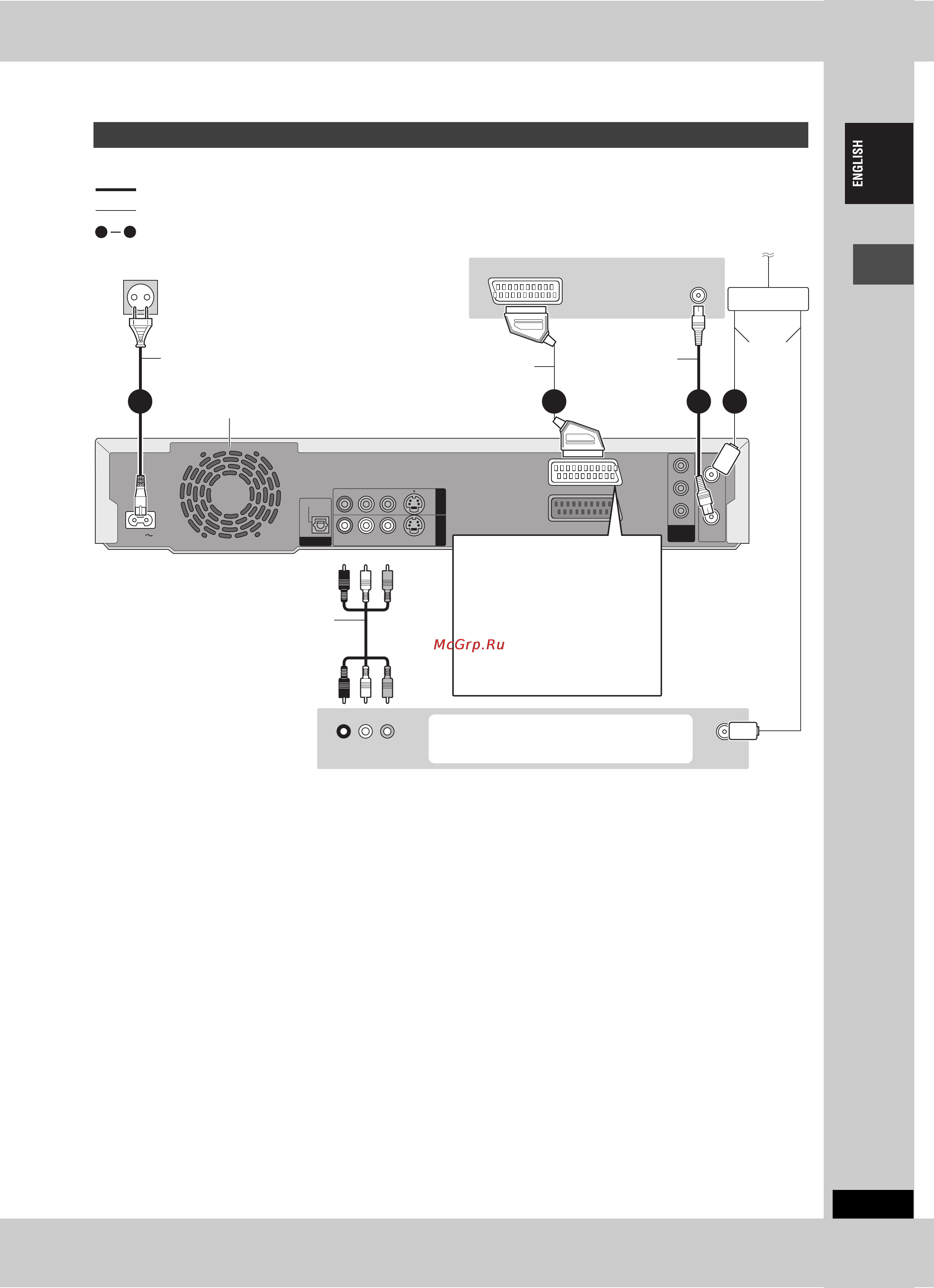

Connecting a television with 21-pin Scart terminal and VCR
R - AUDIO - L
VIDEO
PR
S-VIDEO
R - AUDIO - L
VIDEO
S-VIDEO
OPTICAL
OUT
AV4 I N
RF IN
RF OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
PB
Y
AV1 (TV)
AV2 (DECODER/EXT)
AC IN
AV IN
VHF/UHF
RF IN
VHF/UHF
RF IN
R L
AUDIO OUT VIDEO OUT
2 134
1
4
(PROGRESSIVE/
INTERLACE)
To the aerial
Splitter
Television’s
rear panel
Aerial
cable
VCR’s rear panel
Cooling fan
RF coaxial cable
This unit’s rear panel
Red White Yellow
Audio/Video cable
To household mains socket
(AC 220–240 V, 50 Hz)
Fully wired 21-pin Scart cable
You can also connect with the AV2 terminal
on this unit using the 21-pin Scart cable.
Red White Yellow
indicates included accessories.
indicates accessories not included.
are required connections. Connect in the numbered order.
AV1 terminal
If your television is equipped with RGB
input capability, by connecting with a
fully wired 21-pin Scart cable you can
see video using RGB output on this
unit (➡ below).
To output in RGB select
“RGB ( without component )” from
“AV1 Output” in the SETUP menu
(➡ page 44) after tuning is completed
(➡ page 10, 11).
Use a splitter if you
also want to connect
the aerial to your VCR.
AC mains lead
Connect only after all other
connections are complete.
7
