38
Fig. 6
[3] Storage Bin Interior Cleaning/Sanitisation (Weekly)
1) Open the storage bin door, and remove all ice.
2) Wash the bin liner with a neutral non-abrasive cleaner. Rinse thoroughly.
3) Soak a clean cloth with the neutral cleaner, and wipe both sides of the slope and the
door inner surface. Wipe off the cleaner with a clean damp cloth.
4) Either mix 5 litres of water with 18 ml of 5.25% sodium hypochlorite solution in a
suitable container, or the recommended Hoshizaki sanitiser as directed.
5) Soak a clean sponge or cloth with the solution, and wipe the bin liner, bin door and
slope.
6) The remaining solution can be used to sanitise utensils.
Note: Do not wipe dry or rinse after sanitising, but allow to air dry.

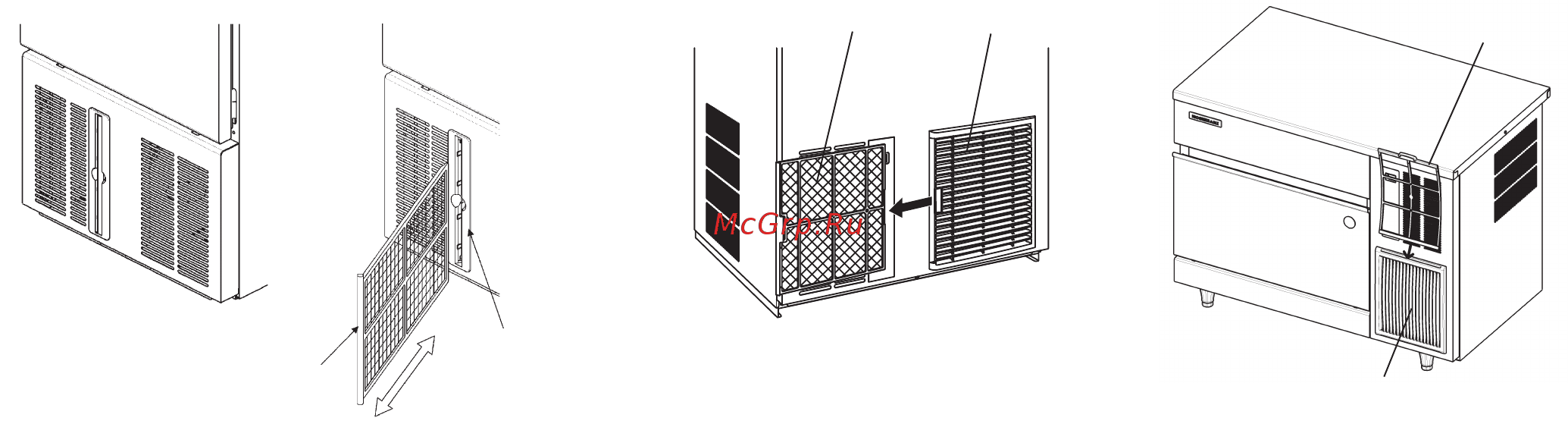

[4] Air Filter (Air-Cooled Model Only)
Plastic mesh air lters remove dirt or dust from the air, and keep the condenser from
getting clogged. If the lters get clogged, the icemaker’s performance will be reduced.
Remove and clean the air lters at least twice per month:
1) Slide the air lter off the lter guide [IM-21CNE/30CNE] or the louver [IM-45CNE/45N
E/65NE/100CNE/100NE/130NE/240NE].
Air Filter Louver
* Figure shows IM-240NE
[IM-45CNE/45NE/65NE/100CNE/
100NE/130NE/240NE]
Air Filter
Filter Guide
Slide in/out
[IM-21CNE/30CNE]
[IM-100CNE]
Air Filter
Louver
2) Clean the air lter by using a vacuum cleaner. When severely clogged, use warm
water and a neutral cleaner to wash the air lter.
3) Rinse and dry the air lter thoroughly.
