IS 384 ECN 3607 Page 4 of 10

If replacing the plug connect the terminals as follows:

Green and Yellow wire Earth E

Blue wire Neutral N

Brown wire Live L

Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary

polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)

Power Ratings

Model

Supply Requirement

Supply Connection

Power Rating (kW)

AS3

Single phase 11.7 A

Single phase 13A plug

2.8

AS4

Single phase 19.5 A

5 way terminal block

4.5

Model AS3 is fitted with a 3 pin plug for connection to a standard switched socket.

Model AS4 must be connected by a qualified electrician.

Means of isolation with at least 3mm contact separation in all poles must be

incorporated into the fixed wiring of the AS4.

The fixed wiring insulation must be protected by insulated sleeving having a

temperature rating of at least 60 Deg C.

Appliances may be counter or wall mounted. For either installation, remove and

discard the 2 transportation screws (A) from rear panel. (Fig 2).

Counter Mounted

Install this appliance on a level surface ensuring all vents are unobstructed. Any

partitions, walls or furniture must be of non-combustible material and not be closer

than 300 mm (Fig 1 A). Dimension B 60mm minimum – 220mm maximum.

Dimension C depth when wall mounted.

Ensure a space of at least 500 mm between the working surface and any ceiling.

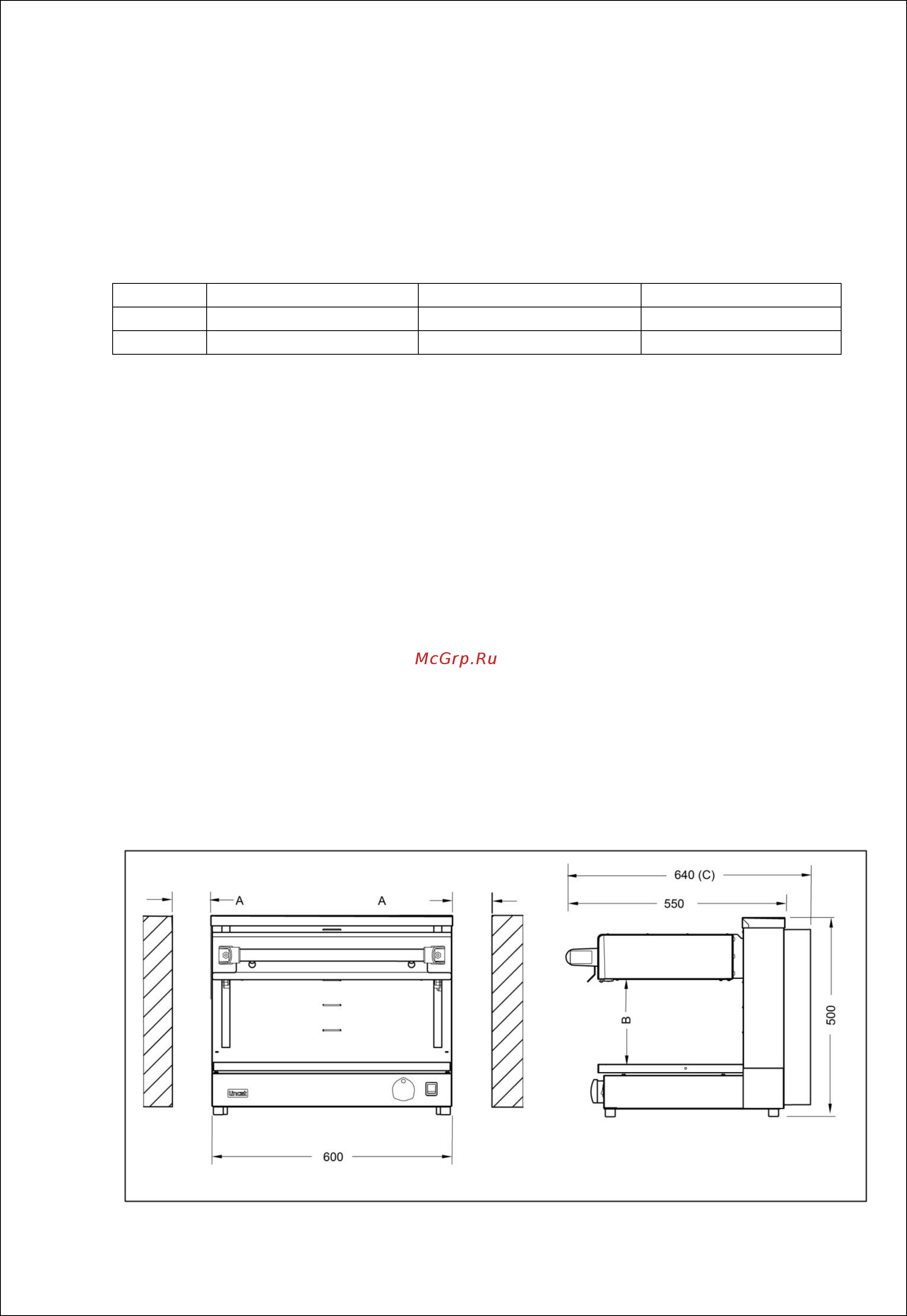

Fig 1
