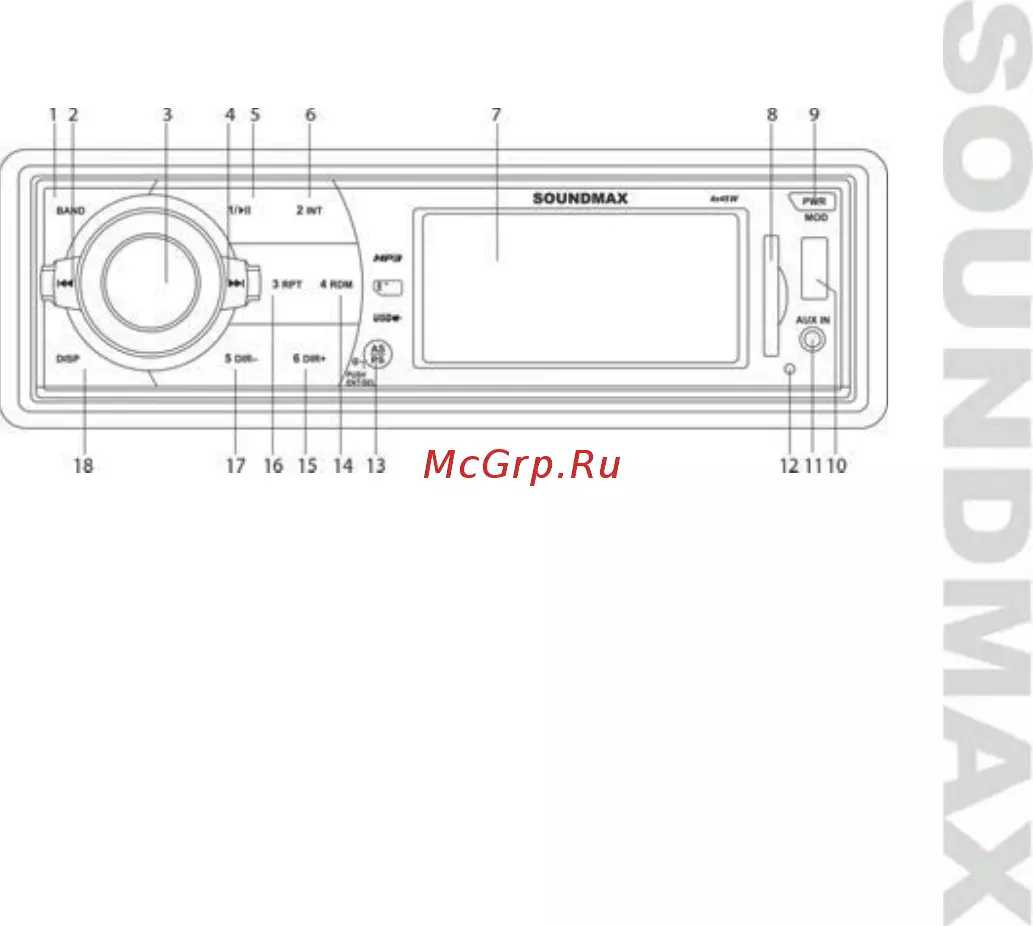

8

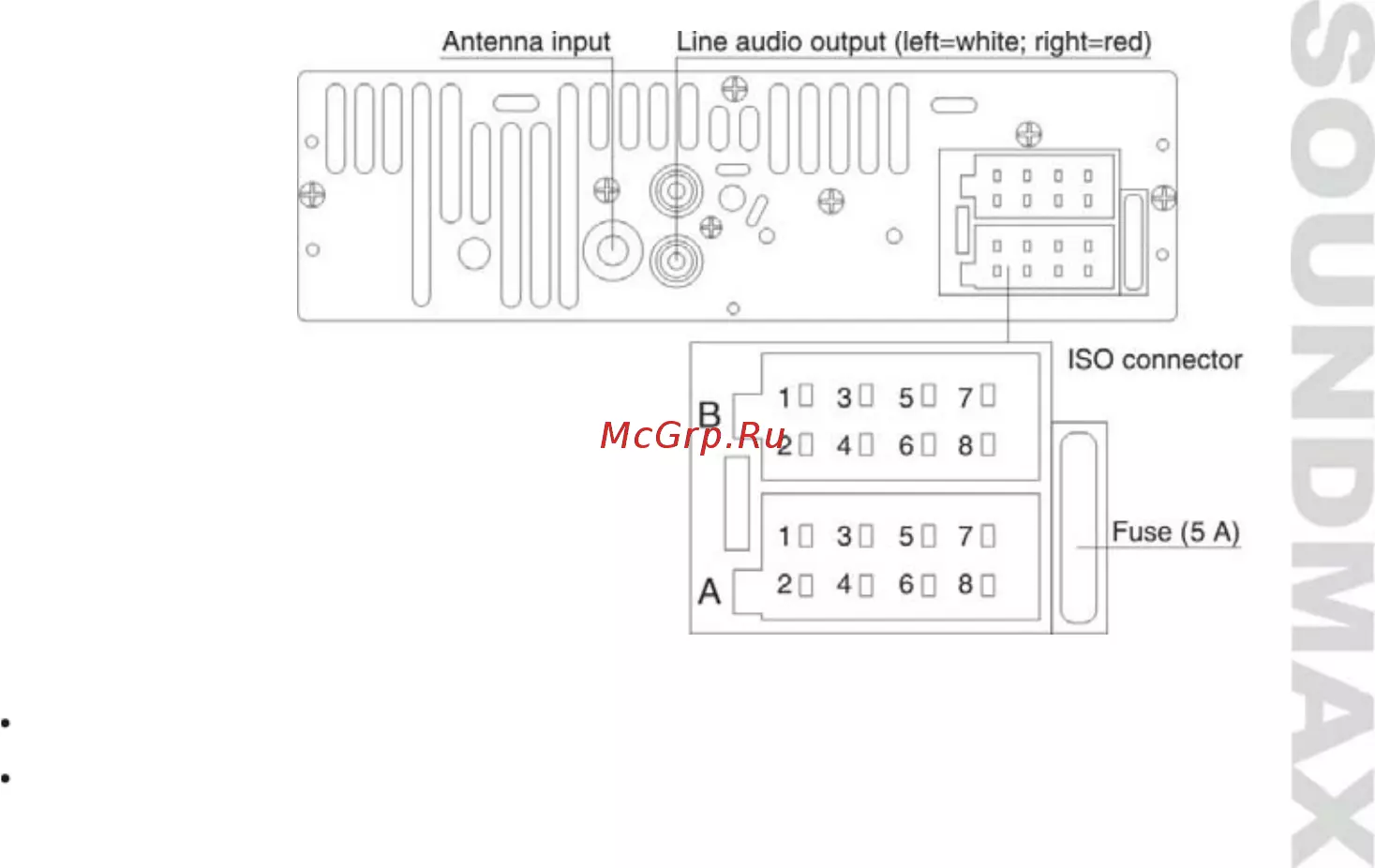

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle carefully
before connecting, incorrect connection may cause serious damage to this unit.
Cut the connector, connect the colored leads of the power cord to the car battery as
shown in the table below for speaker and power cable connections.
Location
Function
Connector A
Connector B
1
-
Rear Right (+)---Violet
2
-
Rear Right (-)---Violet/Black
3
-
Front Right (+)---Grey
4
Battery 12V (+)/Yellow
Front Right (-)---Grey/Black
5
Auto Antenna/Blue
Front Left (+)---White
6
-
Front Left (-)---White/Black
7
Ignition/Red
Rear Left (+)---Green
8
Ground/Black
Rear Left (-)---Green/Black
Power antenna wire is intended for power supply of the antenna and for remote control of an additional
amplifier.
