- Assembly sets

- Chimney exit adaptor

Optional accessories

- Active carbon filter

In the places where there is no chimney, Active carbon filters should be used in order to release the air

into the ambiance after filtration. Active carbon filter should be obtained from the authorized dealer or

the authorized service. In order to mount the active carbon filter, the cassette filter is removed first and

the active carbon filter is installed in the same manner instead of it.

DEVICE FUNCTIONS

The cooker hood can be used in the kitchens with/without chimney.

For use with chimney

The chimney exit is realized by connecting a 100 mm flexible, bendable pipe between the product and

the chimney outlet.

Warning!

Cooker Hood exit should not be connected to the air ducts that contain the smoke from other devices.

For use without chimney (recirculation mode)

The air is filtered by a cartage carbon filter and given into the ambiant again via a pipe with a diameter

of 100 mm pipe or chimney from or over the cupboard.

This method is employed in the kitchens without any chimneys or the places with chimney but the not

suitable for installation.

INSTALLATION

UNPACKING THE DEVICE:

Check that there is no deformation on you device. Any damage caused by/during transportation should

be immediately notified to the transportation responsible. The defects seen should also be notified to

the seller.

Do not let the children play with the packaging materials.

DEVICE LOCATION

When the installation is completed, there shall be a distance of minimum 65 cm between the product

and the electrical ovens and minimum 75 cm between the product and the ovens operating with other

fuel. (Figure 3)

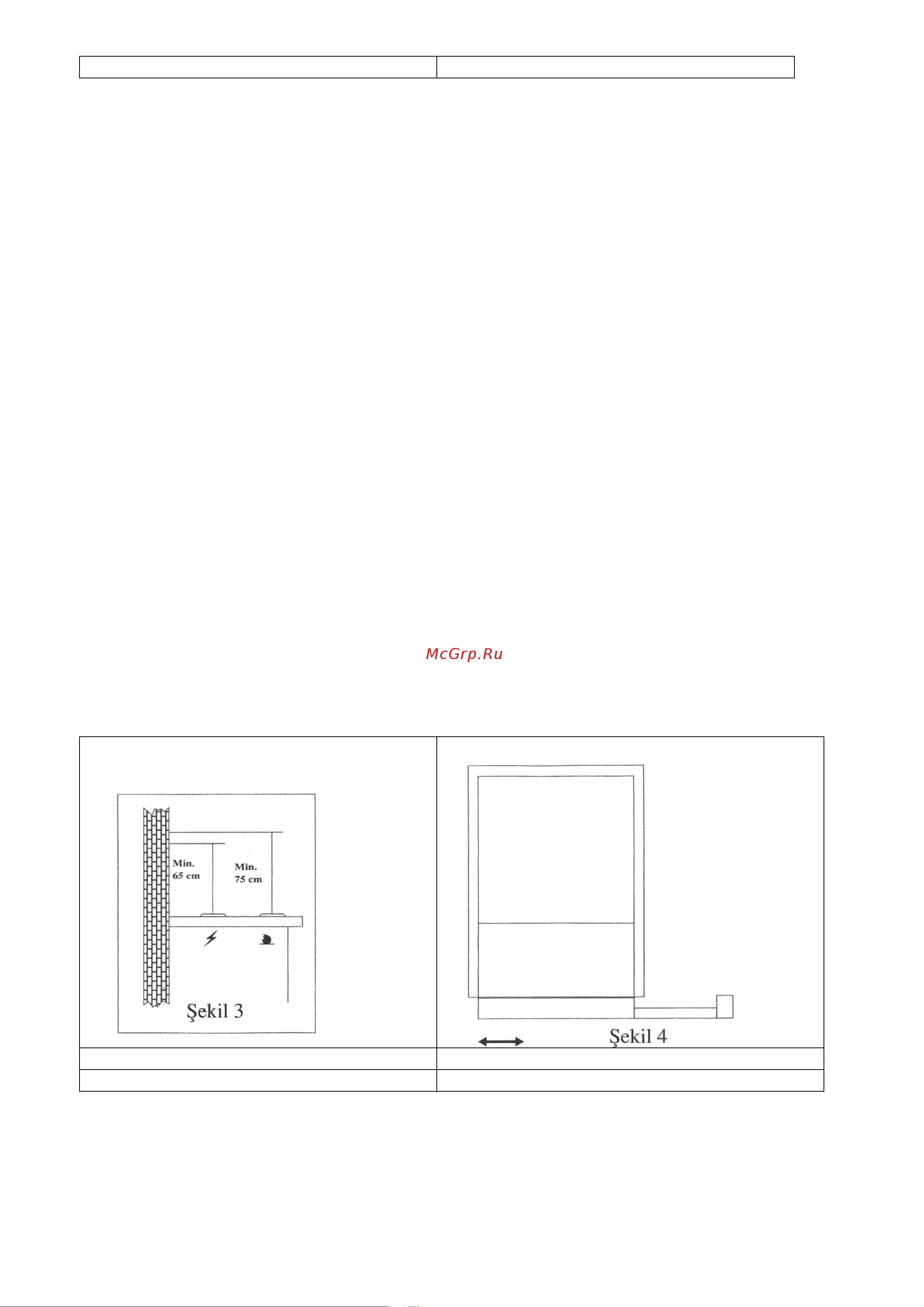

Figure 3

Figure 4

Cooker Hood Position

Installation Inside the Cupboard from Profile
