User Manual of DS-7000HI-S Series Net DVR
Page 102

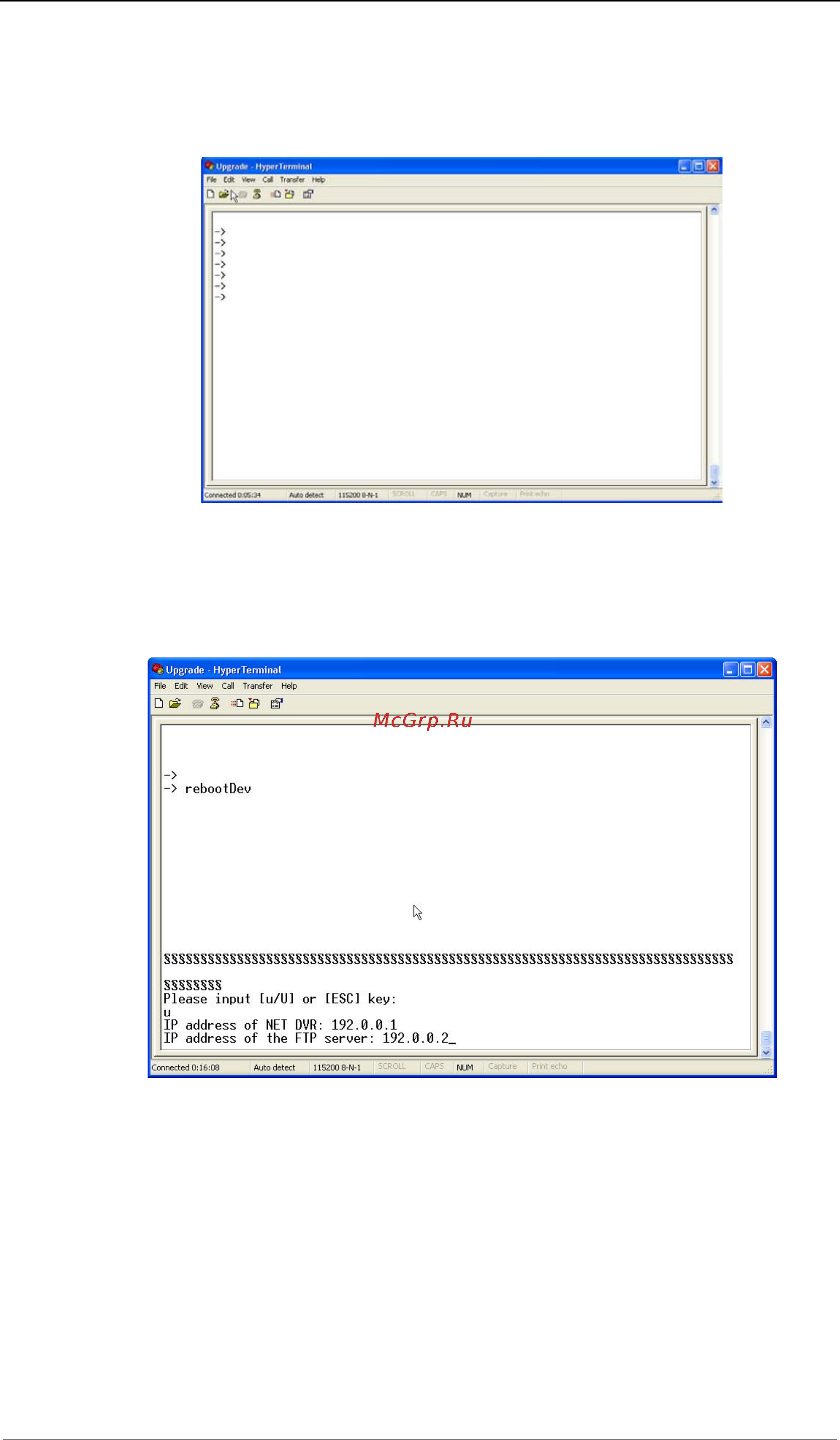

Step 3: Switch off and on the power supply of DVRDVS. In the HyperTerminal, the
following sentence is appeared: Please input [u/U] or [ESC] key Release "ctrl" and "u"
keys.
Step 4: Press “u” key. In the message line of “IP address of NET DVR”, input any one
ip, just make sure DVR IP and FTP server IP are in the same sub net.
Step 5: In the message line of “IP address of the FTP server”, input the FTP server IP.
Step 6: In the message line of “Confirm? (y/n)”, press “y”. DVR will connect with that
FTP server, and download the firmware file (digicap) through network. Please make
sure FTP server and firmware file are setup and run correctly. After upgrade finished,
press any key to reboot DVR.
