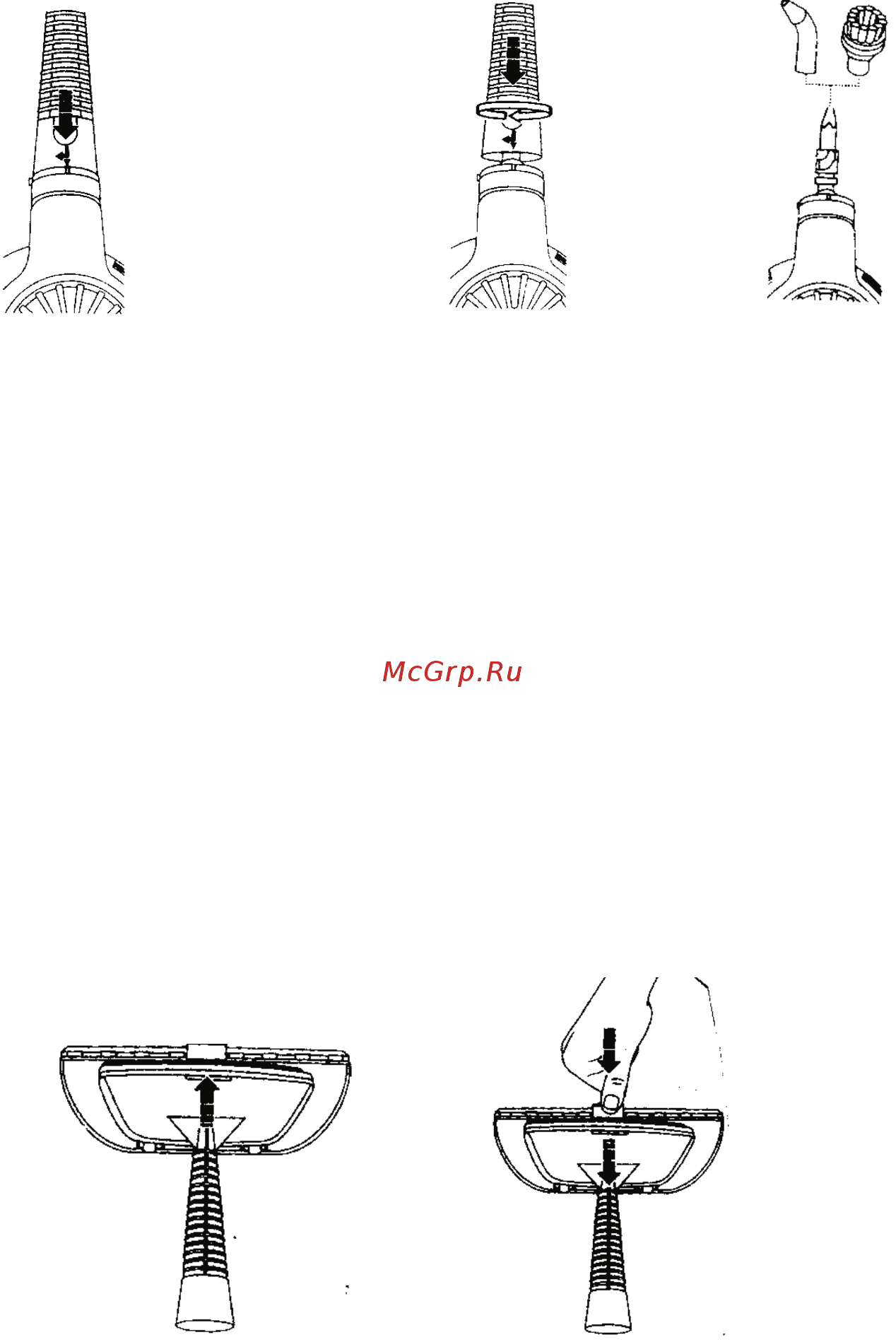

spray cup in position. Rotate the spray cup in clockwise direction, and align the arrow on

the spray cup with the double-line mark on short spray nozzle on the machine body, as

shown in Figure 1. Fix the spray cup on the machine body. To remove the spray cup with

hairbrush, please rotate the spray cup inversely (counterclockwise) as shown in Figure 2,

and align the arrow on the spray cup with the single-line mark on the machine body. Then

the spray cup with hairbrush can be pulled out.

2. Install spray cup with round brush or bent spray cup

For direct installation on short spray nozzle, aim the spray cup with round brush or bent

spray cup at the top of spray nozzle, as shown in Figure 3, and push the spray cup upwards

until it is in position. As the short spray nozzle and spray cup are positioned in six

directions, the angle and direction can be adjusted during the installation. Or, first install

long spray cup and then the spray cup with round brush or bent spray cup. The long spray

cup is installed in the same method as the installation of spray cup with hairbrush. The

spray cup with round brush or bent spray cup and long spray cup can be installed in the

same procedures as the installation on short spray nozzle.

3.Installation of spray cup for door/window

First install the spray cup with hairbrush on short spray nozzle

As shown in Figure 4 and Figure 5, install the two small hooks of the spray cup for

door/window onto suspension lugs of the spray cup with hairbrush, and then trigger the big

hook of the spray cup for door/window, and push the spray cup for door/window up and

clutch it onto the body of the spray cup with hairbrush.
