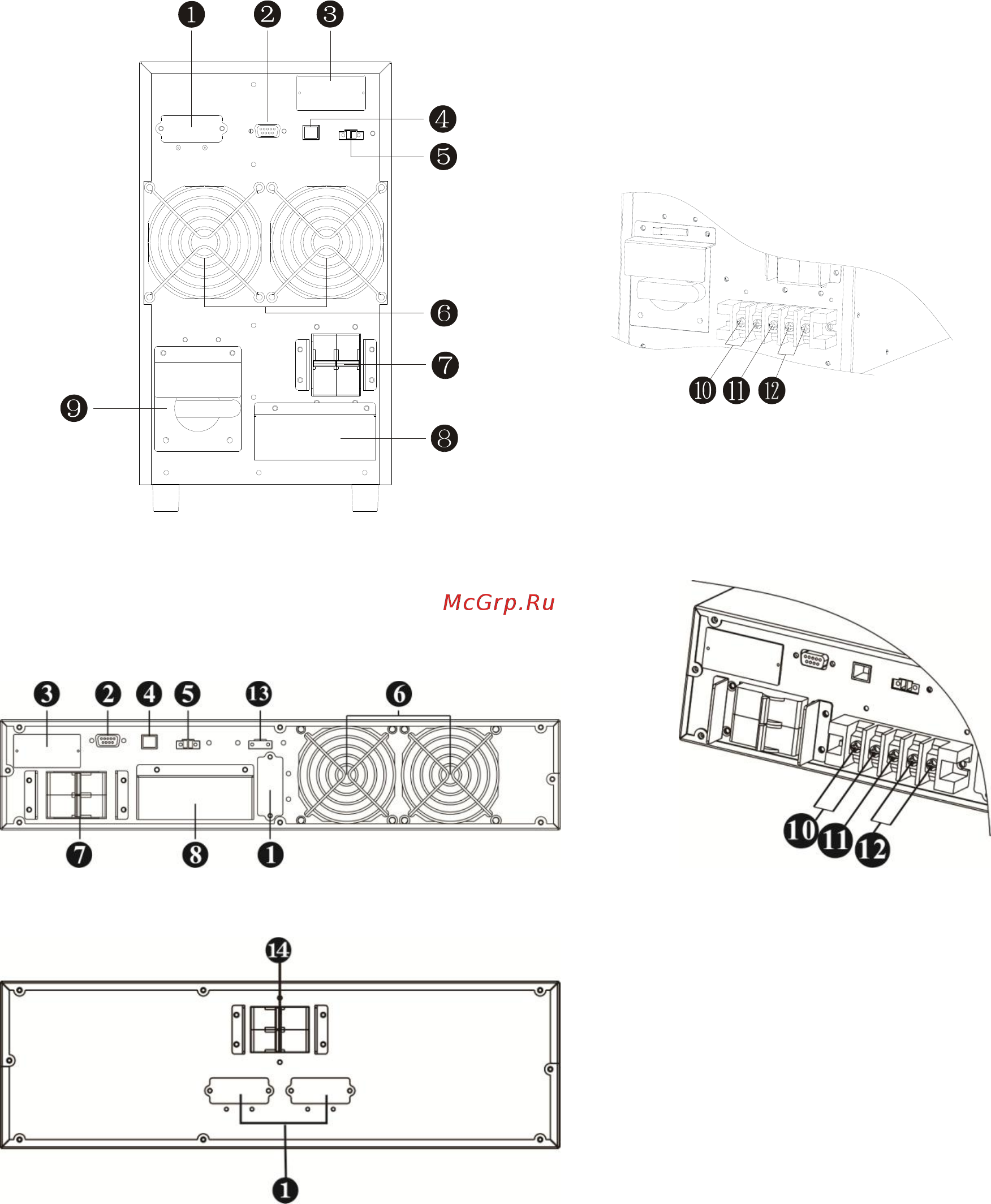

Diagram 2: 6KL/10KL Rear Panel Diagram 3: 6K(L)/10K(L) Input/Output Terminal

Diagram 4: 6KR(L)/10KR(L) Rear Panel Diagram 5: Rack Input/Output Terminal

Diagram 6: Rack Battery Pack Rear Panel

1. External battery connector

2. RS-232 communication port

3. Intelligent slot

4. USB communication

5. Emergency power off function connector (EPO connector)

6. Cooling fan

7. Input circuit breaker

8. Input/Output terminal (Refer to Diagram 3 and 5 for the details)

9. Maintenance bypass switch

10. Output terminal

11. Grounding terminal
