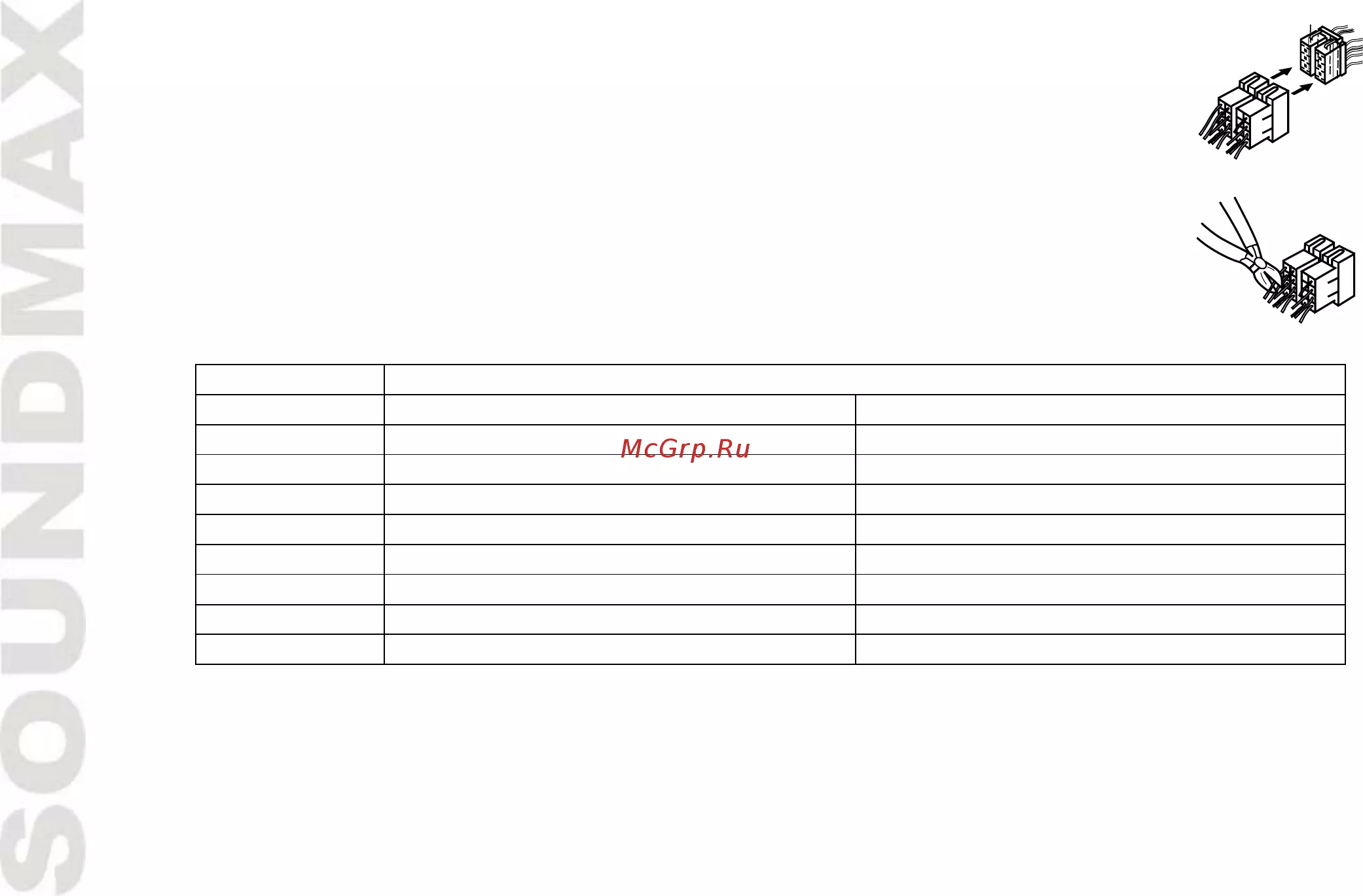

Using the ISO Connector

1. If your car is equipped with the ISO connector, then connect the ISO connectors as

illustrated.

2. For connections without the ISO connectors, check the wiring in the vehicle carefully

before connecting, incorrect connection may cause serious damage to this unit.

Cut the connector, connect the colored leads of the power cord to the car battery as

shown in the color code table below for speaker and power cable connections.

Location

Function

Connector A

Connector B

Rear Right (+)---Violet

Rear Right (-)---Violet/Black

Front Right (+)---Grey

Battery 12V (+)/Yellow

Front Right (-)---Grey/Black

Auto Antenna/Blue

Front Left (+)---White

Front Left (-)---White/Black

Ignition/Red

Rear Left (+)---Green

Ground/Black

Rear Left (-)---Green/Black

Power antenna wire is intended for power supply of the antenna and for remote control of an additional

amplifier.
