TL-WDR4900

N900 Wireless Dual Band Gigabit Router

- 131 -

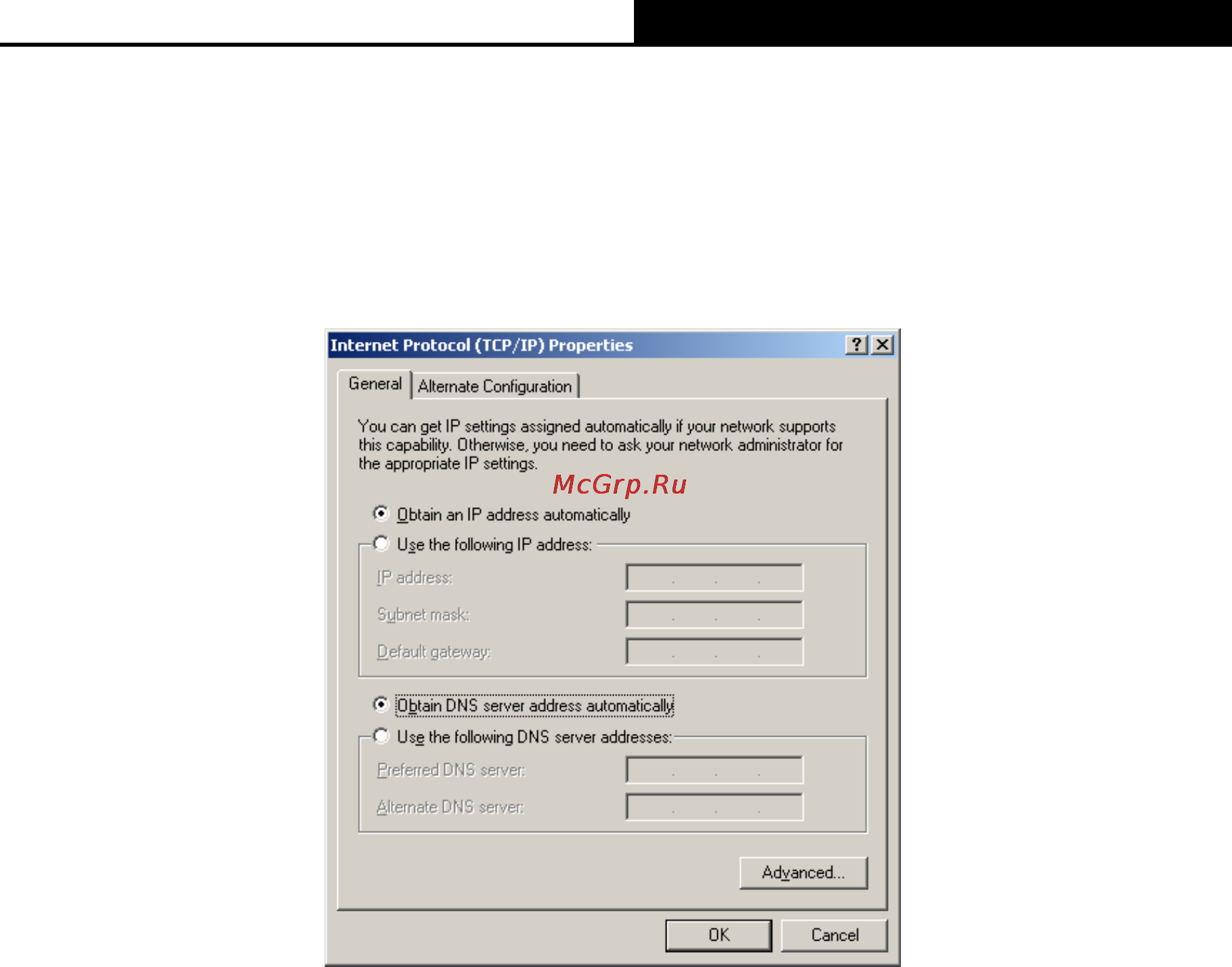

5) The following TCP/IP Properties window will display and the IP Address tab is open on

this window by default.

6) Select Obtain an IP address automatically and Obtain DNS server automatically, as

shown in the Figure below:

Figure B-3
