TL-WR1042ND 300Mbps Wireless N Gigabit Router

-108-

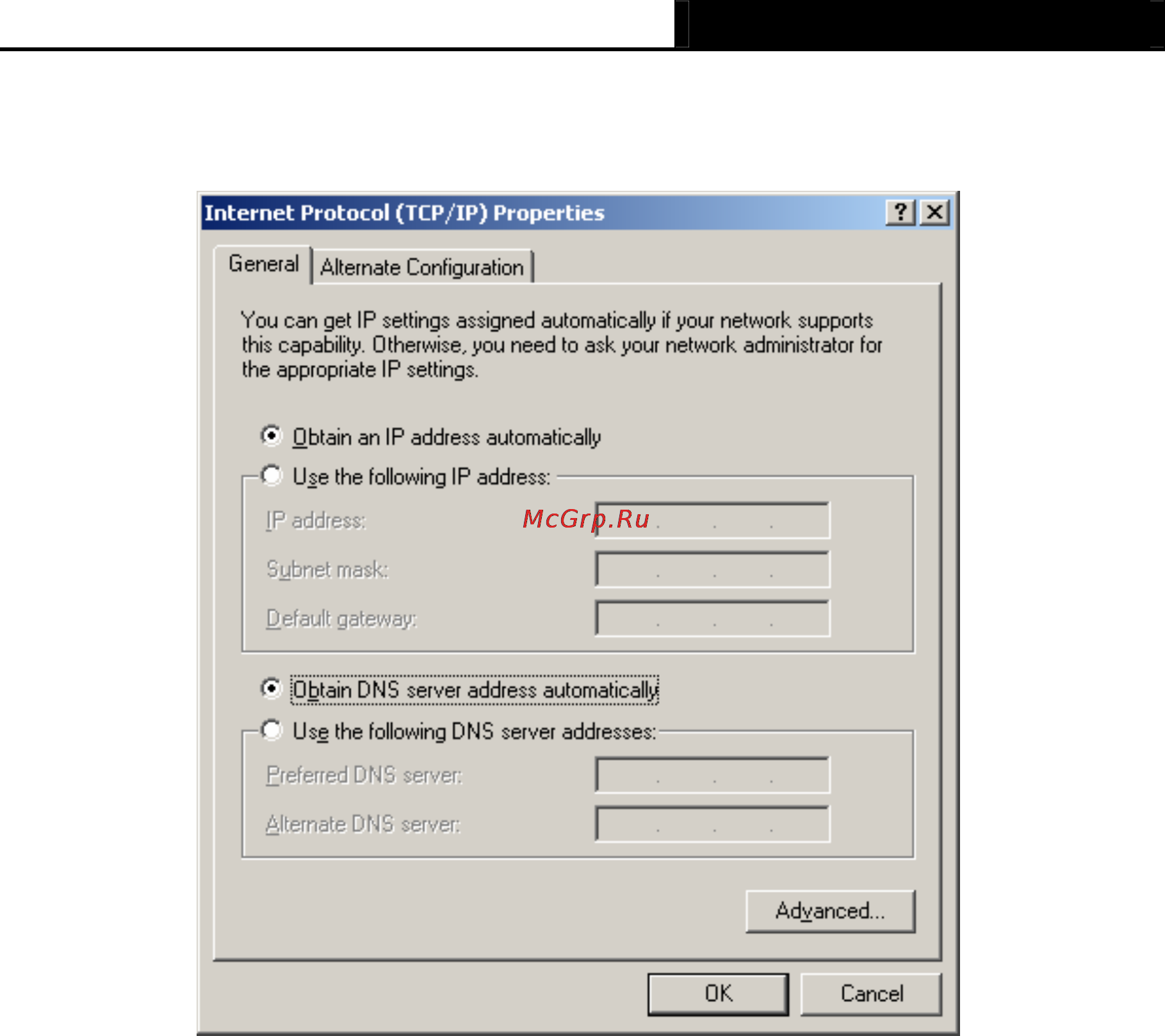

6) Select Obtain an IP address automatically and Obtain DNS server automatically, as

shown in the Figure below:

Figure B-3
