TL-WR1042ND 300Mbps Wireless N Gigabit Router
-8-
electrical outlet. The Router will start to work automatically.
7. Power on your PC and Cable/DSL Modem.

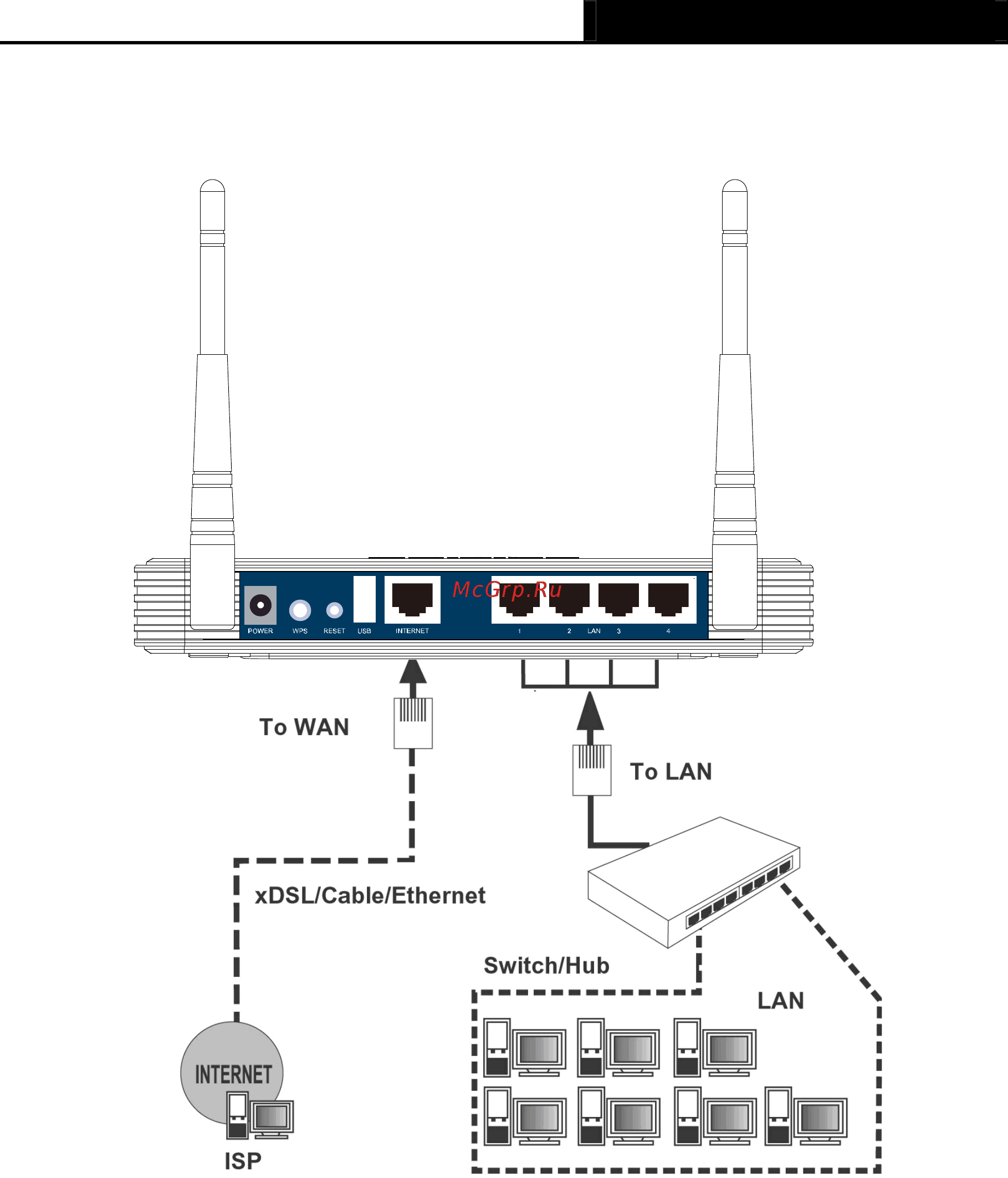

Figure 2-1 Hardware Installation of the TL-WR1042ND 300Mbps Wireless N Gigabit Router
