TL-WN951N 300Mbps Wireless N PCI Adapter

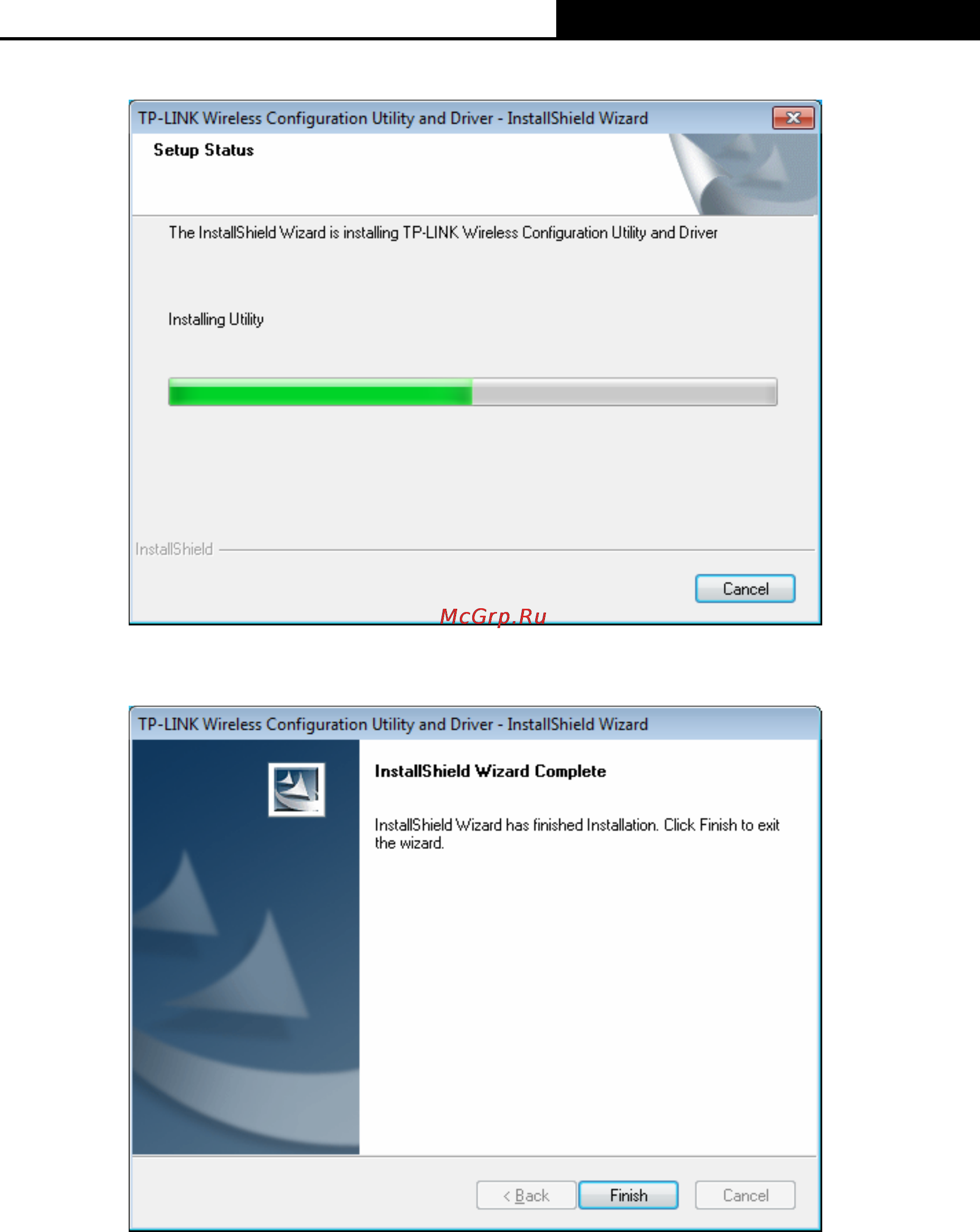

6. The utility and drivers will install. This may take 1~2 minutes.

Figure 2-6

7. After all the steps above, you will see the screen below. Click Finish to complete the setup.

Figure 2-7
