TL-WR743ND 150Mbps Wireless AP/Client Router

- 23 -

 Repeater Mode - Choosing WDS Repeater is to enable WDS, while choosing Universal

Repeater is to disable WDS. If WDS is enabled, all traffic from wired networks will be

forwarded in the format of WDS frames consisting of four address fields. If WDS is disabled,

three address frames are used.

 Wireless Name of Remote AP - The SSID of the AP your Router is going to connect to as a

client. You can also use the search function to select the SSID to join.

 MAC Address of Remote AP - The BSSID of the AP your Router is going to connect to as a

client. You can also use the search function to select the BSSID to join.

 Survey - Click this button, you can survey the AP which runs in the current channel.

 Region - Select your region from the pull-down list. This field specifies the region where the

wireless function of the Router can be used. It may be illegal to use the wireless function of

the Router in a region other than one of those specified in this field. If your country or region

is not listed, please contact your local government agency for assistance.

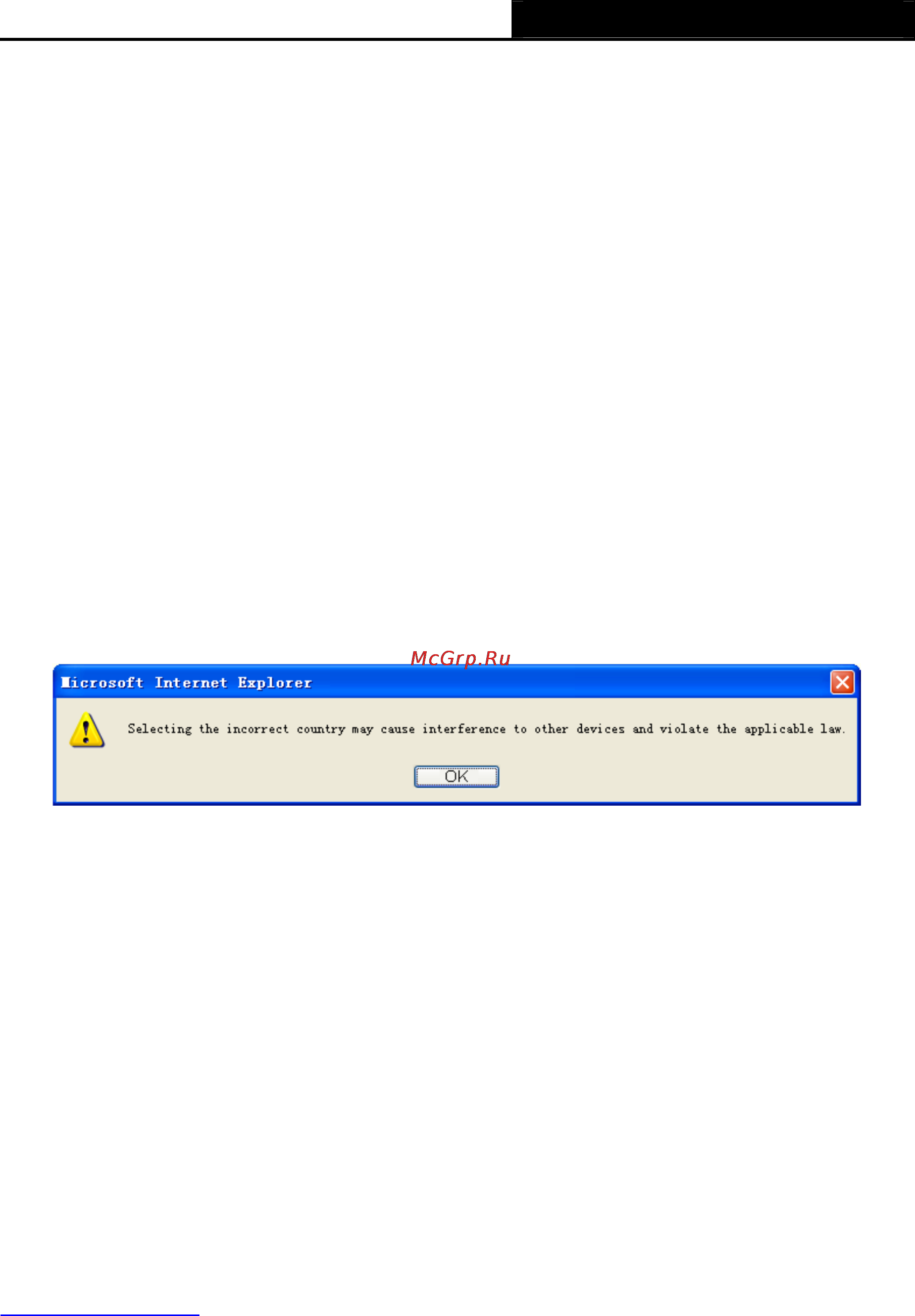

When you select your local region from the pull-down list, click the Save button, then the

Note Dialog appears. Click OK.

Note Dialog



Note:

Limited by local law regulations, version for North America does not have region selection option.

 Wireless Security Mode - You can select one of the following security options:

 Most Secure(WPA/WPA2-PSK) - Select WPA based on pre-shared passphrase.

 Secure（WEP）- Select WEP based on none pre-shared passphrase.

 No Security - The wireless security function is disabled. The wireless stations will

be able to connect the Device without encryption.

 Wireless Password - Enter an 8 to 63 character alphanumeric pass-phrase. For good

security it should be of enough length and should not be a commonly known phrase.

These settings are only for basic wireless parameters. For advanced settings, please refer to

Section 4.7 Wireless.

Click Survey button on the Wireless page as shown in Figure 3-21, and then AP List page will

appe

ar as shown in Figure 3-22. Find the SSID of the Access Point you wan

t to access, and click
