TL-WR743ND 150Mbps Wireless AP/Client Router
- 35 -

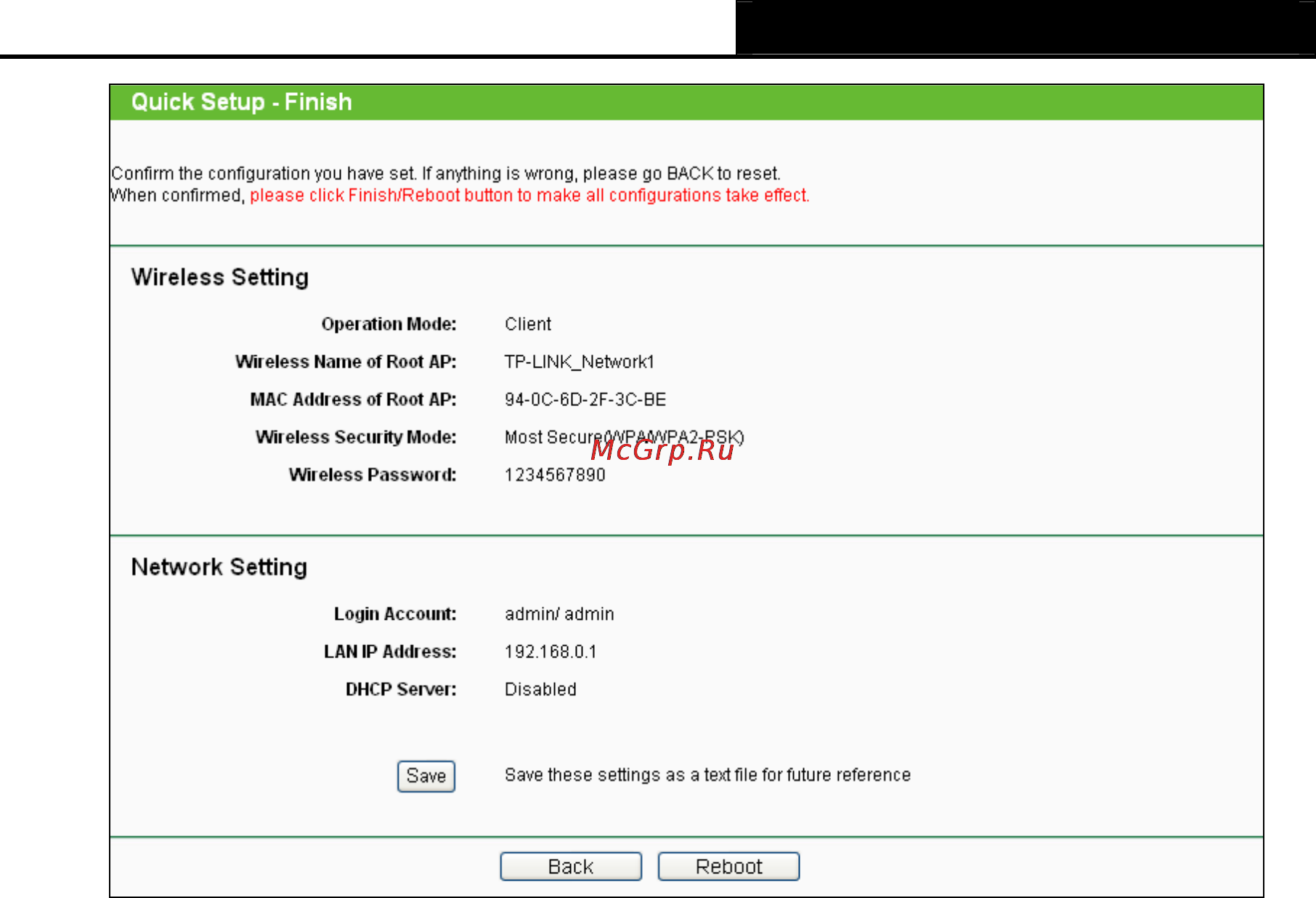

Figure 3-36 Quick Setup – Finish
Note:
You may click the Save button to save these settings as a text file for future reference.
