TL-MR3420 3G/3.75G Wireless N Router
-28-

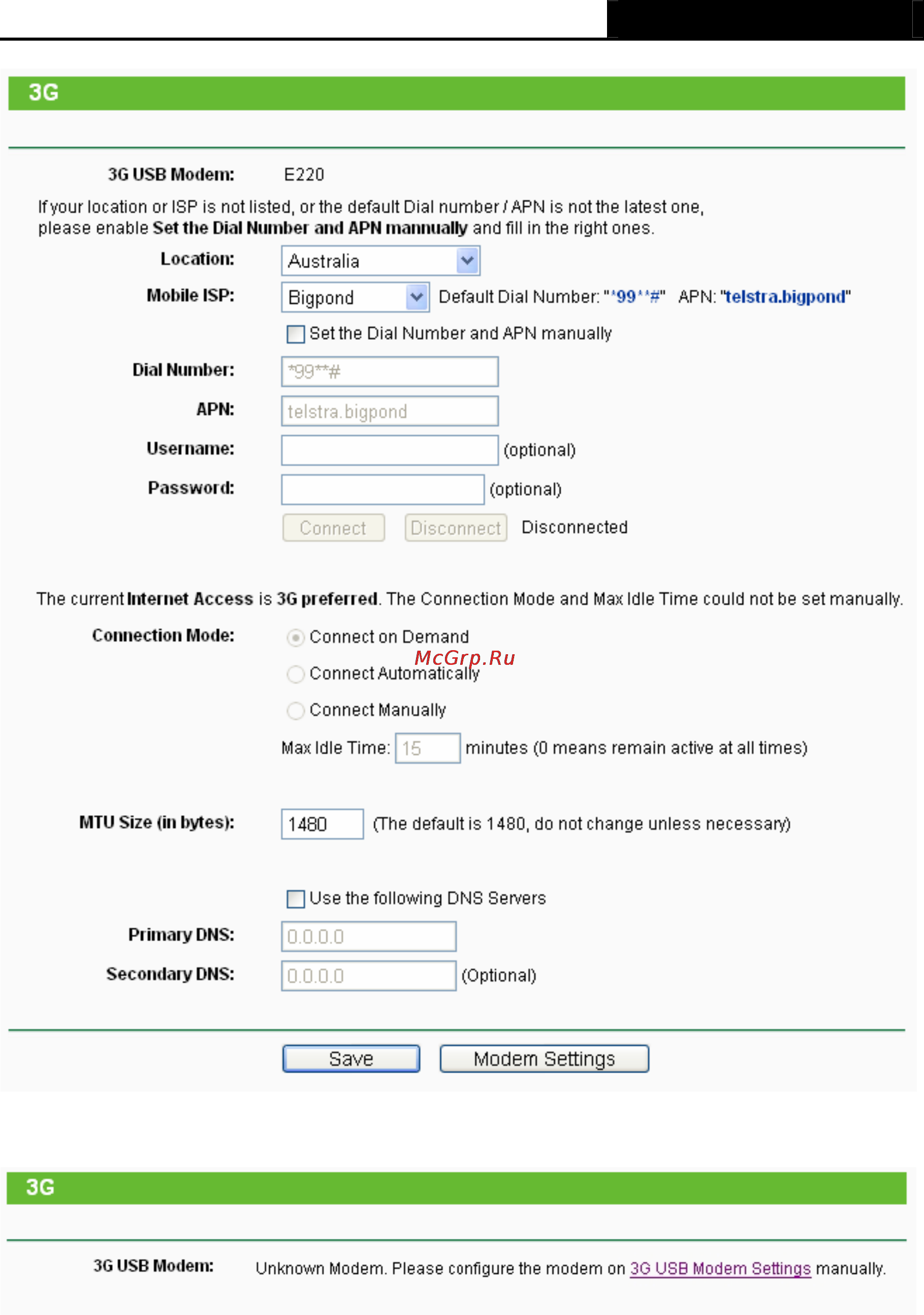

Figure 4-6 3G
Figure 4-7
¾ Location - Please select the location where you're enjoying the 3G card.
¾ Mobile ISP - Please select the ISP (Internet Service Provider) you apply to for 3G service.
The router will show the default Dial Number and APN of that ISP.
