TD-8816 ADSL2+ Modem Router User Guide

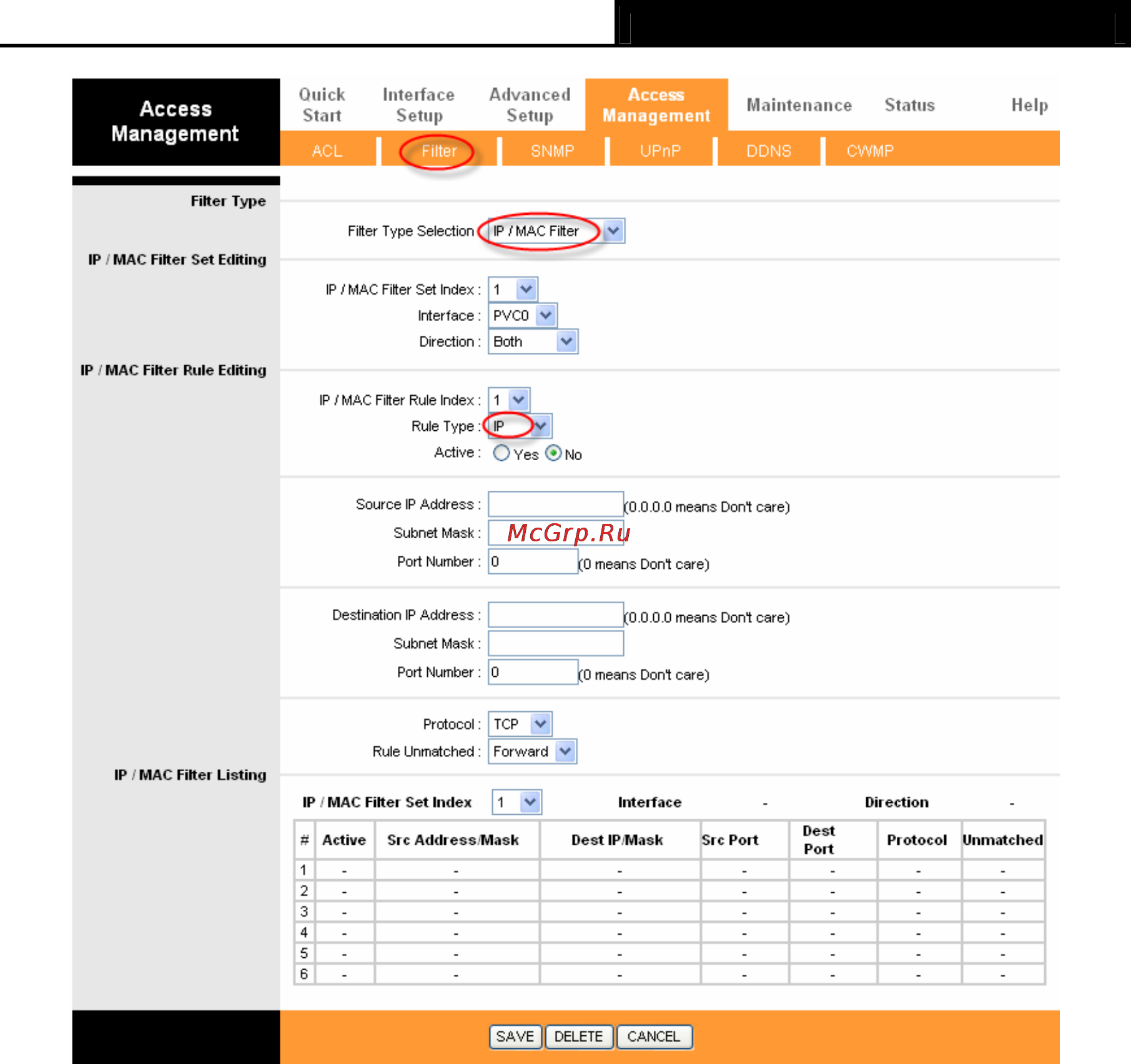

Figure 4-30

¾ Filter Type Selection: Select the filter type for the next configuration.

¾ IP/MAC Filter Set Index: Select the Set index for the IP Filter entry. This index can match

with six IP / MAC Filter Rule Indexes.

¾ Interface: Select the interface for the entry.

¾ Direction: Select the direction for this IP Filter rule. There are three filtering directions: Both,

Incoming, Outgoing.

)

Note:

Selecting Outgoing, the filtering feature only allows some IP traffic from LAN to access to some

specifically addresses. Selecting Incoming, the filtering feature only allows some IP traffic from

WAN to access to some specifically addresses; Selecting Both, the IP traffic from LAN and WAN

are both blocked. By default, all outgoing IP traffic from LAN is blocked, but some IP traffic can be

allowed by setting up filters.

¾ IP/MAC Filter Rule Index: Select the Rule index for the IP Filter entry.

)

Note:

You should set the IP/MAC Filter Set Index and IP/MAC Filter Rule Index together to appoint

the address (shown in the Filter List) for the IP Filter rule. For example, (1, 2), it means the rule will
