148

Choose the menu Network Security→IP-MAC Binding→Binding Table to load the following

page.

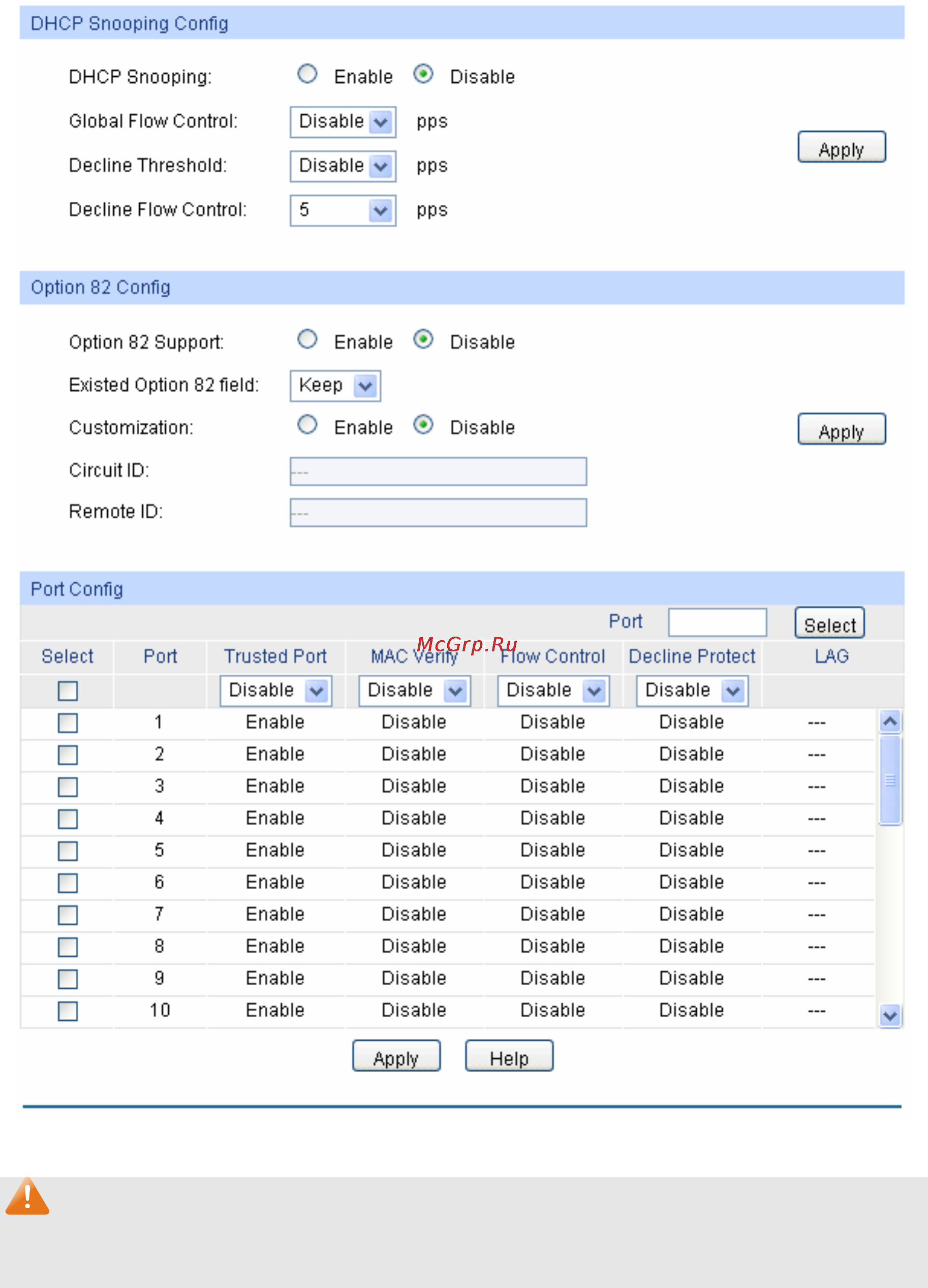

Figure 11-8 DHCP Snooping

Note:

If you want to enable the DHCP Snooping feature for the member port of LAG, please ensure the

parameters of all the member ports are the same.

The following entries are displayed on this screen:

¾ DHCP Snooping Config
