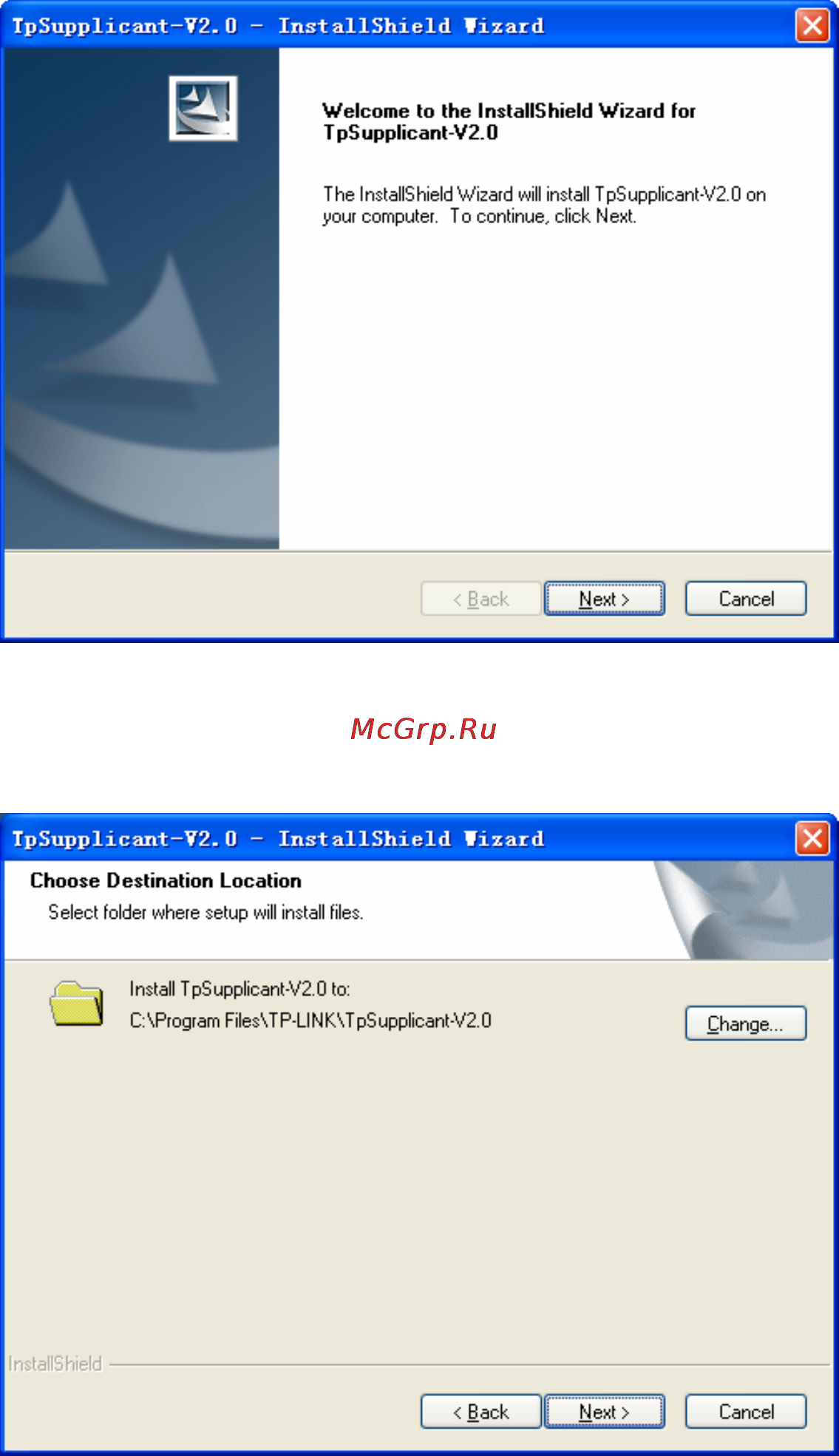

Figure D-3 Welcome to the InstallShield Wizard
4) To continue, choose the destination location for the installation files and click Next on the
following screen.
Figure D-4 Choose Destination Location
By default, the installation files are saved on the Program Files folder of system disk. Click the
Change button to modify the destination location proper to your need.
5) Till now, The Wizard is ready to begin the installation. Click Install to start the installation on
the following screen.
