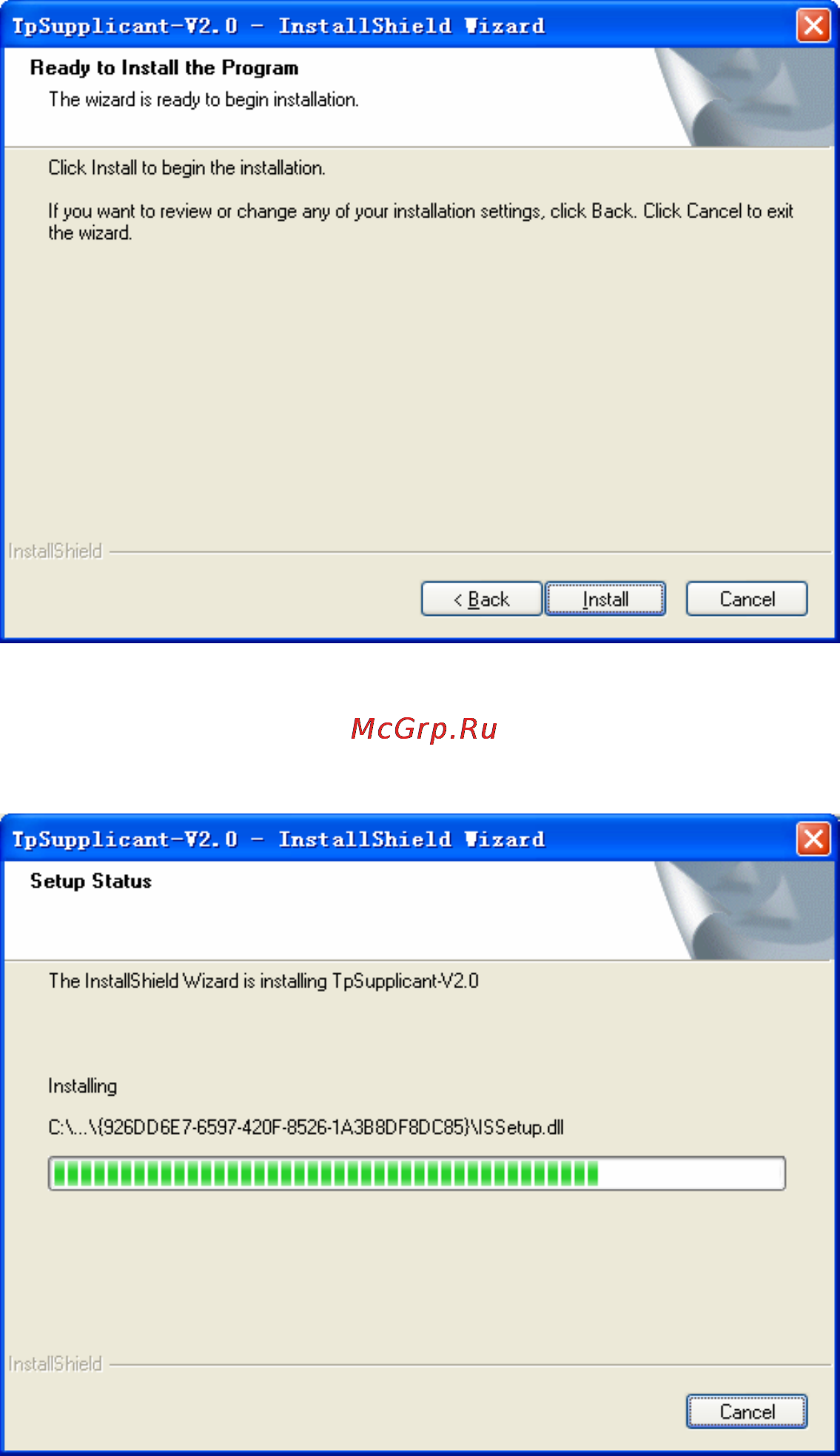

Figure C-5 Install the Program

6. The InstallShield Wizard is installing TpSupplicant-V2.0 shown as the following screen.

Please wait.

Figure C-6 Setup Status

7. On the following screen, click Finish to complete the installation.

218
