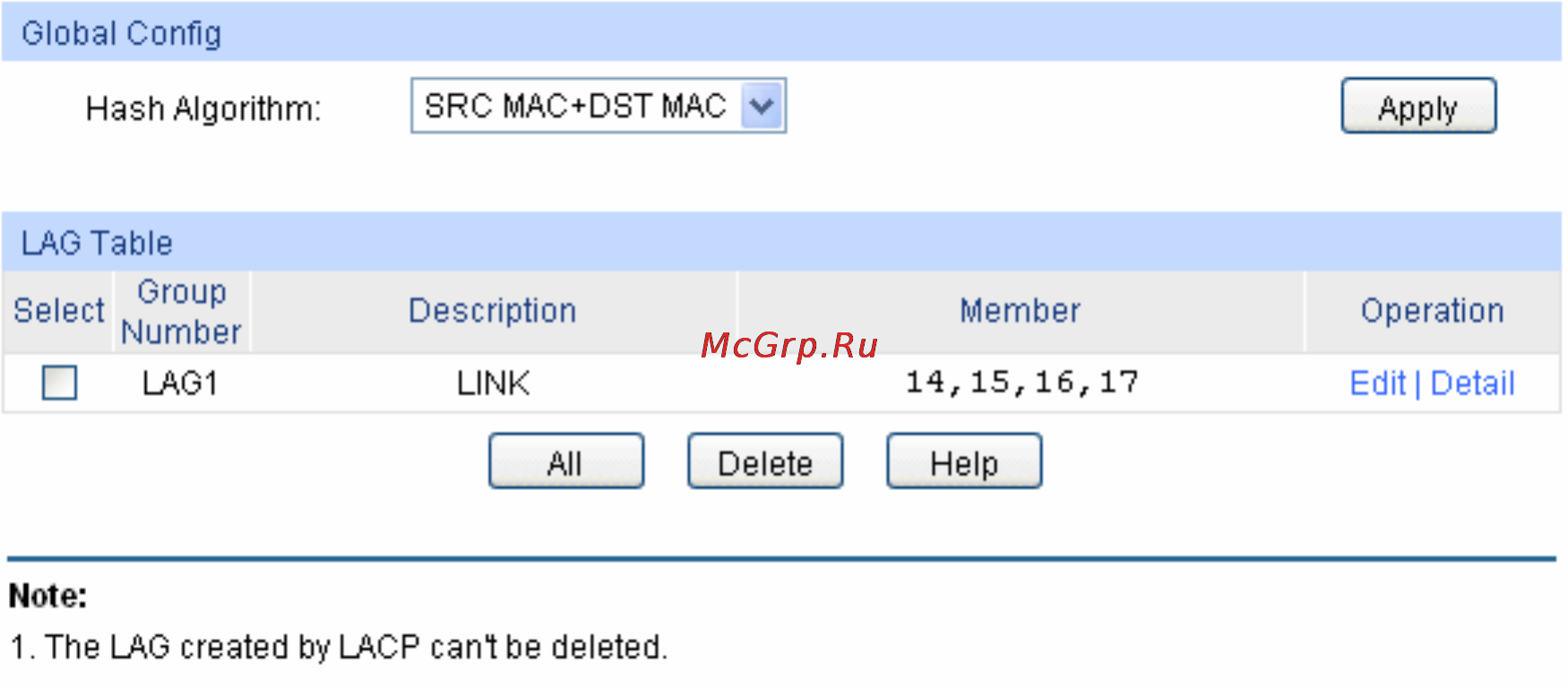

Figure 5-6 LAG Table

The following entries are displayed on this screen:

 Global Config

Hash Algorithm: Select the applied scope of Aggregate Arithmetic, which

results in choosing a port to transfer the packets.

 SRC MAC + DST MAC: When this option is selected,

the Aggregate Arithmetic will apply to the source and

destination MAC addresses of the packets.

 SRC IP + DST IP: When this option is selected, the

Aggregate Arithmetic will apply to the source and

destination IP addresses of the packets.

 LAG Table

Select: Select the desired LAG. It is multi-optional.

Group Number: Displays the LAG number here.

Description: Displays the description of LAG.

Member: Displays the LAG member.

Operation: Allows you to view or modify the information for each LAG.

 Edit: Click to modify the settings of the LAG.

 Detail: Click to get the information of the LAG.

Click the Detail button for the detailed information of your selected LAG.
