TL-PA210 AV200 Mini Powerline Adapter

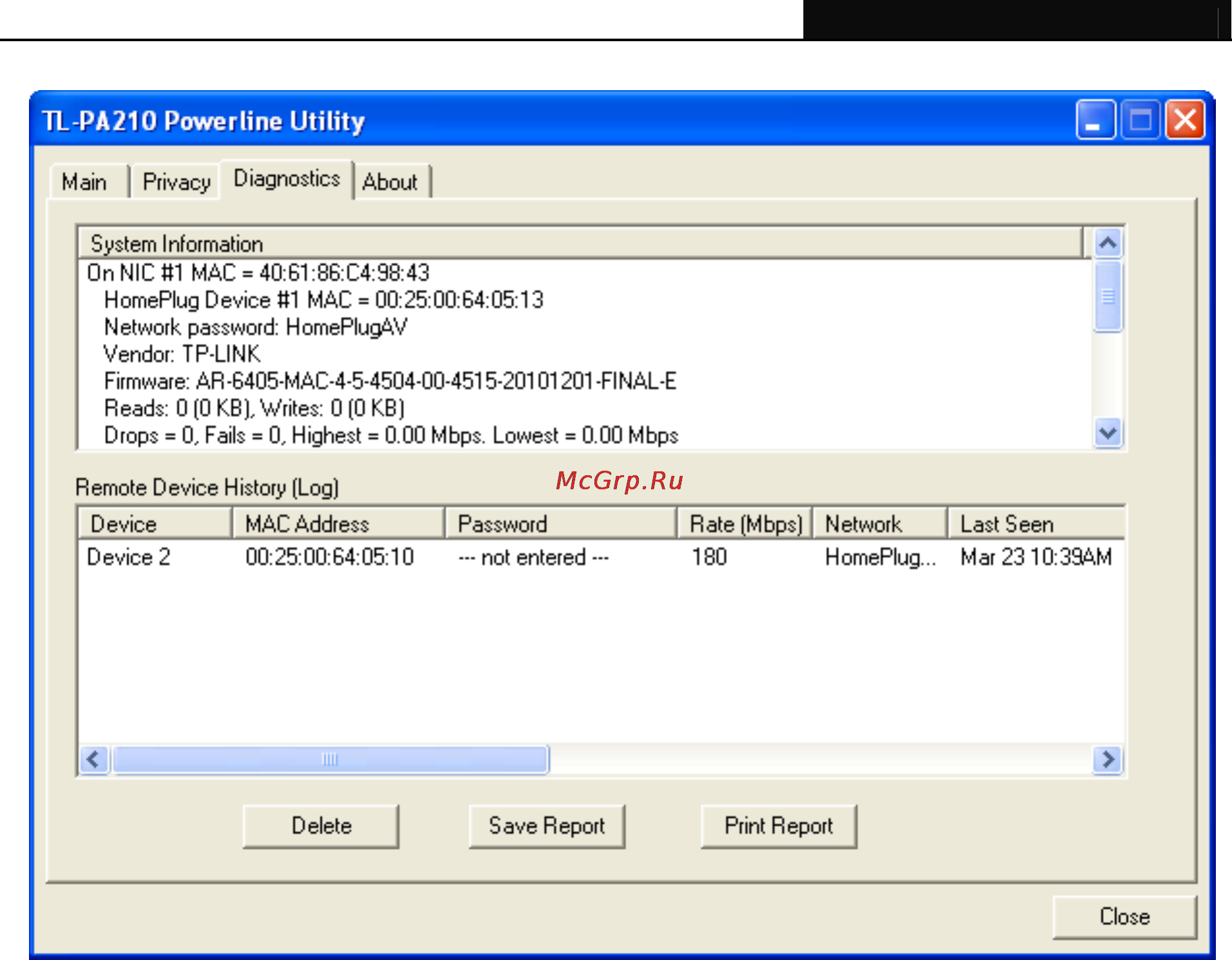

The Diagnostics information displayed can be saved to a text file. One can email the saved text file to

the local supplier when there’s technical support required or print the saved text file as reference during

a technical support conference.

The Upper Panel shows the technical data concerning software and hardware present on the host

computer which were used to communicate over Powerline Adapter on the Powerline network. It may

include the following:

¾ Operating System Platform/Version

¾ Host Network Name

¾ User Name

¾ MAC Address of all NICs (Network interface card) connected to the host

¾ Identify versions of all Driver DLLs and Libraries used (NDIS) and optionally

¾ MAC addresses of all devices connected locally to the host

Click the “Delete” tab to delete the Powerline Adapter device which is no longer part of the network.

The Lower Panel contains a history of all remote Powerline Adapter devices seen on the computer over

a certain period of time. All devices that were on the powerline network are listed here along with a few

other parameters. Powerline Adapter devices that are active on the current logical network will show a

transfer rate in the Rate column; devices on other networks, or devices that may no longer exist are

shown with a “?” in the Rate column. The following remote Powerline Adapter devices information is

available from the diagnostics screen:

¾ Device Name

¾ Device MAC Address

¾ Device Password
