TL-WPA281/TL-WPA271 Wireless N Powerline Extender
10

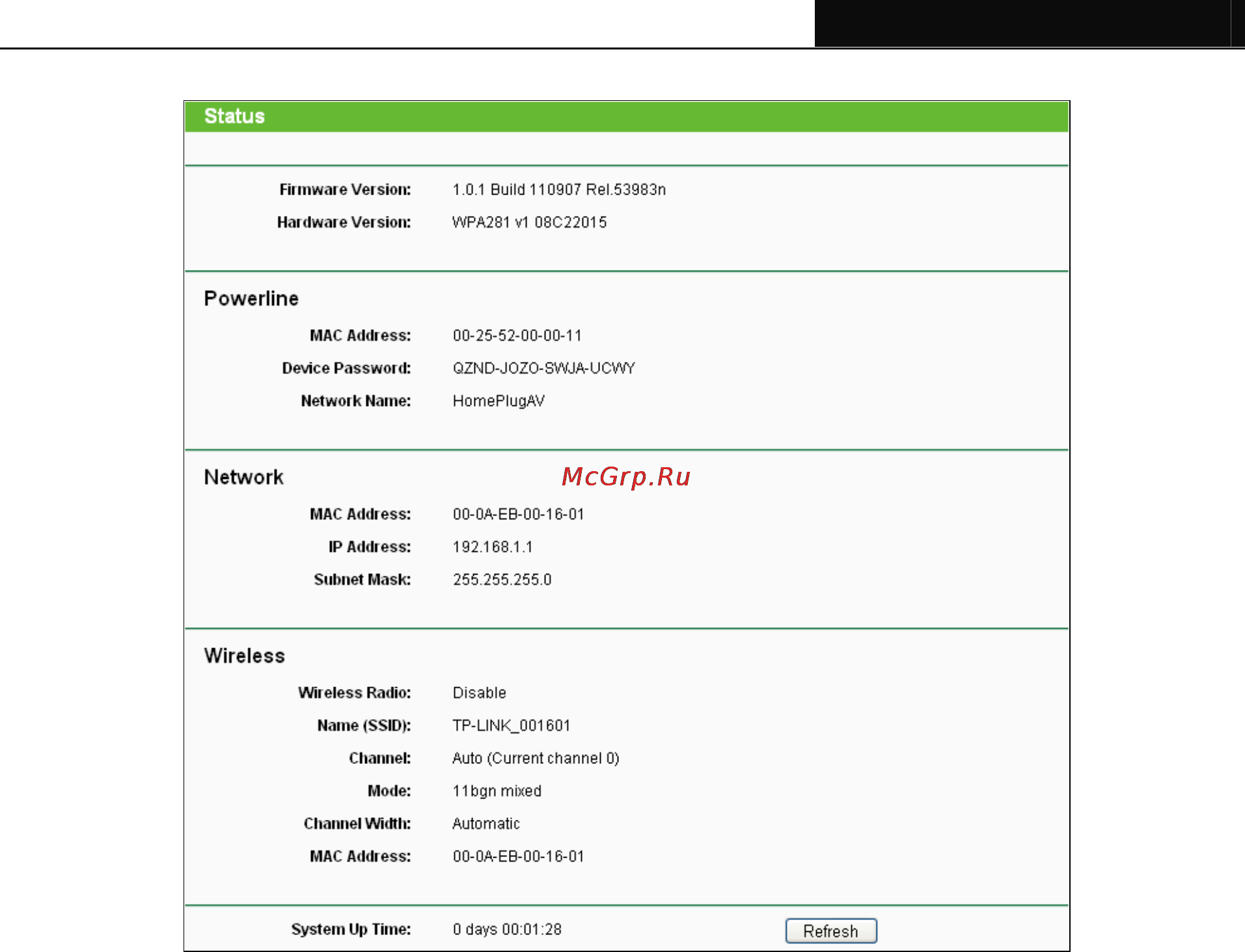

Figure 3-4 Status
¾ Firmware Version - This field displays the current firmware version of the Powerline Extender.
¾ Hardware Version - This field displays the current hardware version of the Powerline Extender.
¾ Powerline - This field displays the current settings or information for powerline, including the MAC
address, Device Password and Network Name which can be configured on the Powerline →
Network Settings page.
z MAC Address - The physical address of the Powerline Extender, as seen from powerline.
z Device Password - The security ID that restricts access to critical device functions.
z Network Name - The name that identifies a logical network.
¾ Network - The following parameters apply to the Ethernet port of the Powerline Extender. You can
configure them on the Network page.
z MAC Address - The physical address of the Powerline Extender's Ethernet port.
z IP Address - The IP address of the Powerline Extender.
z Subnet Mask - The subnet mask associated with IP address.
¾ Wireless - This field displays the current settings or information for Wireless. They can be
configured on the Wireless → Wireless Settings page.
