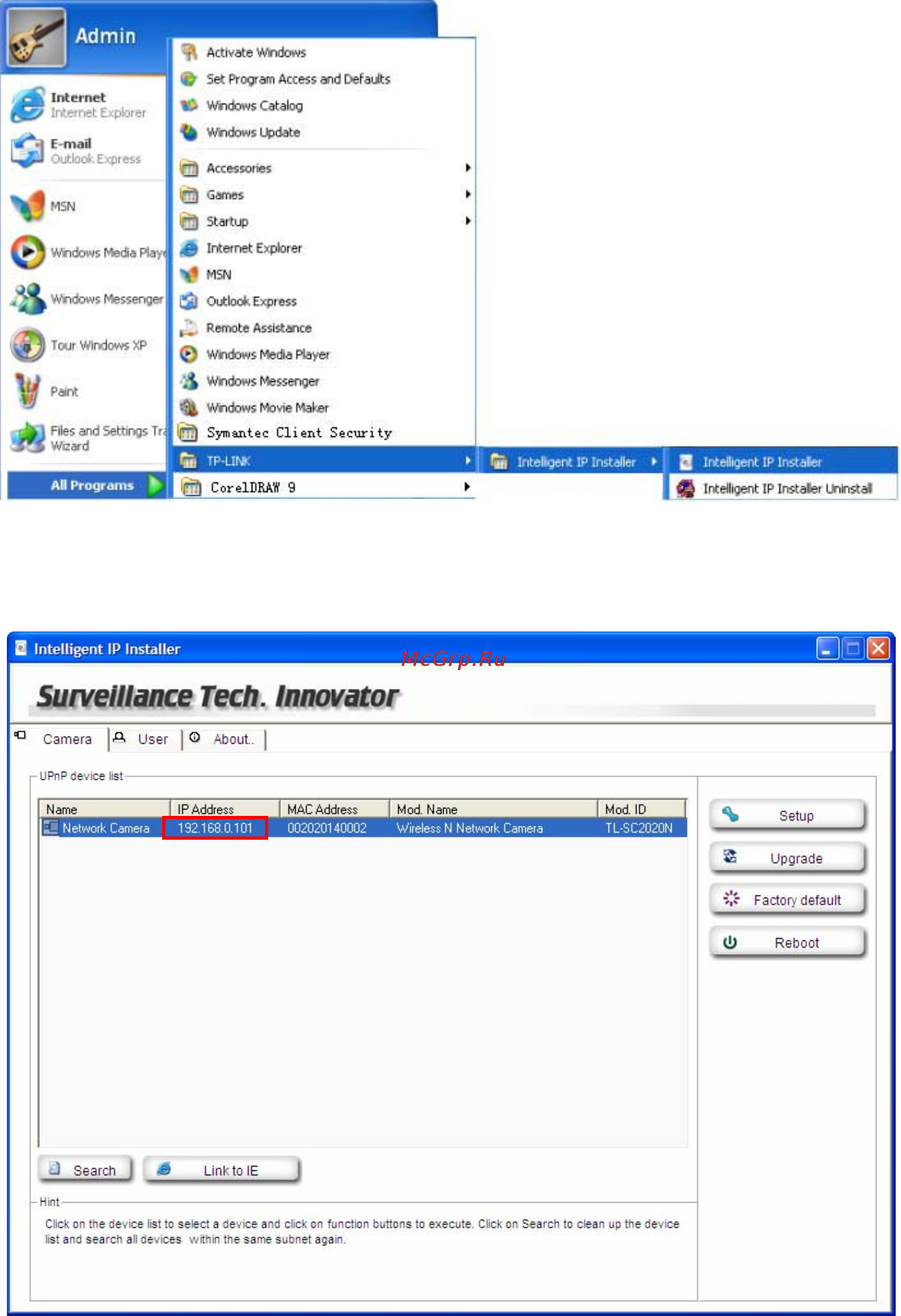

3. After the installation is finished, click Start > All Programs > TP-LINK >Intelligent IP Installer to

start using the program.

Figure 3-3

4. The following screen will then display. Click the Search button to search Network Cameras in the

network; it displays Network Cameras information including IP Address.

Figure 3-
