Connecting to a TV

Connect your PlayStation®2 console to the Euro-AV connector (SCART)

on the TV using the Euro-AV connector plug and AV Cable making sure

you match the colour-coded plugs of the AV Cable to the matching jacks

of the connector plug.

After connecting

Set your TV to the appropriate video input mode. Refer to the Instruction

Manual of your TV.

Picture quality varies depending on the type of cable used. Use the

information below to determine the best connection method.

If you use a cable other than the supplied AV cable, refer to the instructions

supplied with the cable.

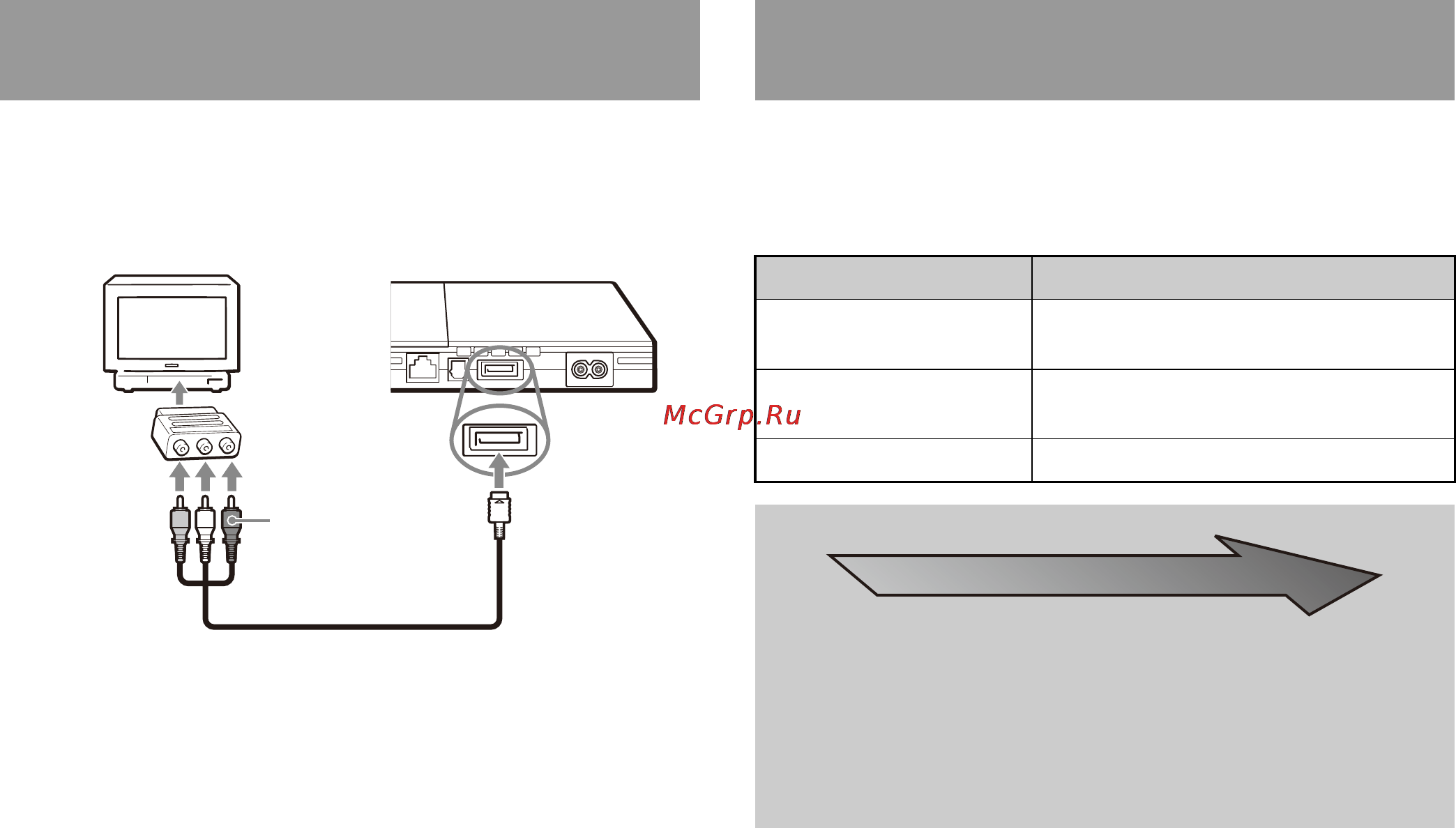

Connecting to a TV with a Euro-AV connector

using the Euro-AV connector plug

To Euro-AV

connector

To AV MULTI

OUT connector

AV Cable

Console rear

Euro-AV

connector plug

When using a cable other than the supplied AV

cable

TV Cable type

A TV with component video

input connectors

Component AV Cable (SCPH-10490)

A TV with Euro-AV (SCART)

connector

Euro-AV Cable (SCPH-10142)

A TV with S VIDEO inputs S VIDEO Cable (SCPH-10480)

Picture quality scale

High quality

x AV Cable (supplied) x S VIDEO Cable x Component AV Cable

This scale is intended only as a reference. Depending on the product or

condition of your TV, the picture quality may be different.

When using the Euro-AV Cable, picture quality may vary depending on your

TV's AV connection.

For optimum picture quality, connect your Euro-AV cable to an RGB-

compatible socket on your TV. Refer to the instructions supplied with your TV

for details.
