TL-WN322G Wireless G USB Adapter

¾ WPA/WPA2: Wi-Fi Protected Access

¾ WPA/WPA2 Passphrase: Wi-Fi Protected Access Passphrase

¾ 802.1x: Enables 802.1x security.

¾ Pre-Shared Key (Static WEP): Enables the use of shared keys that are defined on both

the access point and the station. To define shared encryption keys, choose the Shared Key

radio button and click Configure to fill in the Define Shared Keys.

¾ None: No security (not recommended).

For Example:

Suppose your using router’s SSID is TP-LINK and it adopts WPA/WPA2 Passphrase encryption

with the key “123456ABCDEF”. Take the following steps to set the security.

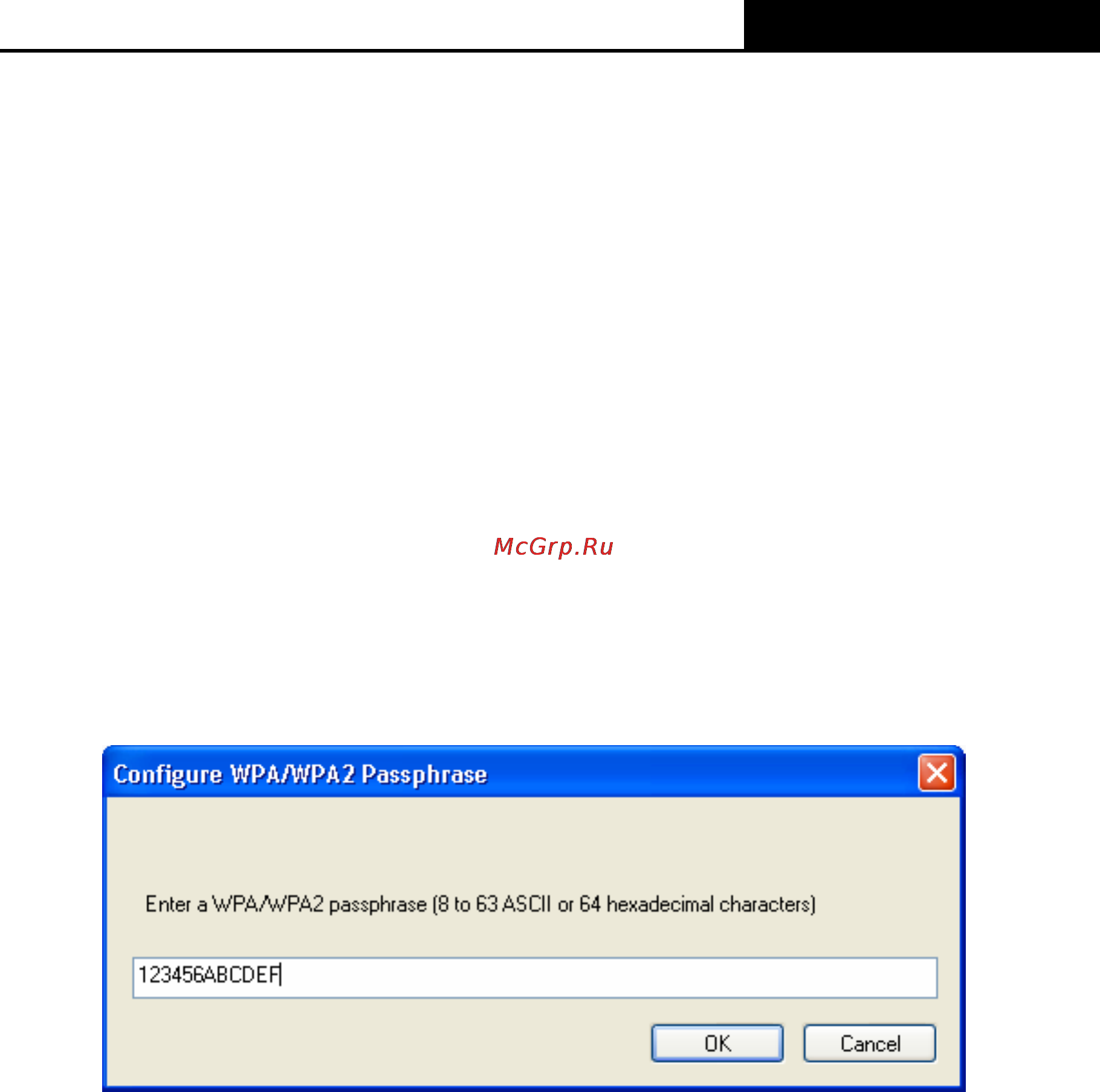

Step 1 Select the radio button before WPA/WPA2 Passphrase and click Configure… button in

Figure 3‑4 above. Then the following figure will appear.

Figure 3-5

Step 2 Enter the WPA passphrase 123456ABCDEF in the blank filed.

Step 3 Click OK to complete the wireless security settings.

)

Note:

Select different

Security Options

, the configurations are different; you can select the

appropriate security option and configure the exact key as your need.

3. Edit the Advanced tab

This screen below allows you to make advanced configuration for the profile.
