¾ AC power socket:

Please use the power adapter which is supplied with the TL-WR541G

54Mbps Wireless Router only, the use of a different adapter may result

in product damage.

¾ LAN 1,2,3,4:

Four 10/100Mbps RJ45 LAN ports for connecting the router to the local

PC(s)

¾ WAN:

This WAN port is where you will connect the cable/DSL Modem, or

Ethernet

¾ Reset button:

There are two ways to reset the router's factory defaults:

1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the

router's Web-based Utility.

2) Use the Factory Default Reset button: With the router powered on, use a pin to press and

hold the Reset button(about 5 seconds) until the SYS LED becomes quick-flash from

slow-flash. And then release the button and wait the router to reboot to its factory default

settings.

)

Note: Ensure the router is powered on before it restarts completely.

¾ Wireless antenna

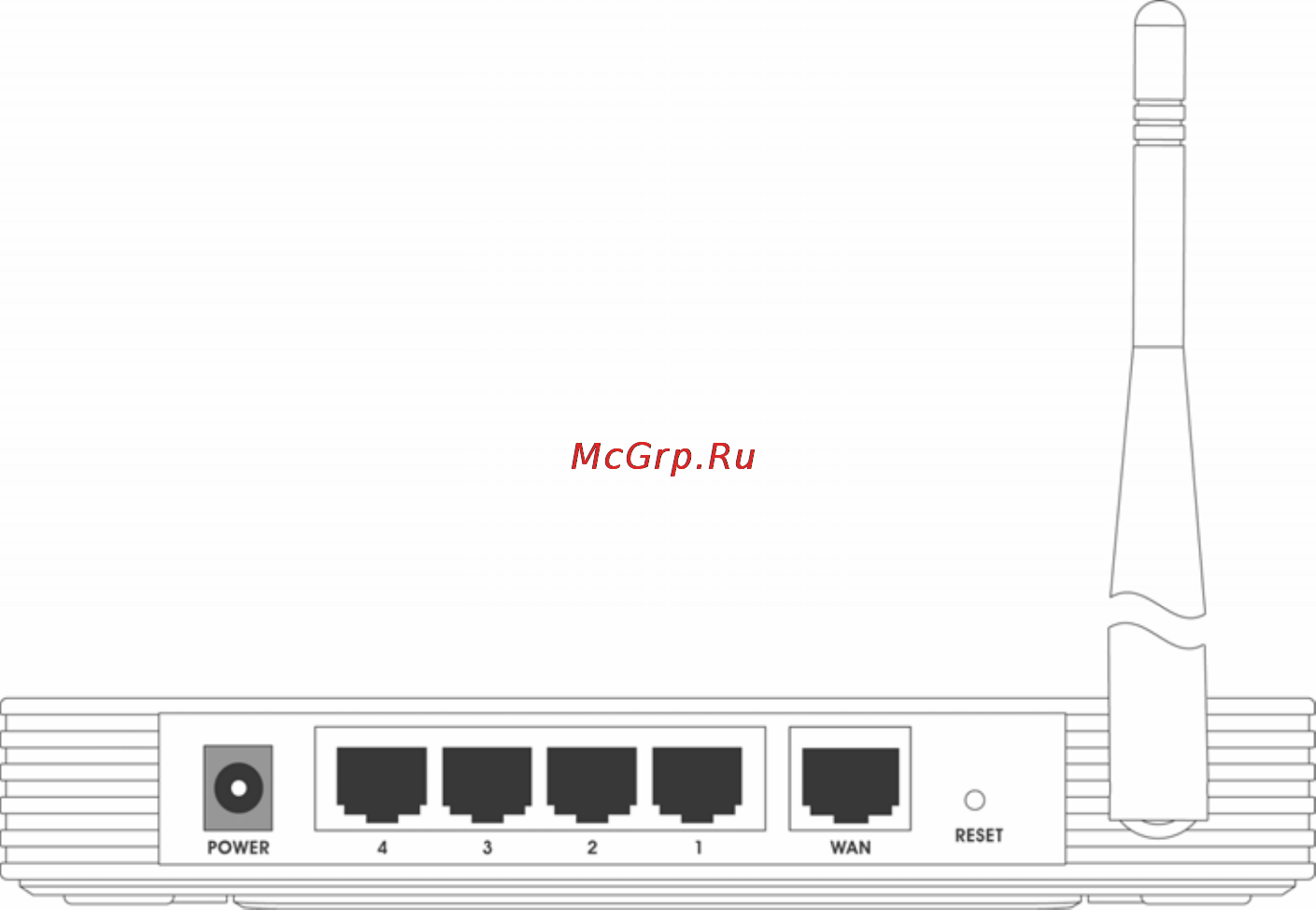

Figure 1-2 Rear Panel sketch
