![D-Link DES-3224 Инструкция по эксплуатации онлайн [58/75] 39813](/views2/1043060/page58/bg3a.png)
10/100 Auto Negotiation Switch User’s Guide
Managing the DES-3224
48

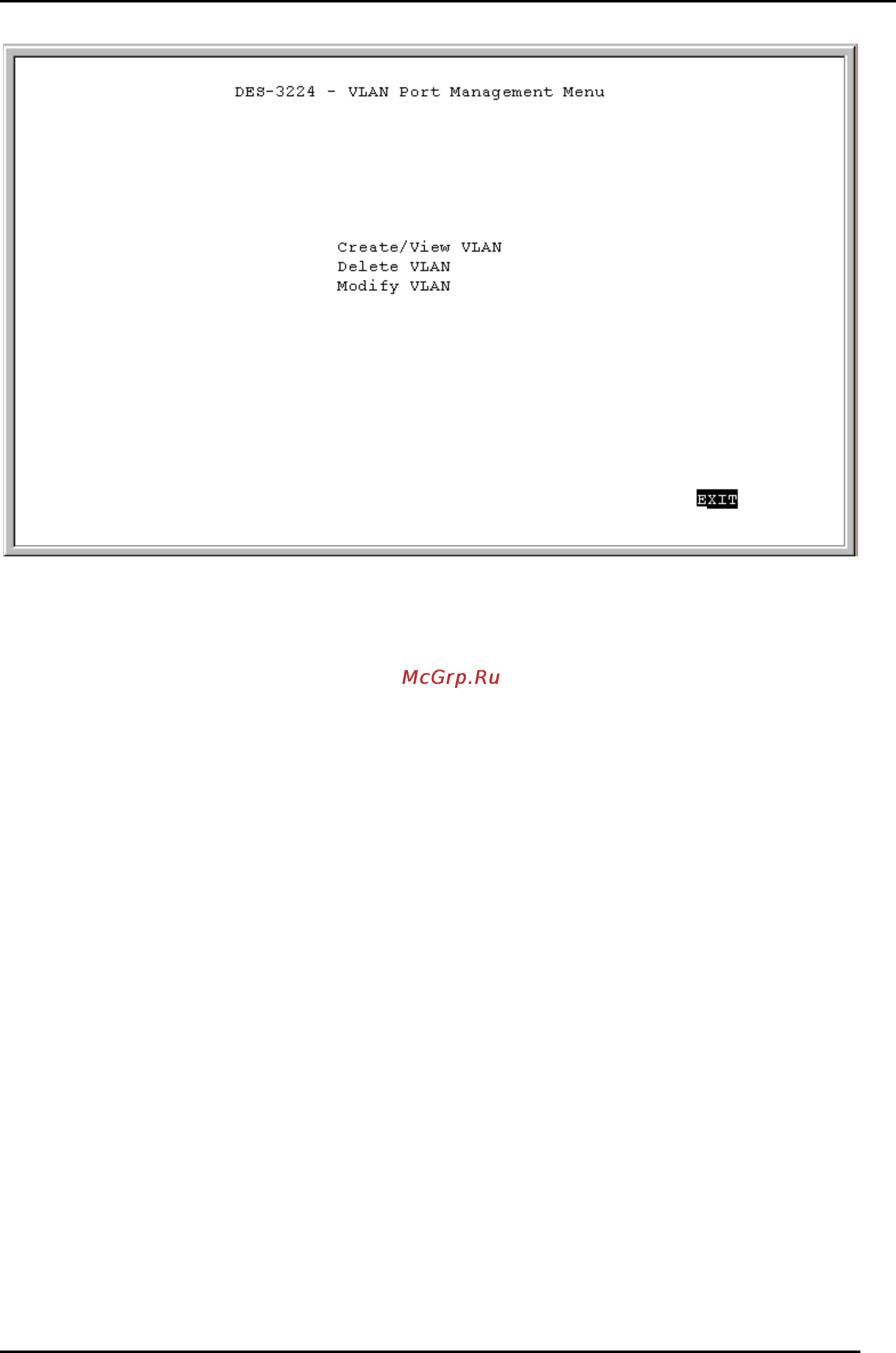

Figure 26: VLAN Port Management menu
Follow these steps to create, delete and modify VLAN:
1.
Select the appropriate option.
2.
Press Enter.
